About This Product

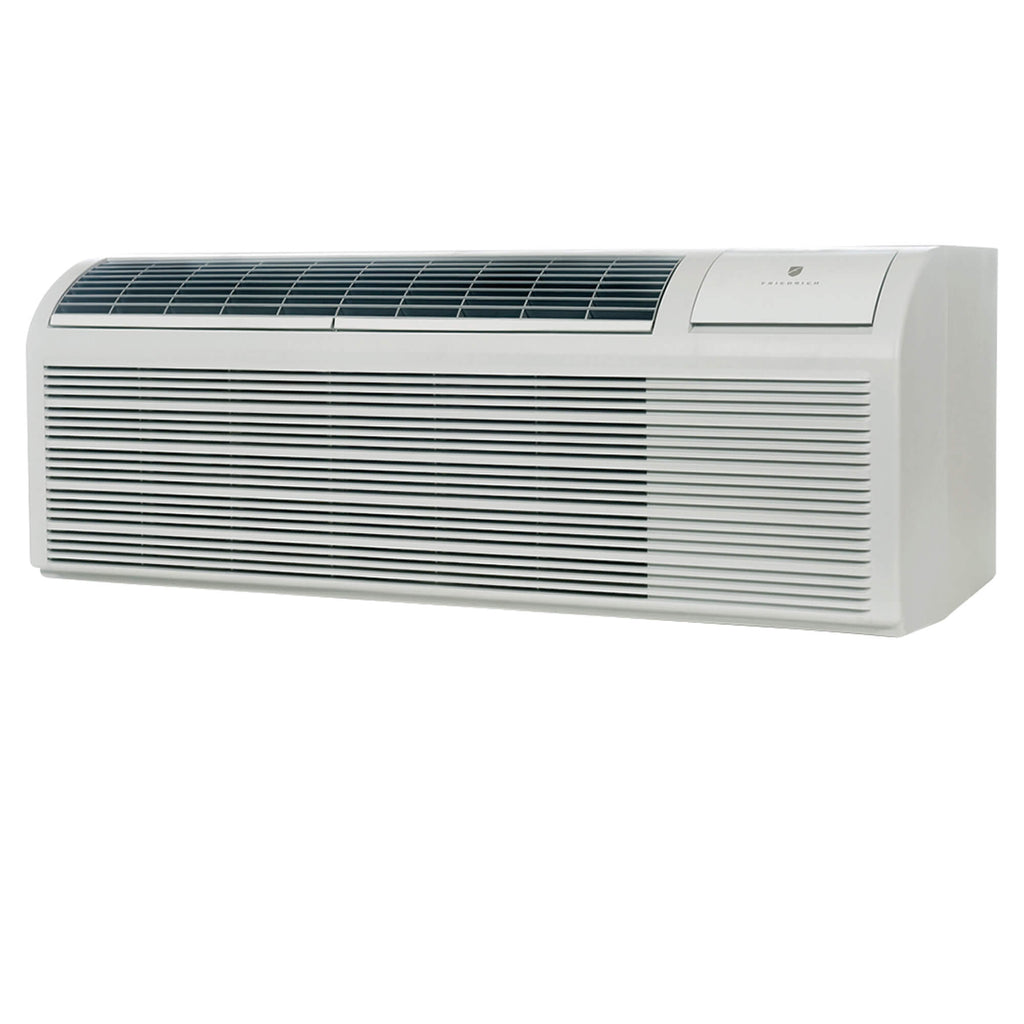

Friedrich ZoneAire® Select PTAC Heat Pump 7,000 BTU, 208/230V, 15 Amp - PZH07K2SC
SKU: PZH07K2SC
Dimensions: 16 H x 42 W x 21.5 D
Cooling BTU: 7,000 BTU
Voltage: 230/208 Volt
About This Product
The Friedrich ZoneAire® Select PZH07K2SC is a 7,000 BTU packaged terminal air conditioner with heat pump heating and 2.5 KW electric heat backup, built for hotels, apartments, senior living and other commercial spaces. It runs on 208/230 volt power at 15 amps with a NEMA 6-15 plug and fits a standard 42" x 16" PTAC wall sleeve.
- 7,000 BTU cooling capacity
- Heat pump heating with electric heat backup
- 2.5 KW heater, 208/230 volts, 15 amp
- NEMA 6-15 power cord included
- Electronic controls with easy-to-read LED display
- R-32 refrigerant
- Two permanently lubricated fan motors and rotary compressor for quiet operation
- Seacoast protection, freeze protection and automatic restart
- Exceptional value with reliable, efficient performance
- Aluminum endplates for coil corrosion protection
- Fits standard 42" x 16" wall sleeve (sleeve and grille sold separately)
- 2-year full parts & labor warranty, 5-year limited sealed-system warranty
Specs & Details
Dimensions: 16 H x 42 W x 21.5 D
GENERAL
| Brand | Friedrich |
| Series | ZoneAire® Select |
| Model Number | PZH07K2SC |
| Unit Type | Packaged Terminal Heat Pump (PTHP) |
| Condition | New |
| Controls | Electronic |
| Refrigerant Type | R-32 |
| Energy Star Certified | No |
COOLING
| Nominal Cooling Capacity | 7,000 BTU |
| Actual Cooling BTUs @ 208V | 6800 |
| Actual Cooling BTUs @ 230V | 7200 |
| Energy Efficiency Rating (EER) | 11.9 |
| Maximum Cooling Watts | 605 |
| Maximum Cooling Amps | 2.74 |
| CFM (Cool/Wet Coil) – High | 424 |
| CFM (Cool/Wet Coil) – Low | 365 |
HEATING
| Heat Type | Heat Pump |
| Heater Size (KW) | 2.5 KW |
| Actual Heating BTUs Heat Pump @ 208V | 5800 |
| Actual Heating BTUs Heat Pump @ 230V | 6000 |
| COP Rating | 3.5 |
ELECTRICAL
| Voltage | 208/230 |
| Amperage | 15 amp |
| Plug Type | NEMA 6-15 |
| Cord Included | Yes |
FEATURES
| Number of Fan Motors | 2 |
| Fan Speeds | 2 |
| Automatic Restart | Yes |
| Seacoast Protection | Yes |
| Freeze Protection | Yes |
| Wi-Fi Compatible | No |
| Remote Control | No |
| ADA Compliant | No |
WEIGHTS & DIMENSIONS
| Width | 42 in |
| Height | 16 in |
| Depth | 21.5 in |
| Net Weight | 93 lb |
| Fits Standard 42″ x 16″ Sleeve | Yes |
WHAT'S INCLUDED
| Front Cover Included | Yes |
| Sleeve Included | No |
| Exterior Grille Included | No |
WARRANTY
| Parts & Labor | 2-year full warranty |
| Sealed System | 5-year limited warranty |
