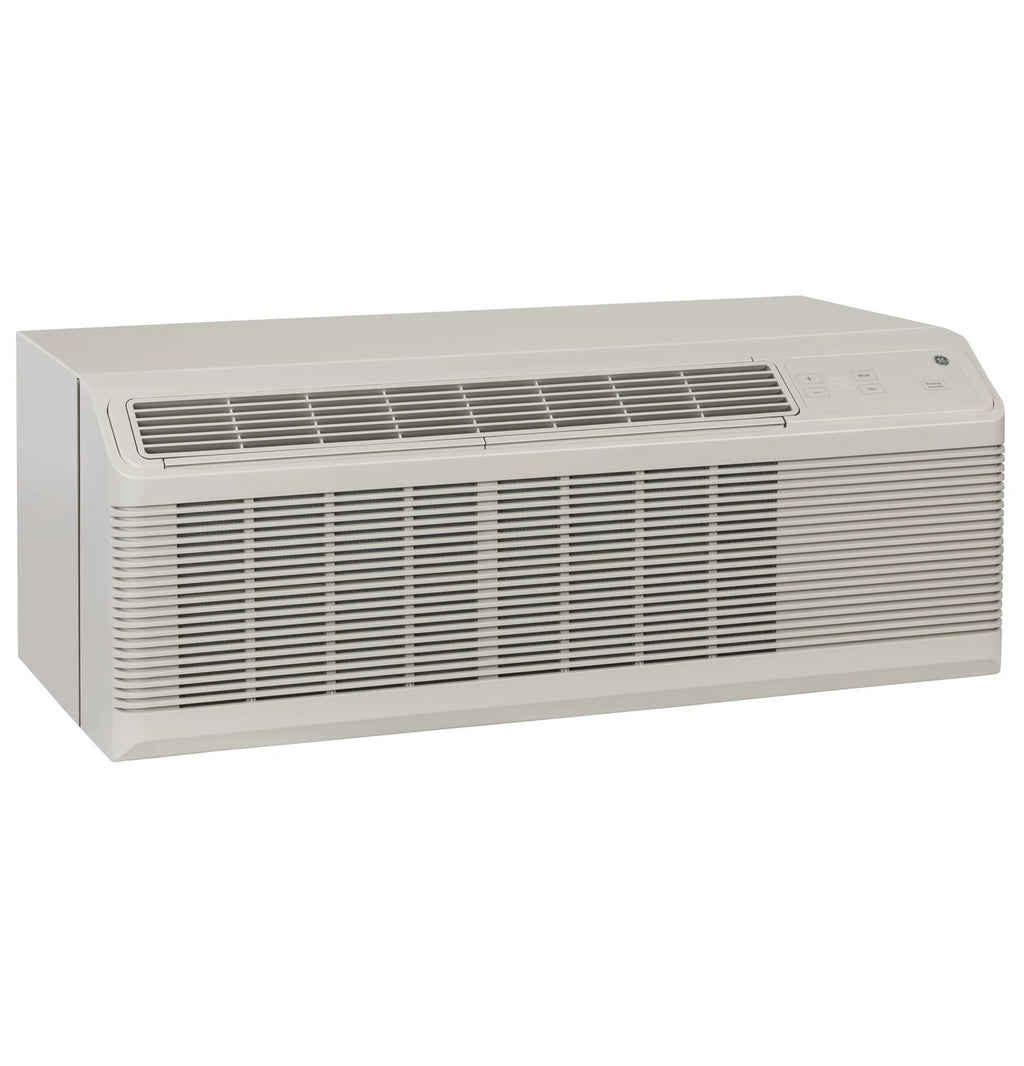

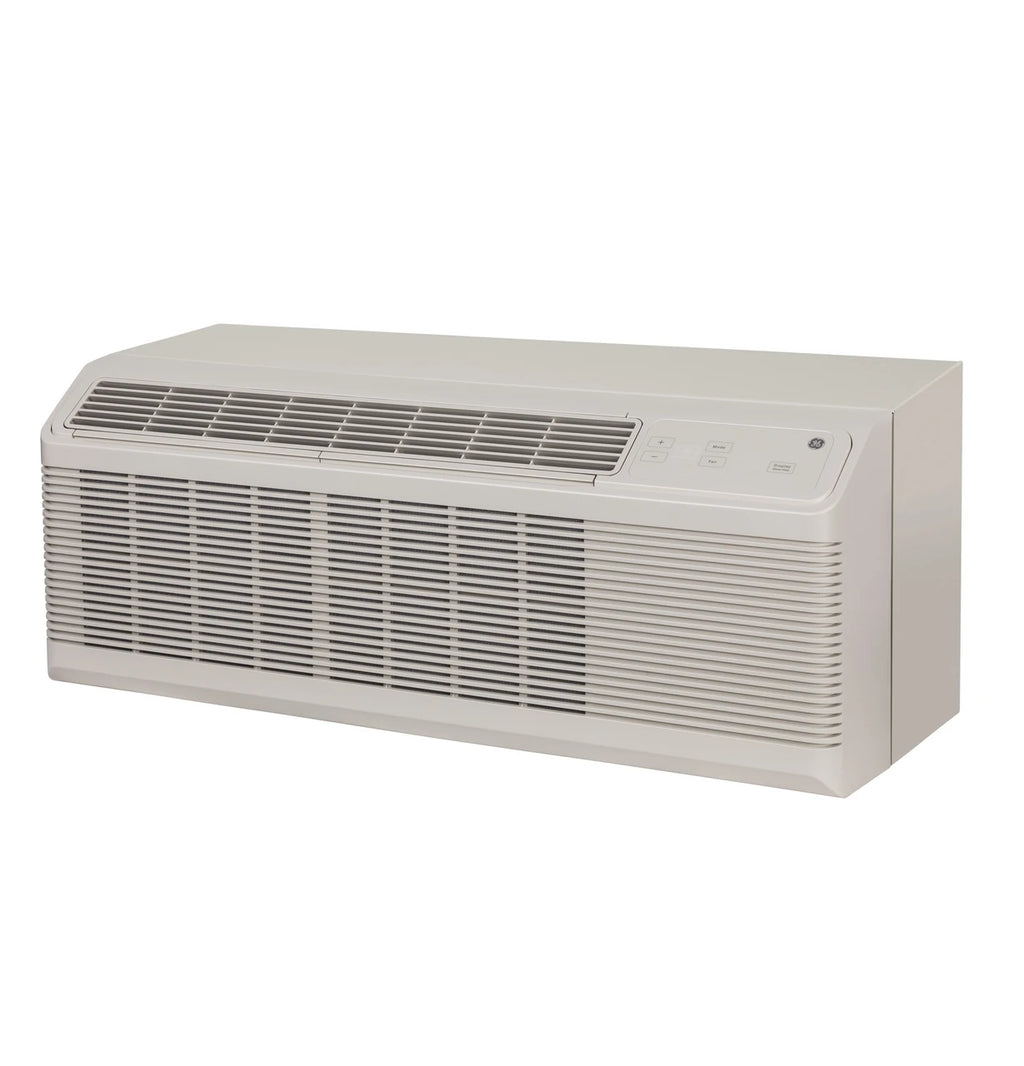

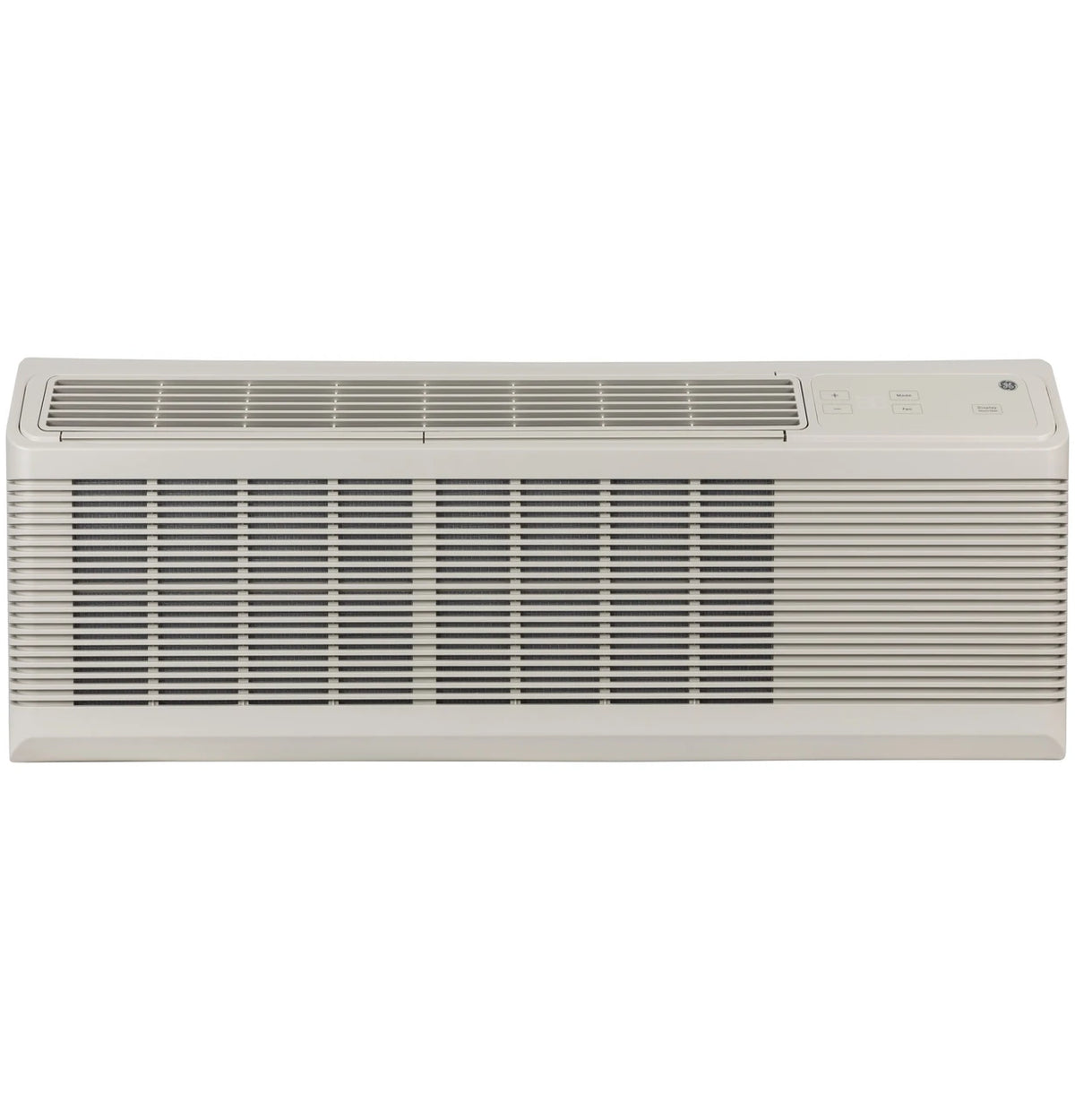

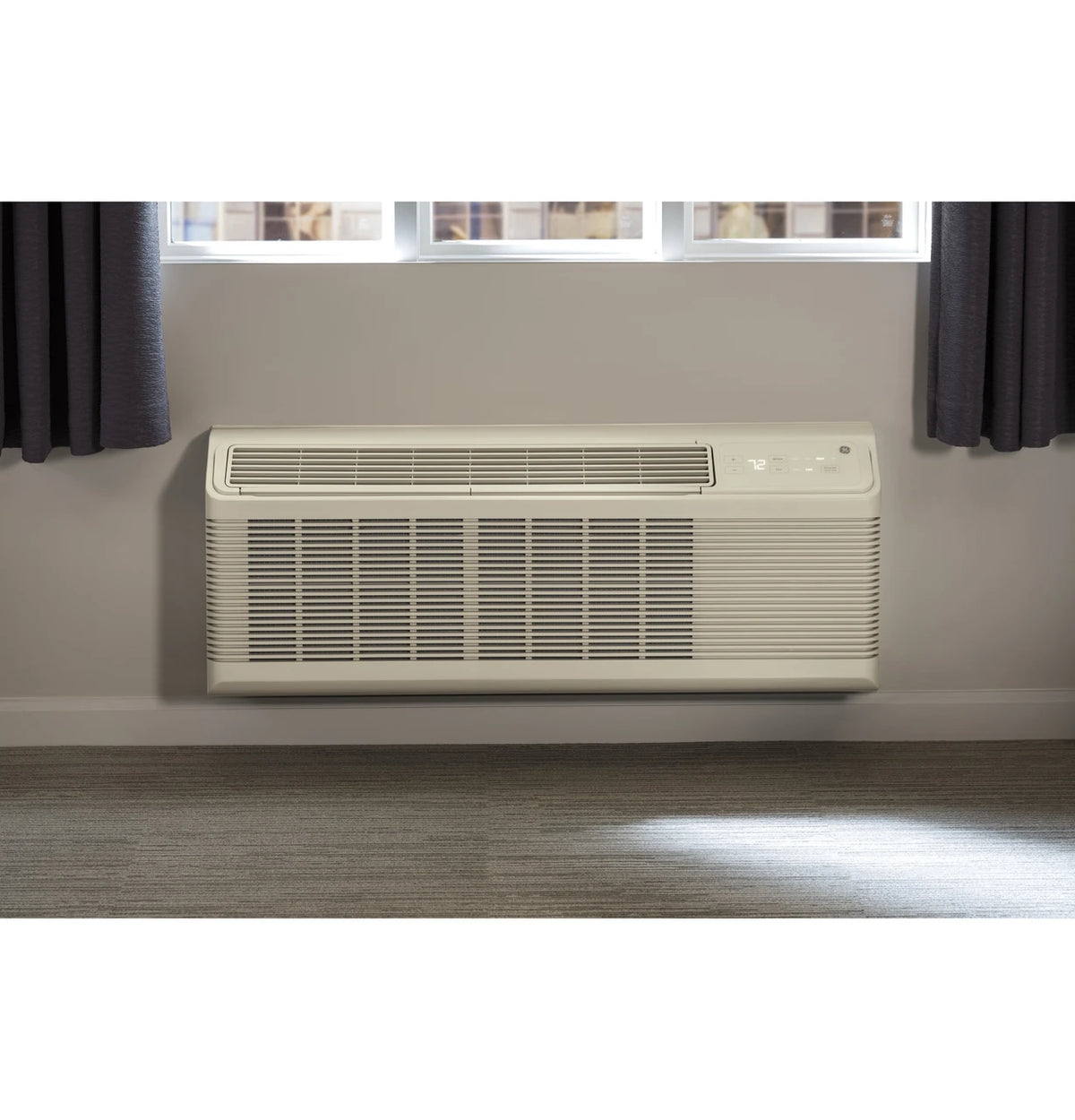

GE Zoneline® Dry Air 25 Cooling and Electric Heat Unit with Corrosion Protection 9,000 BTU, 230/208 Volt
SKU: AZ45E09DAP
Dimensions: 16 H x 42 W x 20.8125 D
Color: Gray
Cooling BTU: 9,000 BTU
Voltage: 230/208 Volt
Images are for reference only. Please verify the model number and written specifications on your quote or order confirmation. Ordering information
About This Product
- Energy efficiency
12.1/12.1 EER
-
Quiet operation

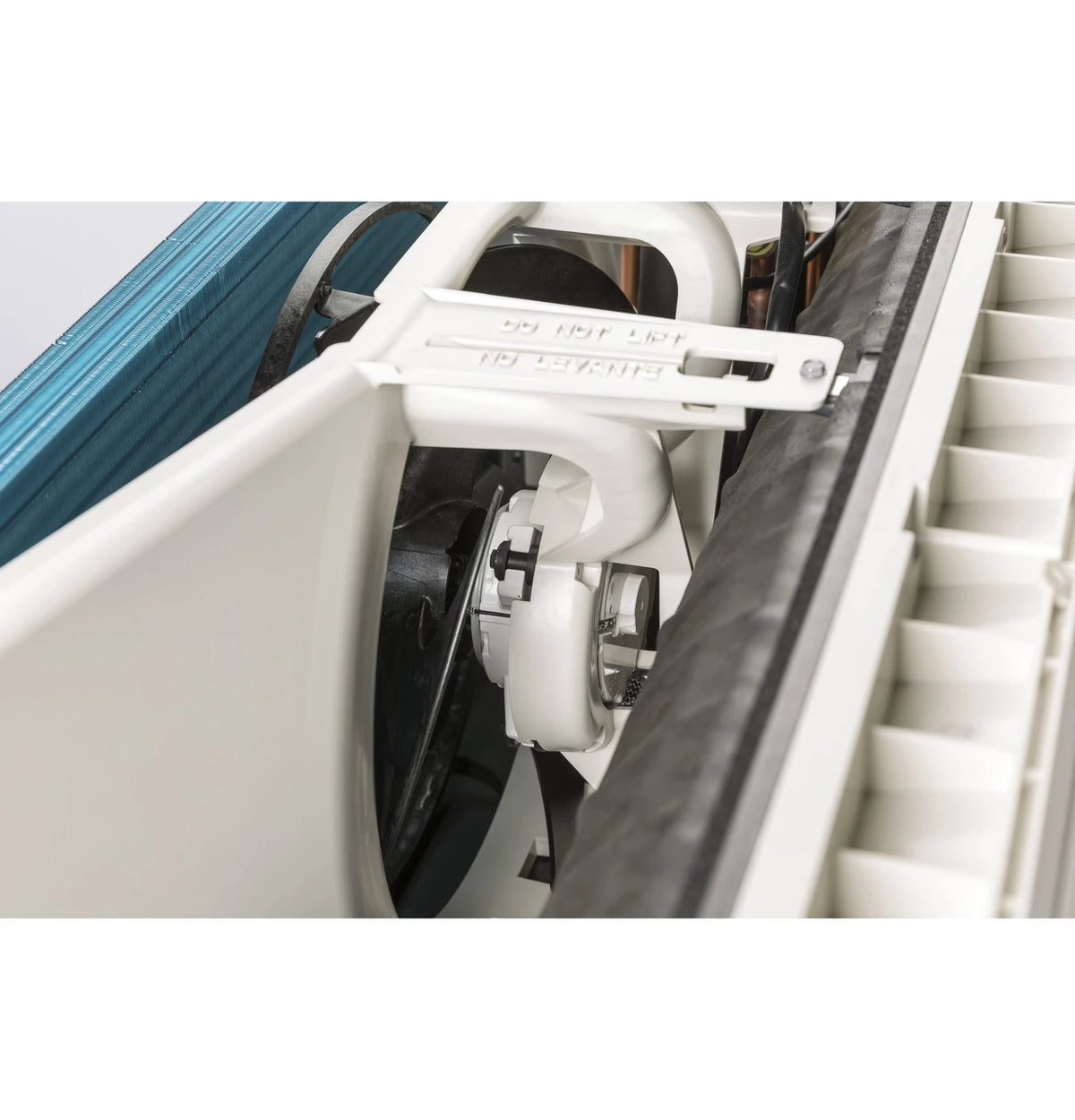

Baked-on mastic sound barrier, cross flow blower and two DC fan motors create less noise to ensure comfort
-

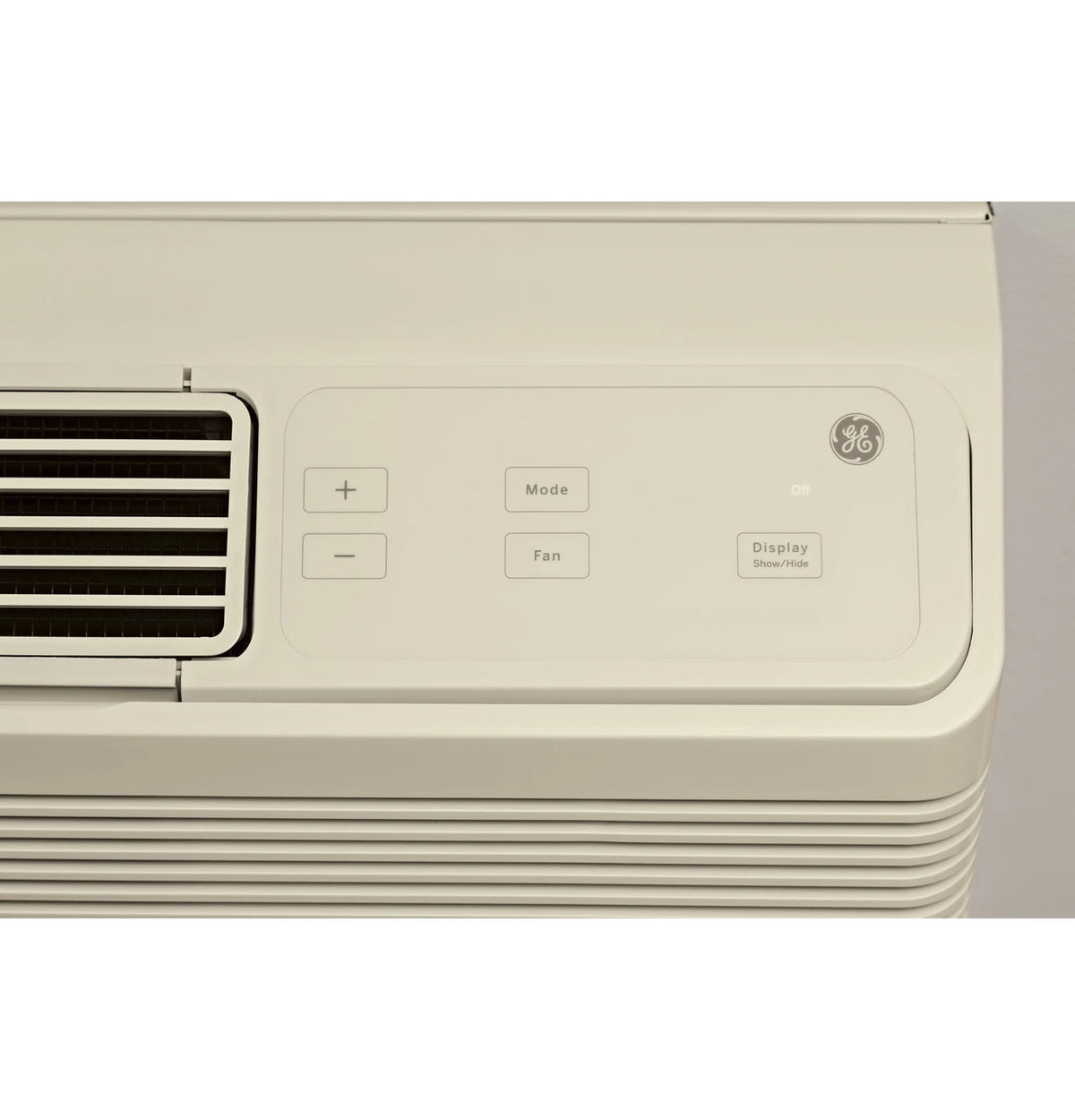

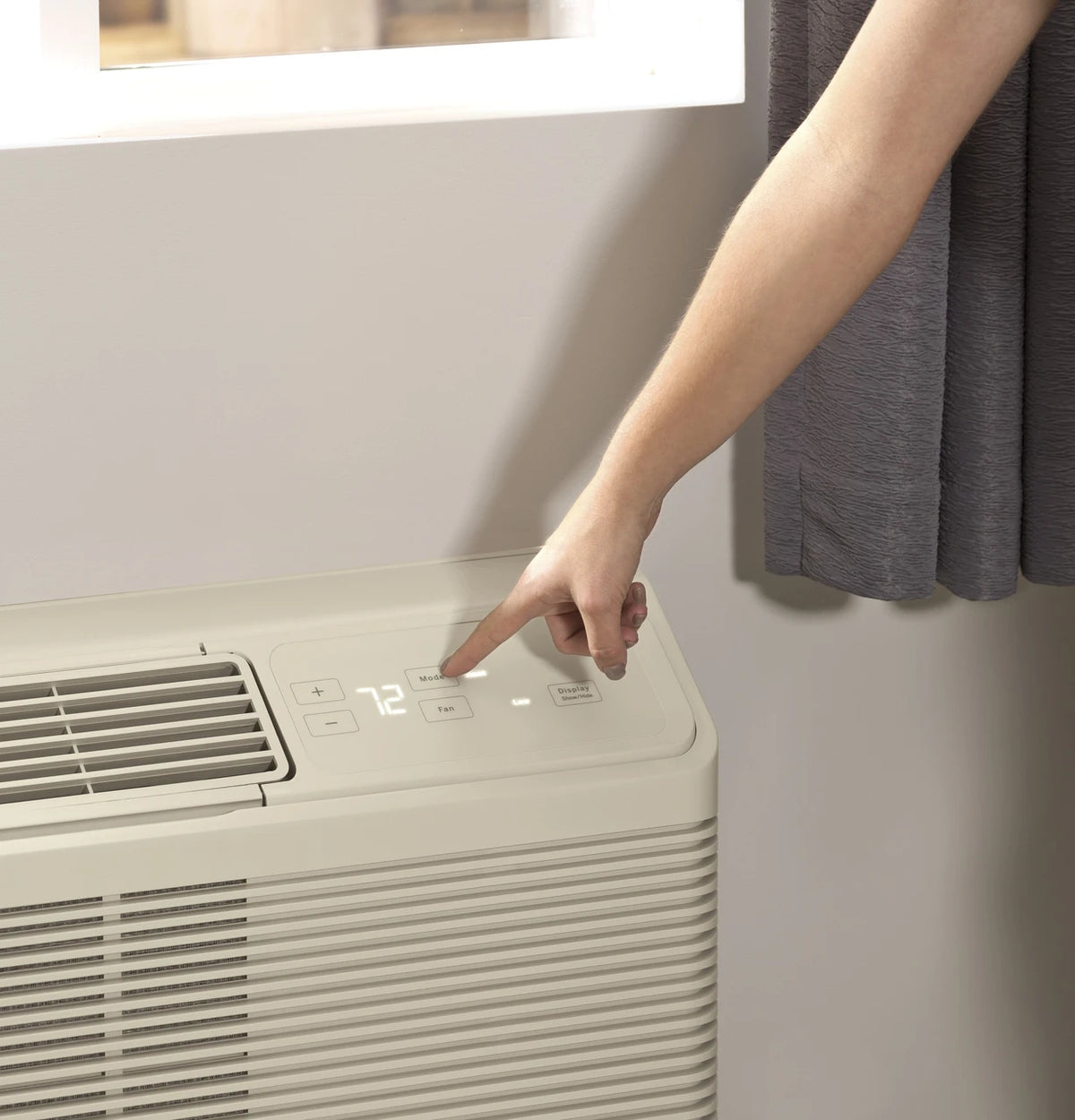

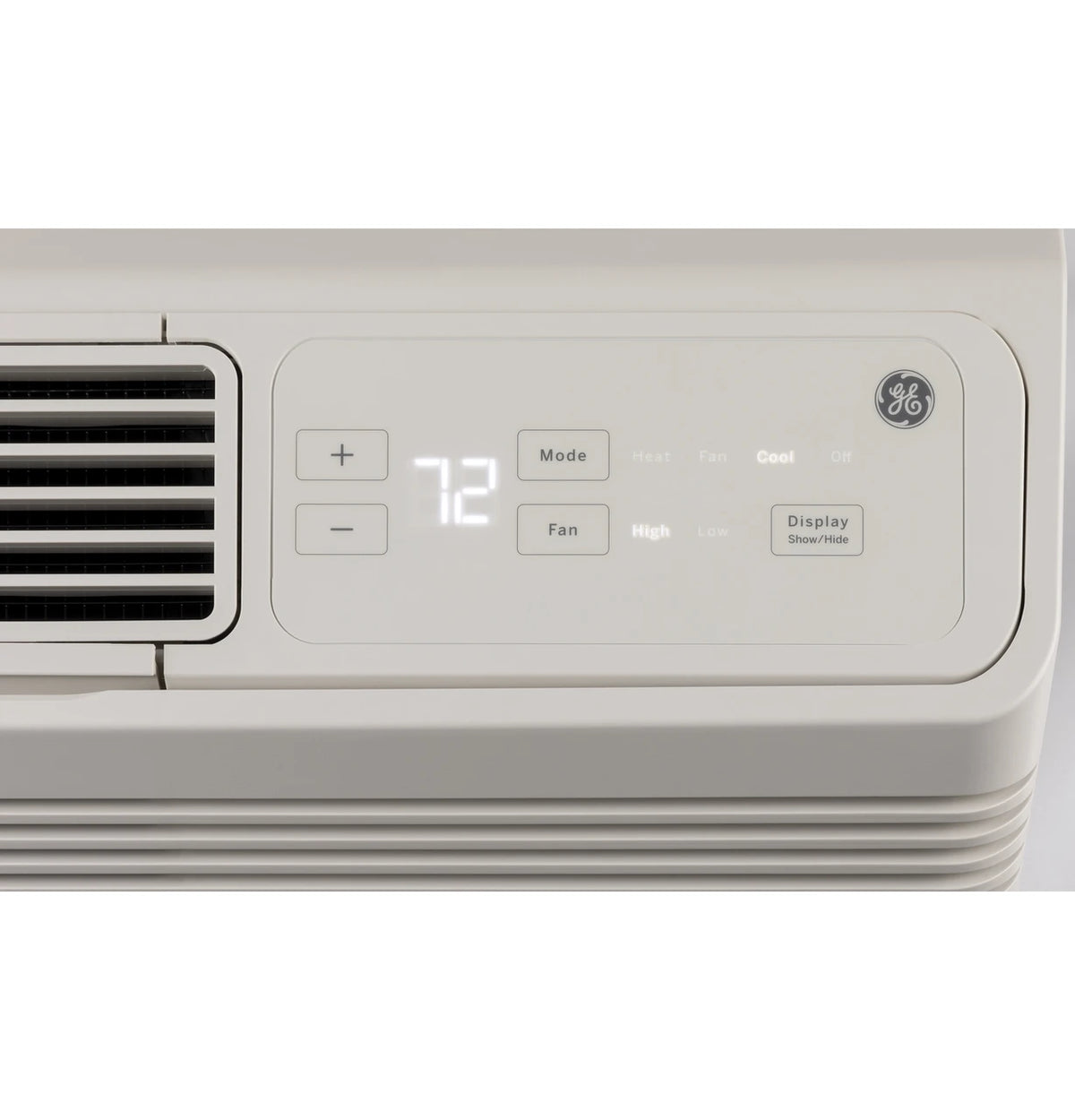

Electronic touch controls with LED display
-
Simplified structure
Easy to maintain and service
-
Designed & Assembled in America
-
Perfect for high humidity climates
Removes 20%-35% more moisture from the air than standard Zoneline air conditioners* (*Varies when comparing dehumidification rates of the 7,000/9,000/12,000 BTU base models to their dry air model counterparts)
-
Cooling capacity
9,400/9,300 BTU
-
Dehumidification
3.4 pints/hour
-
Indoor fan CFM (high/low)
370/280
-
Fresh air vent CFM (fully open high fan)
47
-

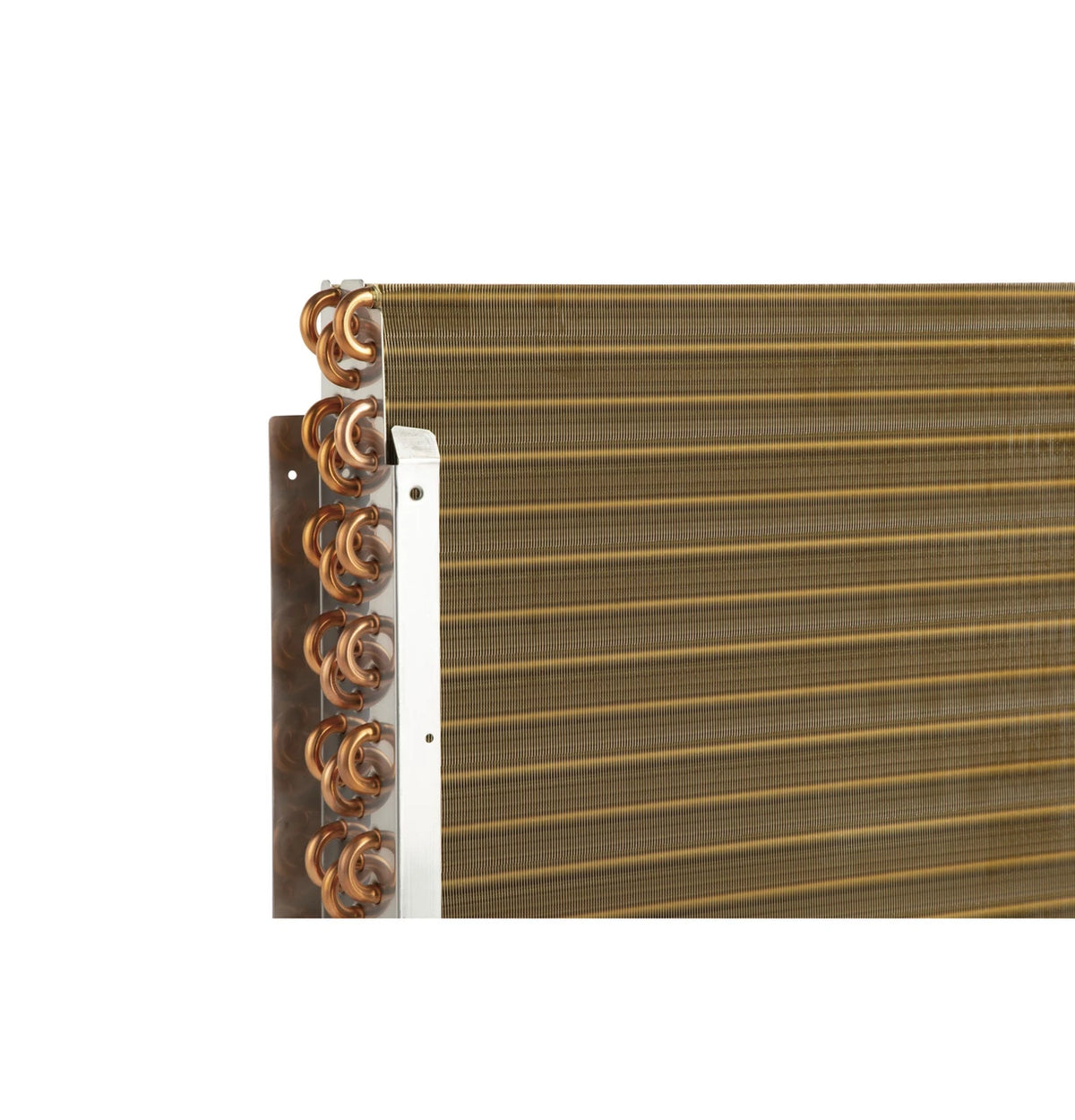

Corrosion resistant
Extends life of the unit in sea coast areas/corrosive environments
-
Heat & Freeze Sentinels
Keeps the room from overheating or freezing
-
Electronic temperature limiting
Prevents expensive over-cooling or over-heating of the room
-
R-410A refrigerant
- SMC base pan
Specs & Details
Dimensions: 16 H x 42 W x 20.8125 D
APPEARANCE
| Color Appearance | Gray |
CAPACITY
| CFM Indoor Fan High | 370 |
| CFM Indoor Fan Low | 260 |
| Cooling BTUH (MAX) | 9,400 Btu |
| Cooling BTUH (MIN) | 9,300 Btu |
| Cooling EER (BTUH / Watt) | 12.1/12.1 |
| Dehumidification (pts./hr.) | 3.4 |
| Vent CFM (high fan at zero ESP) | 44 |
FEATURES

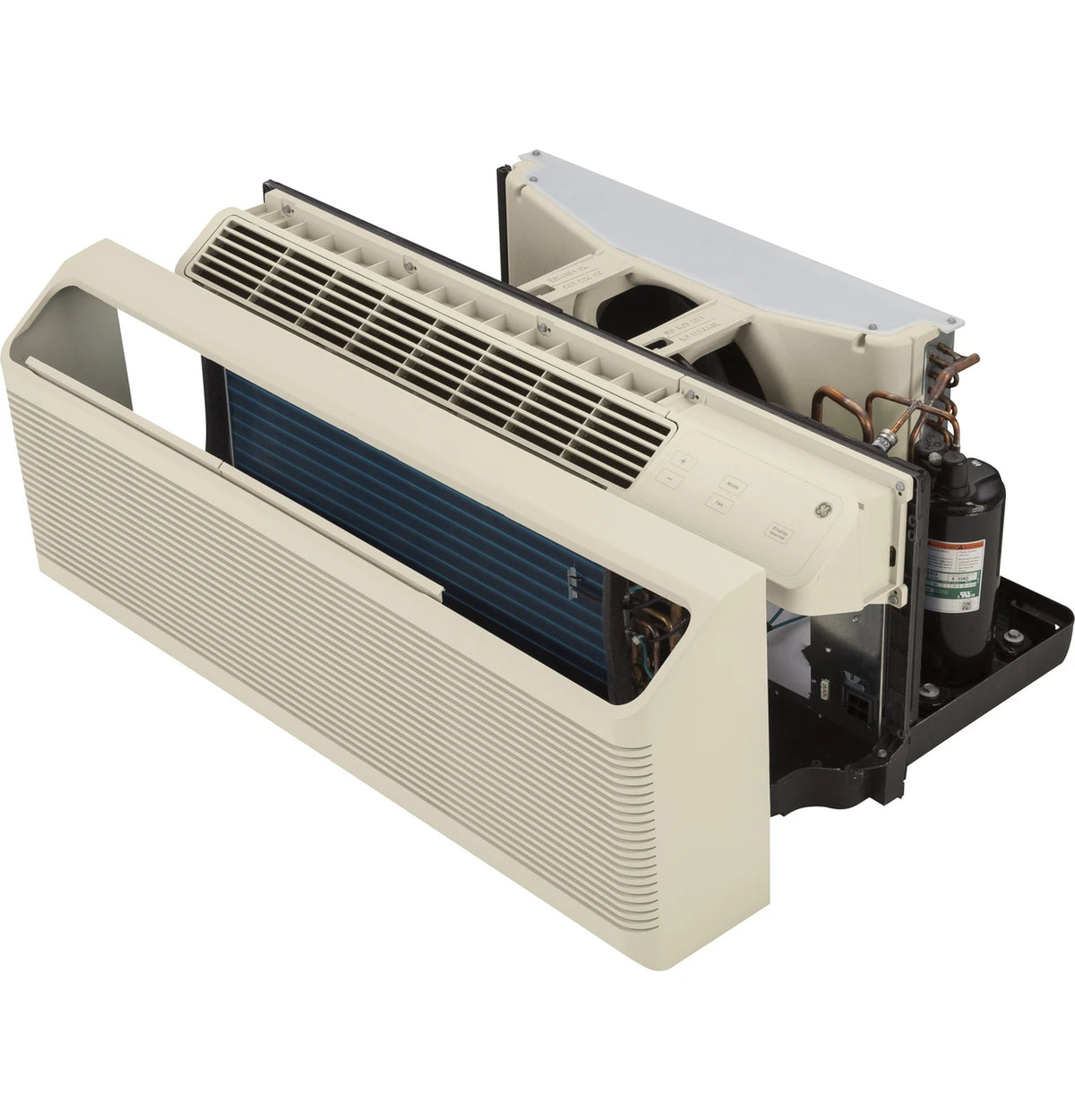

| Chassis Type | Slide-In |
| Control Type | Coverless Backlit White LED Touch Controls |
| Corrosion Treated | Yes |
| Discharge Grille | 2-position |
| Dry Air 25 | Yes |
| Electronic Micro Computer Control | Yes |
| Fan Cycle Switch | Yes |
| Fan Motor | 2 |
| Fan Speed Control | Yes |
| Fan Speed Selections | Hi/Low Cooling Hi/Low Heating Hi/Low Fan Only |

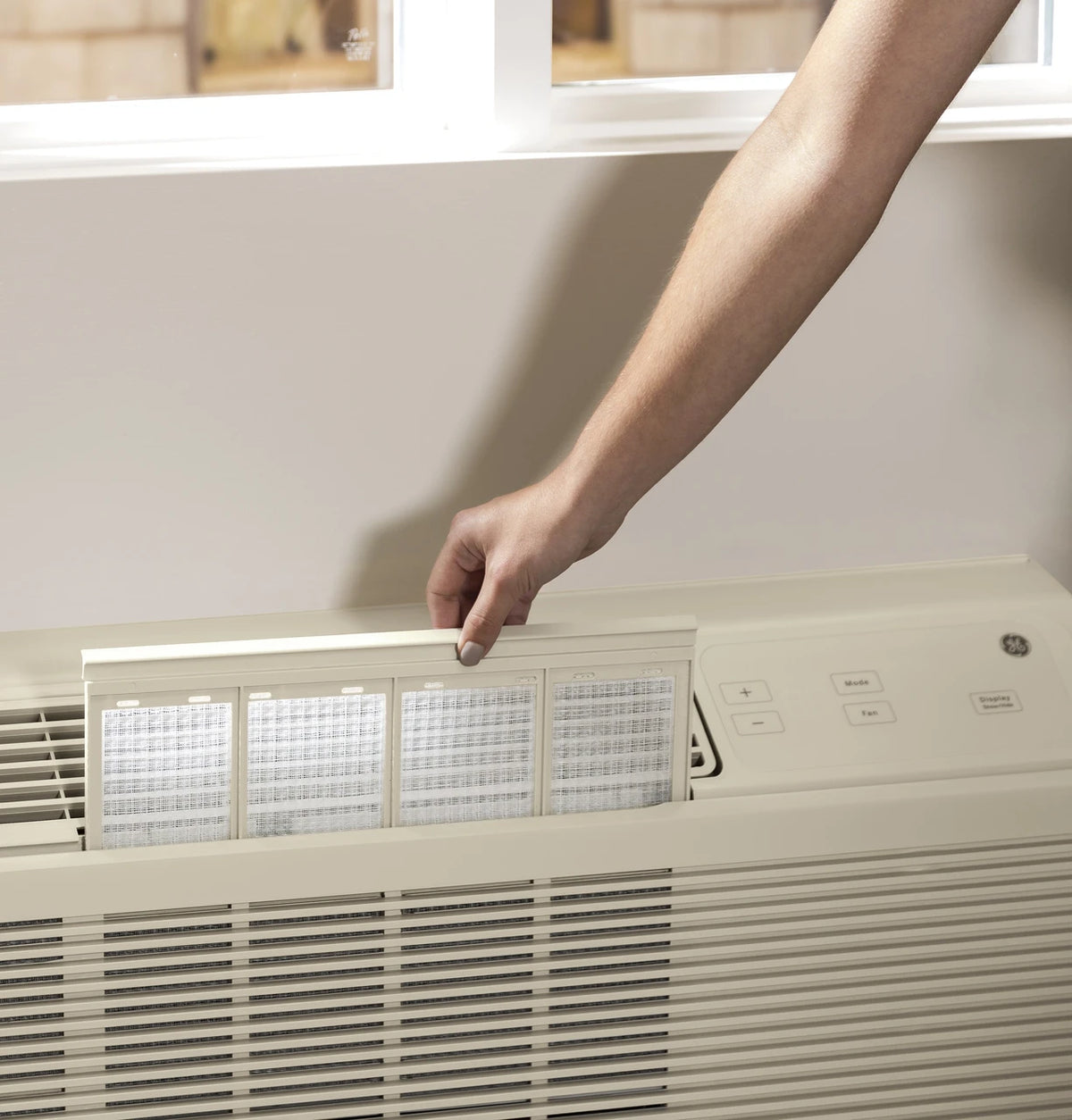

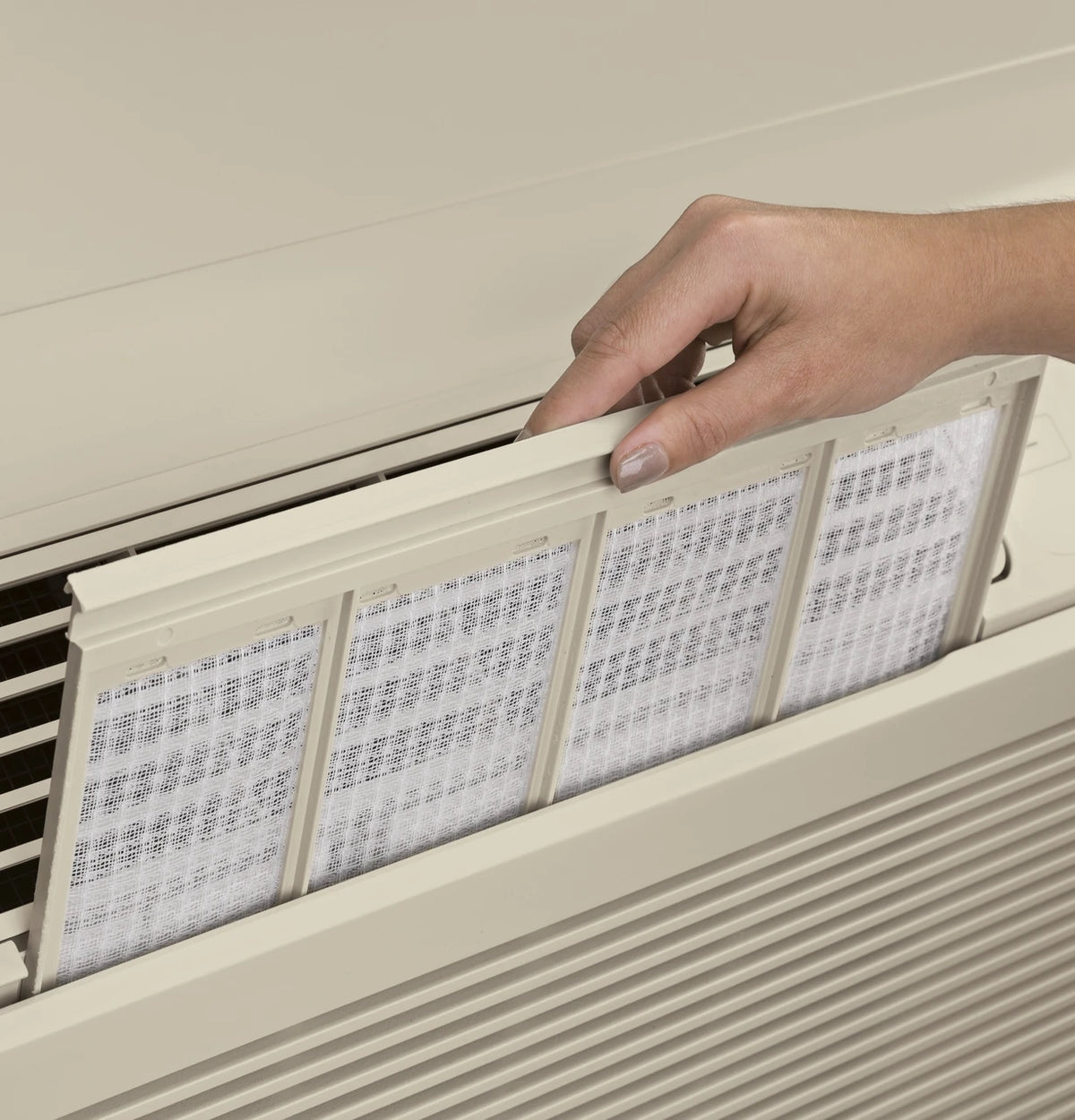

| Filter Type | Rigid Frame Slide-Out |
| Heat - Cool | Yes |
| Heating System | Electric Resistance |
| Louver Style | Reversible |
| Manual Vent Control | Hidden |
| Power Factor | 97 |
| Product Type | Packaged Terminal Air Conditioners (PTAC) |
| Refrigerant Type | R410A |
| Rotary Compressor | Yes |
| Sensible Heat Ratio | 58% |
| Temperature Limiting | Electronic 7-Step |
| Temperature Range | 60 - 85 F |
| Vent Control | 3-position |
| Venting Features | Concealed Manual Vent Control¶Vent Air Filter¶Outdoor Vent Control - 3 Positions |
| Zoneline Features | "Smart Fan" Fan Cycle Control Random Twist/Length Segment Tangential Blower Weather Protected Electrical Components "Sleep" Mode Heat Sentinel Freeze Sentinel Automatic Indoor Frost Control Universal Heaters Auto Power Recovery Remote Thermostat Compatibility Central Desk Control Compatibility Proportional - Integral ID Airflow |
POWER / RATINGS
| Cooling - Amperes | 3.5/3.8 |
| Cooling - Amperes; F.L. - Cooling | 3.5/3.8 |
| Cooling - Amperes; L.R. | 21.0 |
| Cooling - Watts | 775/765 |
| Voltage (MAX) | 230 V |
| Voltage (MIN) | 208 V |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance Limited 5-year sealed system |
| Parts Warranty | 5 year limited parts warranty |
| Warranty Notes | See written warranty for full details |
WEIGHTS & DIMENSIONS
| Approximate Shipping Weight | 110 lb |
| Net Weight | 110 lb |
| Overall Depth | 20.8125 in |
| Overall Height | 16 in |
| Overall Width | 42 in |
