About This Product

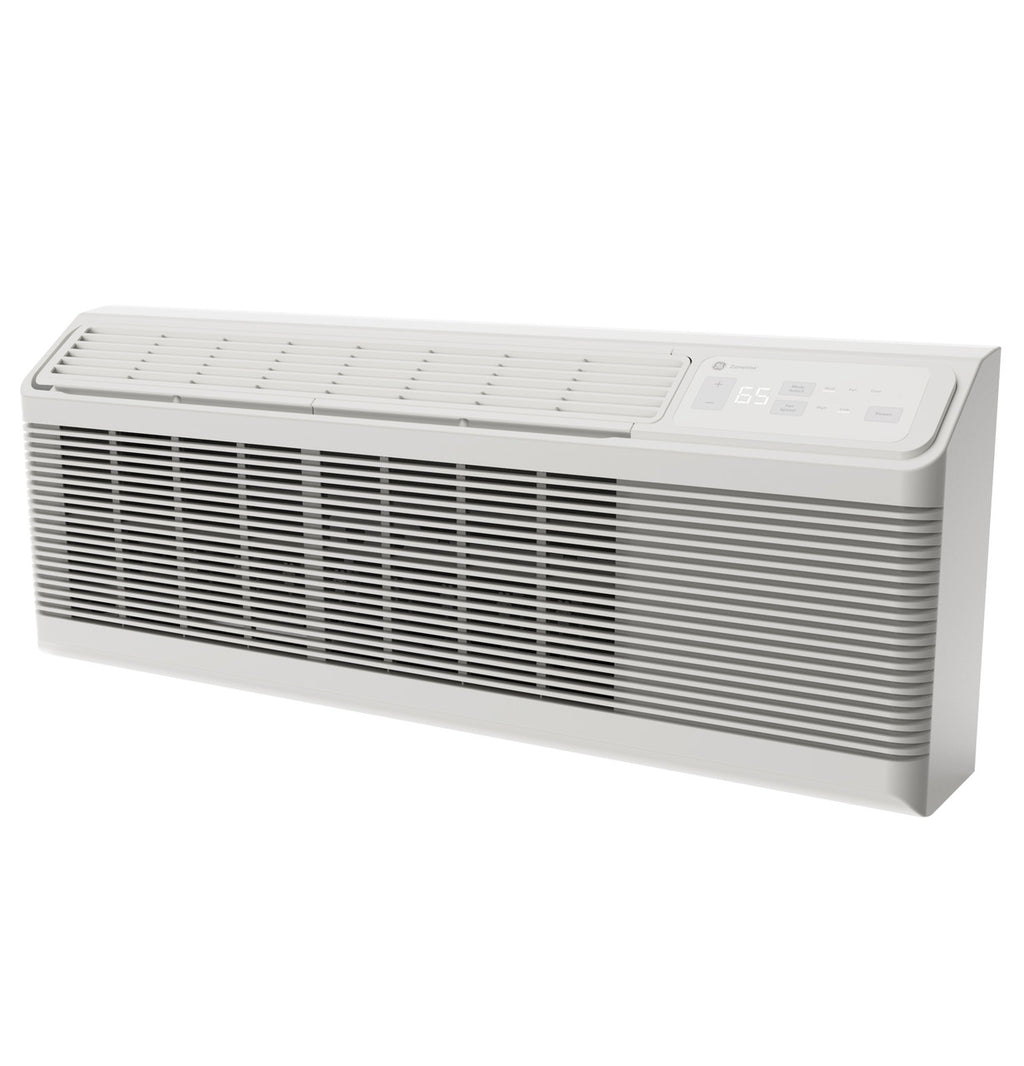

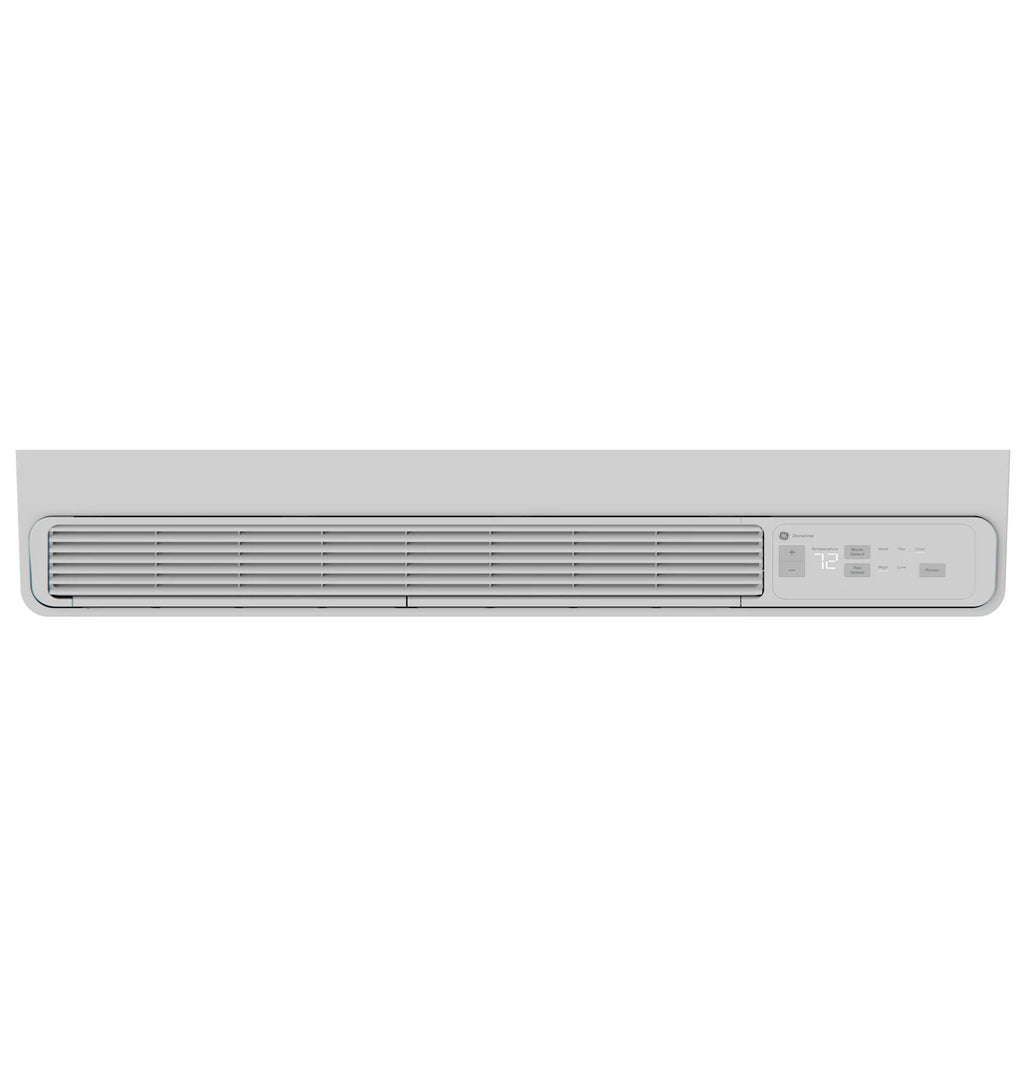

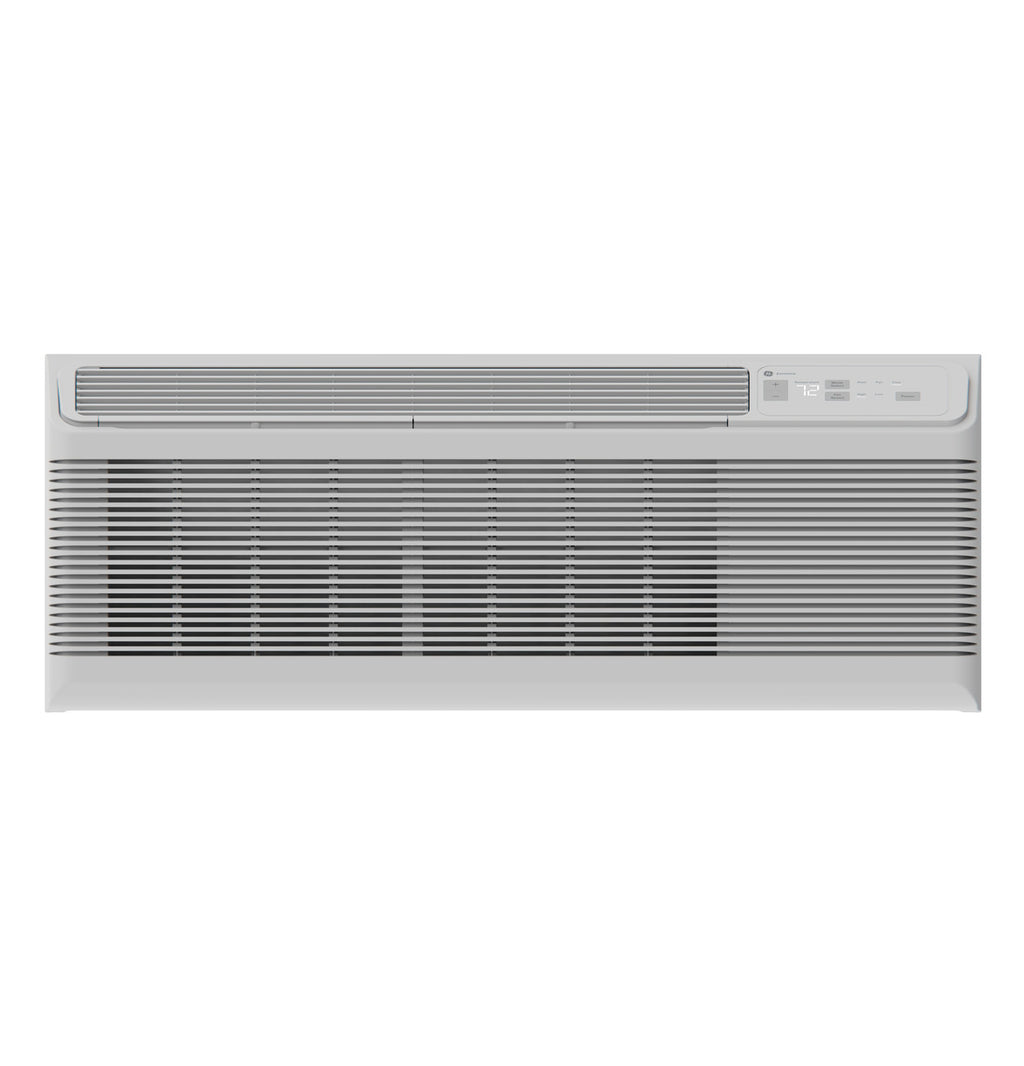

GE Zoneline® Heat Pump Fixed Speed Unit with Corrosion Protection 7,000 BTU, 230/208 Volt
SKU: AZHS07DCXXA
Dimensions: 16 H x 42 W x 20.8125 D
Color: Grey White
Cooling BTU: 7,000 BTU
Voltage: 230/208 Volt
Images are for reference only. Please verify the model number and written specifications on your quote or order confirmation. Ordering information
About This Product
Designed & Assembled in America
Date of Manufacture – 2025 or later
- R454B - Most environmentally friendly refrigerant on the market
- Heat pump down to 25°F
- Boost heat option

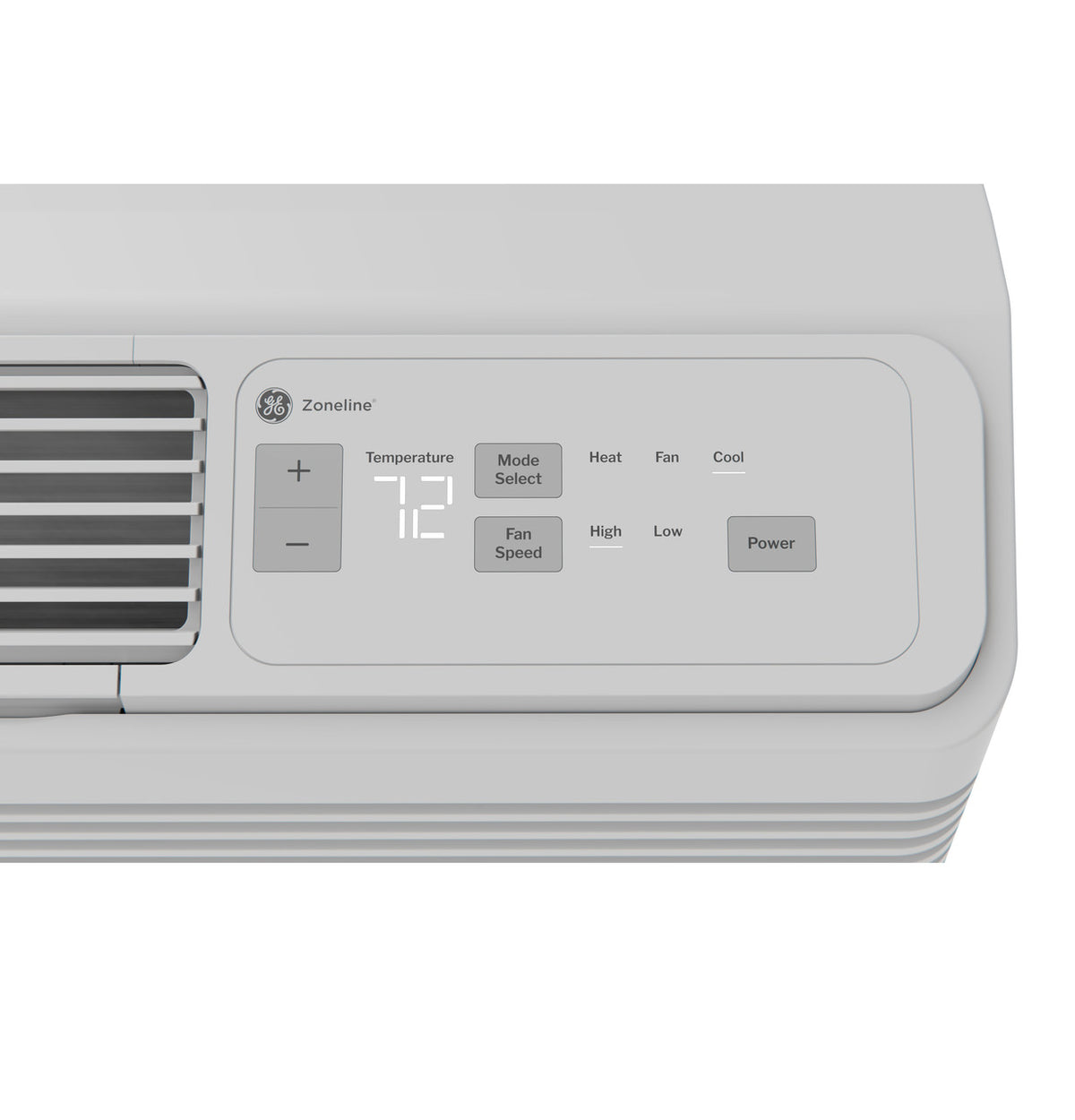

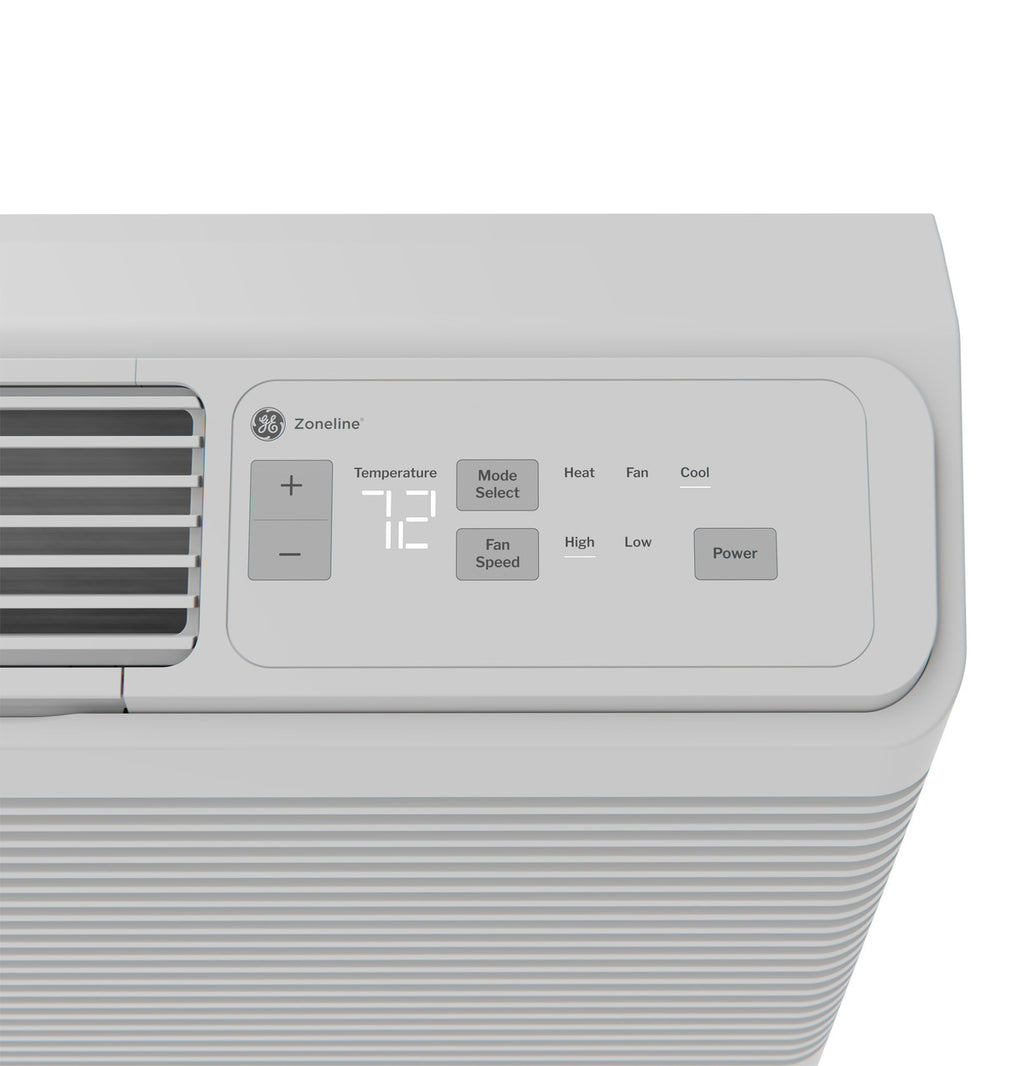

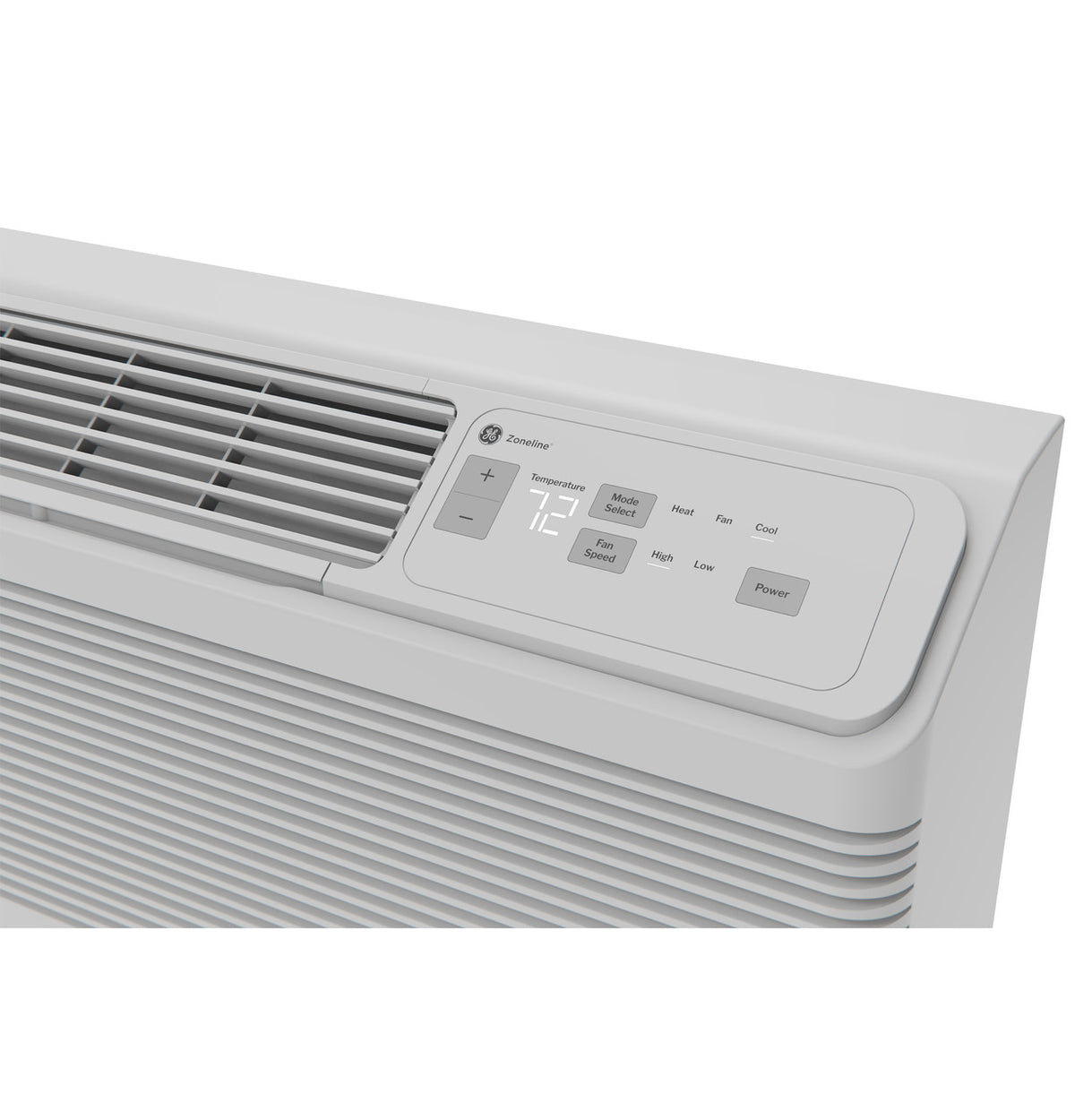

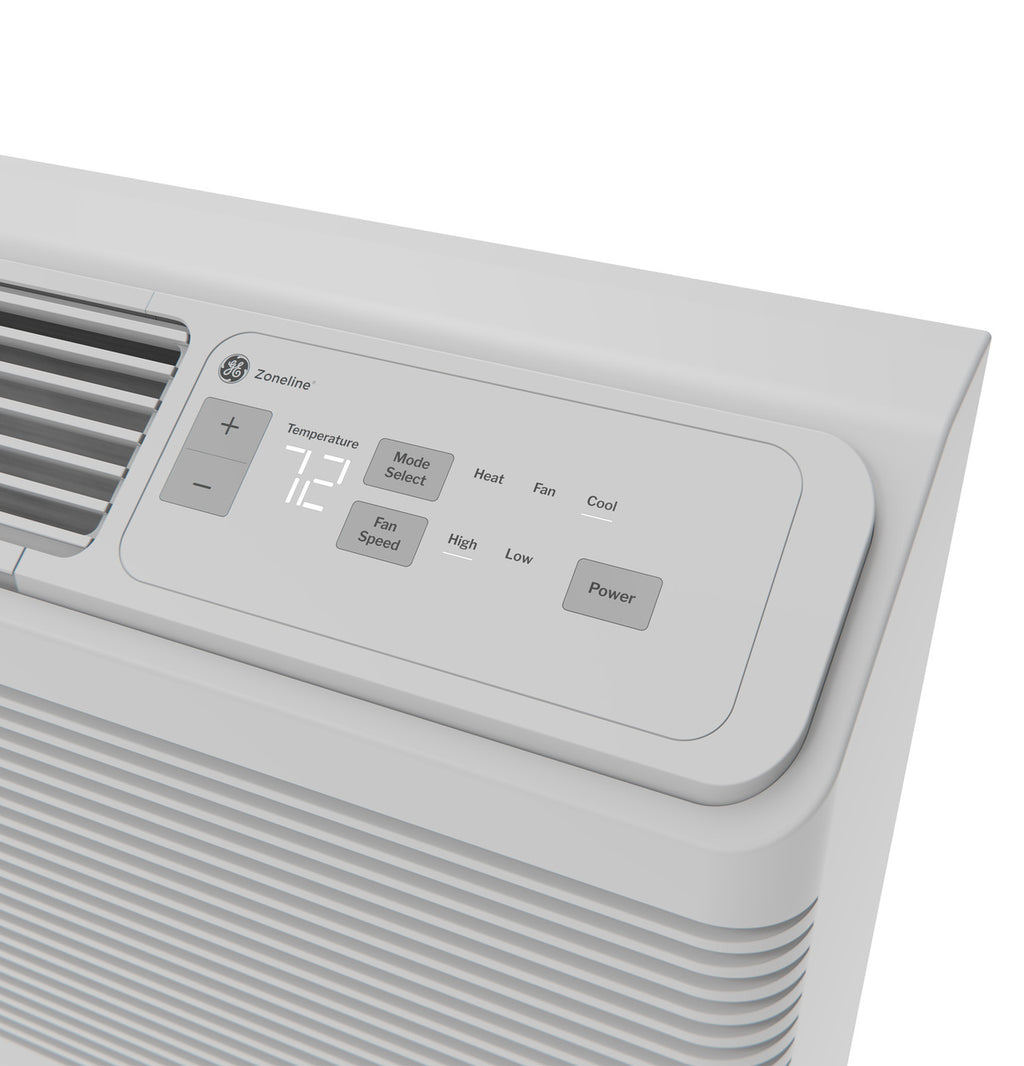

- Electronic touch controls with LED display
- Quiet Operation - baked on mastic sound barrier
- Corrosion protection package
- SMC basepan and bulkhead
- Electronic temperature limiting
- Fresh air vent
Specs & Details
Dimensions: 16 H x 42 W x 20.8125 D
ACCESSORIES
| Accessories Required for Installation | RAB42 - Wall Case Outdoor Grille |
APPEARANCE
| Color Appearance | Grey White |
CAPACITY
| CFM Indoor Fan High | 335 |
| CFM Indoor Fan Low | 240 |
| Cooling BTUH (MAX) | 7200 |
| Cooling BTUH (MIN) | 7,100 Btu |
| Cooling EER (BTUH / Watt) | 13.0 / 13.2 |
| Dehumidification (pts./hr.) | .9 (High Speed) |
| Vent CFM (high fan at zero ESP) | 36.8 |
FEATURES
| Central Desk Control Compatibility | Yes |
| Chassis Type | Slide-In |
| Control Type | Standard Microcomputer Tactile touch pad with LED Display |
| Corrosion Treated | Yes |
| Discharge Grille | 2-position |
| Electronic Micro Computer Control | Yes |
| Fan Cycle Switch | Yes |
| Fan Motor | 2 |
| Fan Speed Control | Yes |
| Fan Speed Selections | Hi/Low Cooling Hi/Low Heating Hi/Low Fan Only |
| Filter Type | Rigid Frame Slide-Out |
| Freeze Sentinel | Yes |
| Heat - Cool | Yes |
| Heat Pump | Yes |
| Heat Sentinel | Yes |
| Heating - Reverse Cycle - COP | 3.9/4.1 |
| Heating System | Heat Pump With Backup Resistance Heat |
| Louver Style | Reversible |
| Manual Vent Control | Hidden |
| Power Factor | 95 |
| Product Type | Packaged Terminal Air Conditioners (PTAC) |
| Refrigerant Charge (oz.) | 26.8 |
| Refrigerant Type | R454B |
| Rotary Compressor | Yes |
| Sensible Heat Ratio | 0.75 |
| Temperature Limiting | Electronic 24-Step |
| Temperature Range | 60 - 85 F |
| Vent Control | 3-position |
| Venting Features | Concealed Manual Vent Control Vent Air Filter Outdoor Vent Control - 3 Positions |
| Zoneline Features | "Smart Fan" Fan Cycle Control Heat Sentinel Freeze Sentinel Automatic Indoor Frost Control Universal Heaters Auto Power Recovery Remote Thermostat Compatibility Central Desk Control Compatibility Random Twist/Length Segment Tangential Blower |
POWER / RATINGS
| Cooling - Amperes | 2.6/2.8 |
| Cooling - Amperes; F.L. - Cooling | 2.5/2.7 |
| Cooling - Amperes; L.R. | 13.5 |
| Cooling - Watts | 550/535 |
| Heating BTUH | 6200 / 6200 |
| Heating - Electric - Heater Amps | 2.3/2.5 |
| Heating - Reverse Cycle - Watts | 450/445 |
| Voltage (MAX) | 230 V |
| Voltage (MIN) | 208 V |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance Limited 5-year sealed system |
| Parts Warranty | Limited 2-year entire appliance |
| Warranty Notes | See written warranty for full details |
WEIGHTS & DIMENSIONS
| Approximate Shipping Weight | 108 lb |
| Net Weight | 98 lb |
| Overall Depth | 20.8125 in |
| Overall Height | 16 in |
| Overall Width | 42 in |
