About This Product

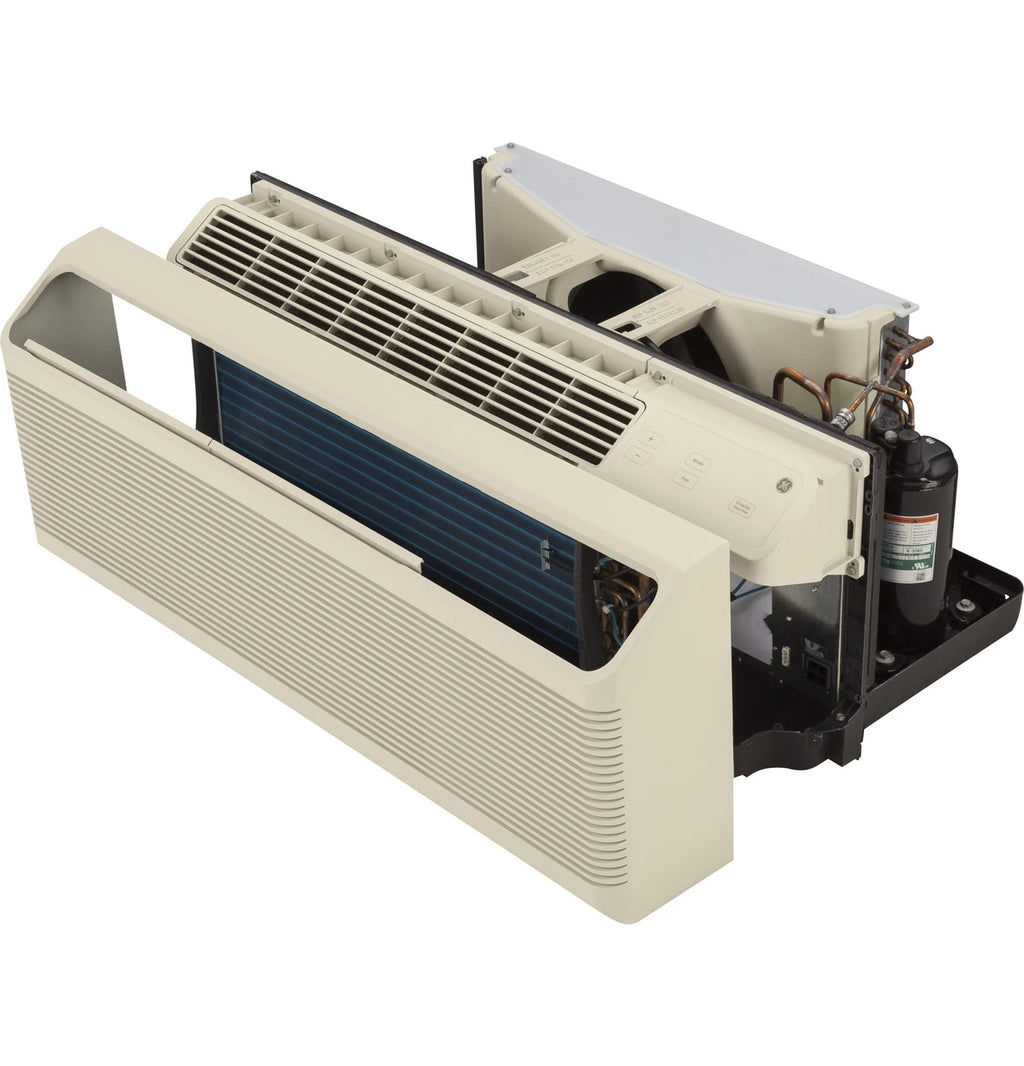

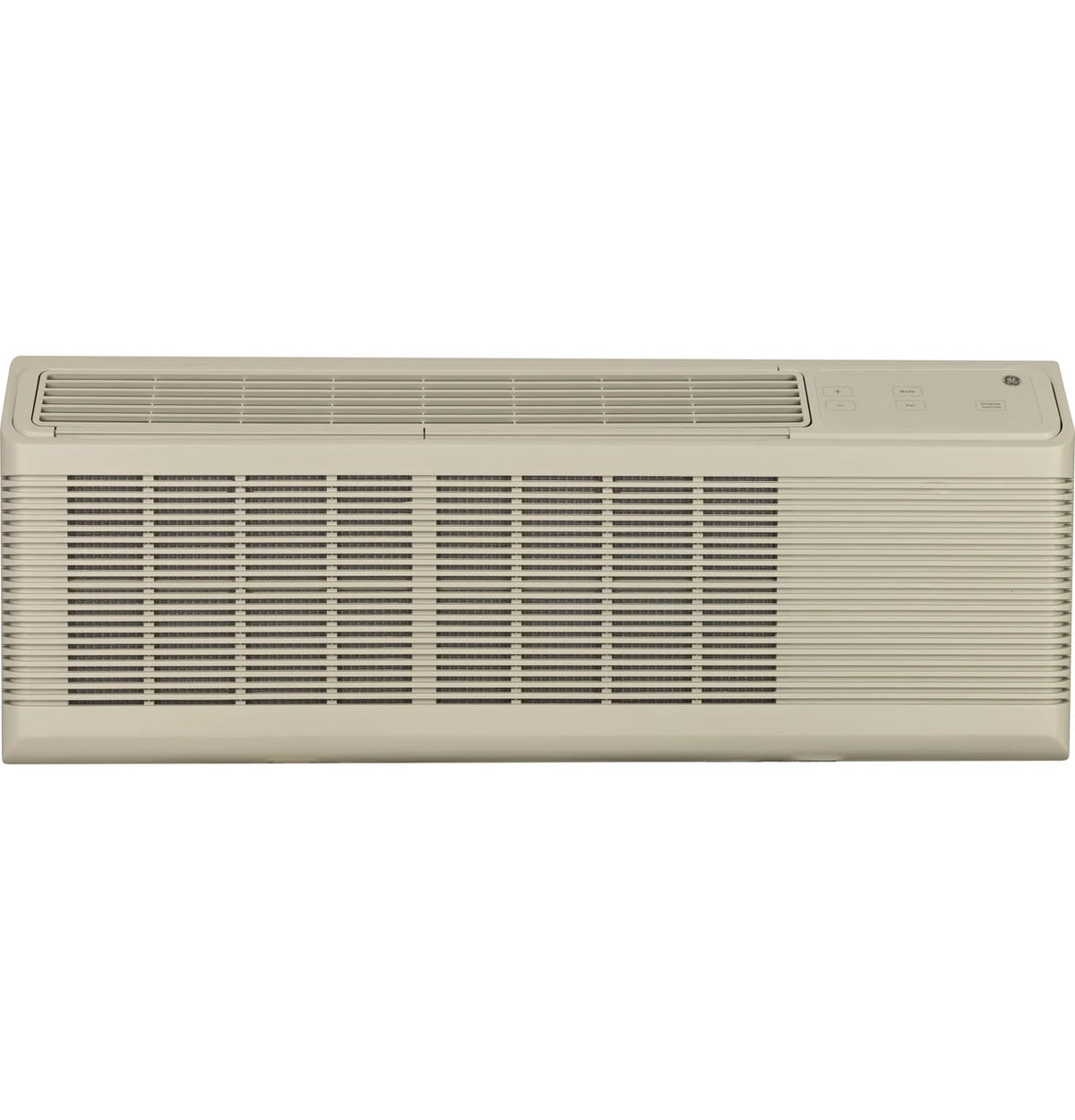

GE Zoneline® Heat Pump Unit with Corrosion Protection 12,000 BTU, 265 Volt
SKU: AZ65H12EAC
Dimensions: 16 H x 42 W x 20.8125 D
Color: Gray
Cooling BTU: 12,000 BTU
Voltage: 265 Volt
About This Product
-
Energy efficiency
11.6 EER
-
Quiet operation
Baked-on mastic sound barrier, cross flow blower and two DC fan motors create less noise to ensure comfort
- Electronic touch controls with LED display
- Designed & Assembled in America
-
Cooling capacity
11,900 BTU
-
Dehumidification
3.7 pints/hour
-
Reverse cycle heat
10,500 BTU
-
Heat pump efficiency
3.6 COP
-
Indoor fan CFM (high/low)
449/300
-
Fresh air vent CFM (fully open high fan)
45
-
Corrosion resistant
Extends life of the unit in sea coast areas/corrosive environments
-
Heat & Freeze Sentinels
Keeps the room from overheating or freezing
-
Boost heat option
Provides supplemental resistance heat in heat pump mode
-
Electronic temperature limiting
Prevents expensive over-cooling or over-heating of the room
- R-410A refrigerant
Specs & Details
Dimensions: 16 H x 42 W x 20.8125 D
APPEARANCE
| Color Appearance | Gray |
CAPACITY
| CFM Indoor Fan High | 410 |
| CFM Indoor Fan Low | 300 |
| Cooling BTUH (MAX) | 11,500 Btu |
| Cooling EER (BTUH / Watt) | 11.6 |
| Dehumidification (pts./hr.) | 3.7 |
| Heating - Reverse Cycle - BTUH | 10300 |
| Vent CFM (high fan at zero ESP) | 45 |
FEATURES
| Chassis Type | Slide-In |
| Control Type | Standard Microcomputer Tactile touch pad with LED Display |
| Corrosion Treated | Yes |
| Discharge Grille | 2-position |
| Electronic Micro Computer Control | Yes |
| Fan Cycle Switch | Yes |
| Fan Motor | 2 |
| Fan Speed Control | Yes |
| Fan Speed Selections | Hi/Low Cooling Hi/Low Heating Hi/Low Fan Only |
| Filter Type | Rigid Frame Slide-Out |
| Heat - Cool | Yes |
| Heat Pump | Yes |
| Heating - Reverse Cycle - COP | 3.6 |
| Heating System | Heat Pump |
| Louver Style | Reversible |
| Manual Vent Control | Hidden |
| Power Factor | 97 |
| Product Type | Packaged Terminal Air Conditioners (PTAC) |
| Refrigerant Type | R410A |
| Rotary Compressor | Yes |
| Sensible Heat Ratio | 62% |
| Temperature Limiting | Electronic 7-Step |
| Temperature Range | 60 - 85 F |
| Vent Control | 3-position |
| Venting Features | Concealed Manual Vent Control¶Vent Air Filter¶Outdoor Vent Control - 3 Positions |
| Zoneline Features | "Smart Fan" Fan Cycle Control Automatic Emergency Heat Auto Power Recovery Reverse Cycle Defrost Remote Thermostat Compatibility Central Desk Control Compatibility Proportional - Integral ID Airflow Random Twist/Length Segment Tangential Blower Weather Protected Electrical Components "Sleep" Mode Heat Sentinel Freeze Sentinel Automatic Indoor Frost Control Universal Heaters Quick Heat Recovery 3-Stage Heating Design Heat Pump with Resistance Heat Backup Heat Pump with Supplemental Resistance Heat |
POWER / RATINGS
| Cooling - Amperes | 4.0 |
| Cooling - Amperes; F.L. - Cooling | 4.0 |
| Cooling - Amperes; L.R. | 23.5 |
| Cooling - Watts | 1025 |
| Heating - Reverse Cycle - Amps | 3.5 |
| Heating - Reverse Cycle - Watts | 860 |
| Voltage (MAX) | 265 V |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance Limited 5-year sealed system |
| Parts Warranty | 5 year limited parts warranty |
| Warranty Notes | See written warranty for full details |
WEIGHTS & DIMENSIONS
| Approximate Shipping Weight | 110 lb |
| Net Weight | 110 lb |
| Overall Depth | 20.8125 in |
| Overall Height | 16 in |
| Overall Width | 42 in |
