About This Product

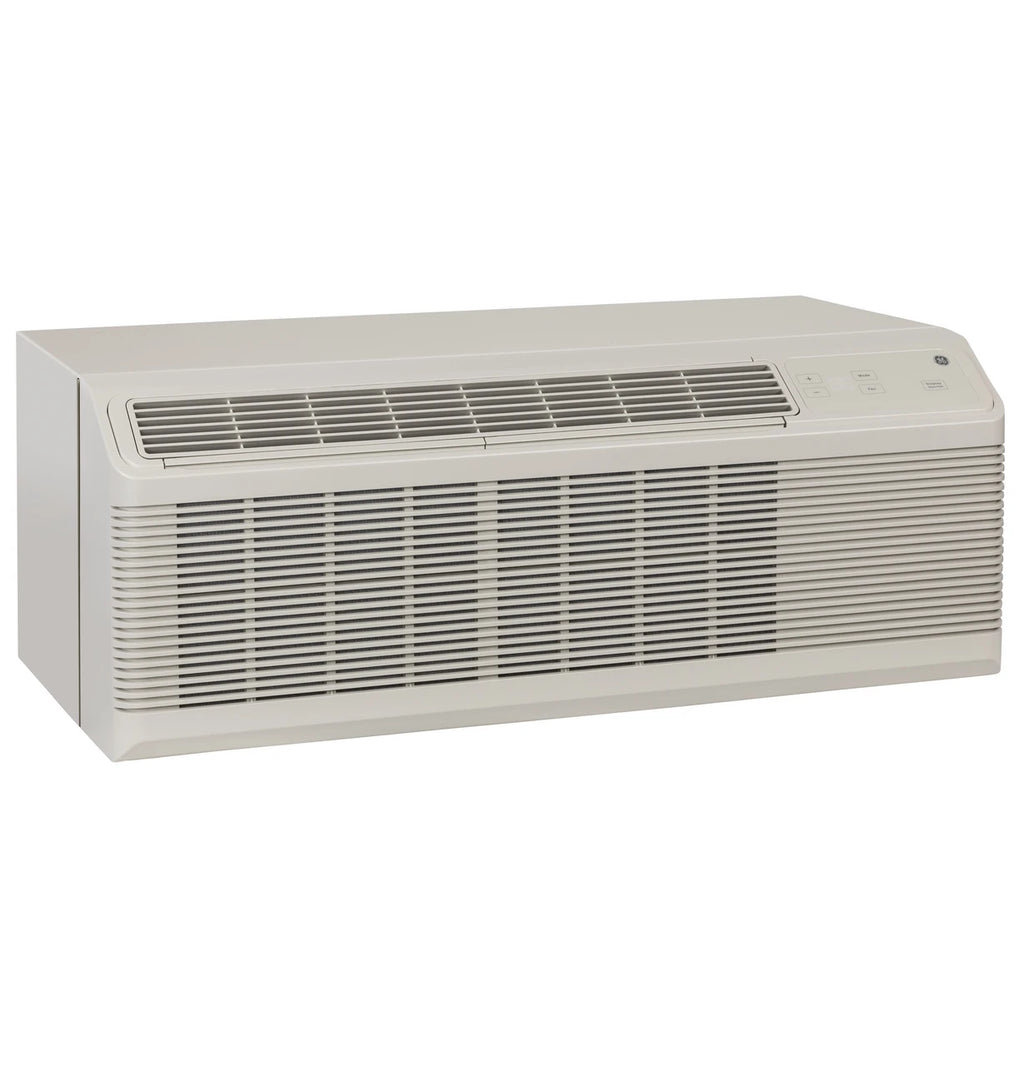

GE Zoneline® Heat Pump Unit with Makeup Air 9,000 BTU, 230/208 Volt (AZ65H09DBM)
SKU: AZ65H09DBM
Dimensions: 16 H x 42 W x 20.8125 D
Color: Gray
Cooling BTU: 9,000 BTU
Voltage: 230/208 Volt
About This Product
-
Makeup air
Delivers 25-50 CFM of continuous makeup air whenever the room is occupied
-
Energy efficiency
When paired with occupancy sensing hardware, ventilation can be halted during vacancy
- Electronic touch controls with LED display
-
Simplified structure
Easy to maintain and service
- Designed & Assembled in America
- Product built to order, lead times may vary
-
Dehumidification
Dehumidifies at a rate of 5-6 pints per 24 hours (based on CFM level)
-
Boost heat option
Provides supplemental resistance heat in heat pump mode
-
Heat & Freeze Sentinels
Keeps the room from overheating or freezing
-
Electronic temperature limiting
Prevents expensive over-cooling or over-heating of the room
- May reduce the need for individually ducted rooftop systems
- Because makeup air increases room BTU load requirements and requires additional PTAC cooling or heating, the building’s electrical needs may be impacted
- Makeup air models are not recommended for installation within two miles of coastal areas
- It is strongly recommended to install makeup air with wall thermostats
- SMC base pan
Specs & Details
Dimensions: 16 H x 42 W x 20.8125 D
APPEARANCE
| Color Appearance | Gray |
CAPACITY
| CFM Indoor Fan High | 409 |
| CFM Indoor Fan Low | 300 |
| Cooling BTUH (MAX) | 9,200 Btu |
| Cooling BTUH (MIN) | 9,100 Btu |
| Cooling EER (BTUH / Watt) | 11.3/11.3 |
| Dehumidification (pts./hr.) | 1.9 |
| Heating - Reverse Cycle - BTUH | 8000/7900 |
| Vent CFM (high fan at zero ESP) | 25-50 |
FEATURES
| Chassis Type | Slide-In |
| Control Type | Standard Microcomputer Tactile touch pad with LED Display |
| Discharge Grille | 2-position |
| Electronic Micro Computer Control | Yes |
| Fan Cycle Switch | Yes |
| Fan Motor | 2 |
| Fan Speed Control | Yes |
| Fan Speed Selections | Hi/Low Cooling Hi/Low Heating Hi/Low Fan Only |
| Filter Type | Rigid Frame Slide-Out |
| Heat - Cool | Yes |
| Heat Pump | Yes |
| Heating - Reverse Cycle - COP | 3.3/3.3 |
| Heating System | Heat Pump |
| Louver Style | Reversible |
| Makeup Air | Yes |
| Power Factor | 97 |
| Product Type | Packaged Terminal Air Conditioners (PTAC) |
| Refrigerant Type | R410A |
| Rotary Compressor | Yes |
| Sensible Heat Ratio | 80% |
| Temperature Limiting | Electronic 7-Step |
| Temperature Range | 60 - 85 F |
| Zoneline Features | "Smart Fan" Fan Cycle Control Automatic Emergency Heat Auto Power Recovery Reverse Cycle Defrost Remote Thermostat Compatibility Central Desk Control Compatibility Proportional - Integral ID Airflow Random Twist/Length Segment Tangential Blower Weather Protected Electrical Components "Sleep" Mode Heat Sentinel Freeze Sentinel Automatic Indoor Frost Control Universal Heaters Quick Heat Recovery 3-Stage Heating Design Heat Pump with Resistance Heat Backup Heat Pump with Supplemental Resistance Heat |
POWER / RATINGS
| Cooling - Amperes | 4.9/5.2 |
| Cooling - Amperes; F.L. - Cooling | 4.9/5.2 |
| Cooling - Amperes; L.R. | 21.0 |
| Cooling - Watts | 810/805 |
| Heating - Reverse Cycle - Amps | 4.7/4.8 |
| Heating - Reverse Cycle - Watts | 705/695 |
| Voltage (MAX) | 230 V |
| Voltage (MIN) | 208 V |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance Limited 5-year sealed system |
| Parts Warranty | 5 year limited parts warranty |
| Warranty Notes | See written warranty for full details |
WEIGHTS & DIMENSIONS
| Approximate Shipping Weight | 135 lb |
| Net Weight | 135 lb |
| Overall Depth | 20.8125 in |
| Overall Height | 16 in |
| Overall Width | 42 in |
