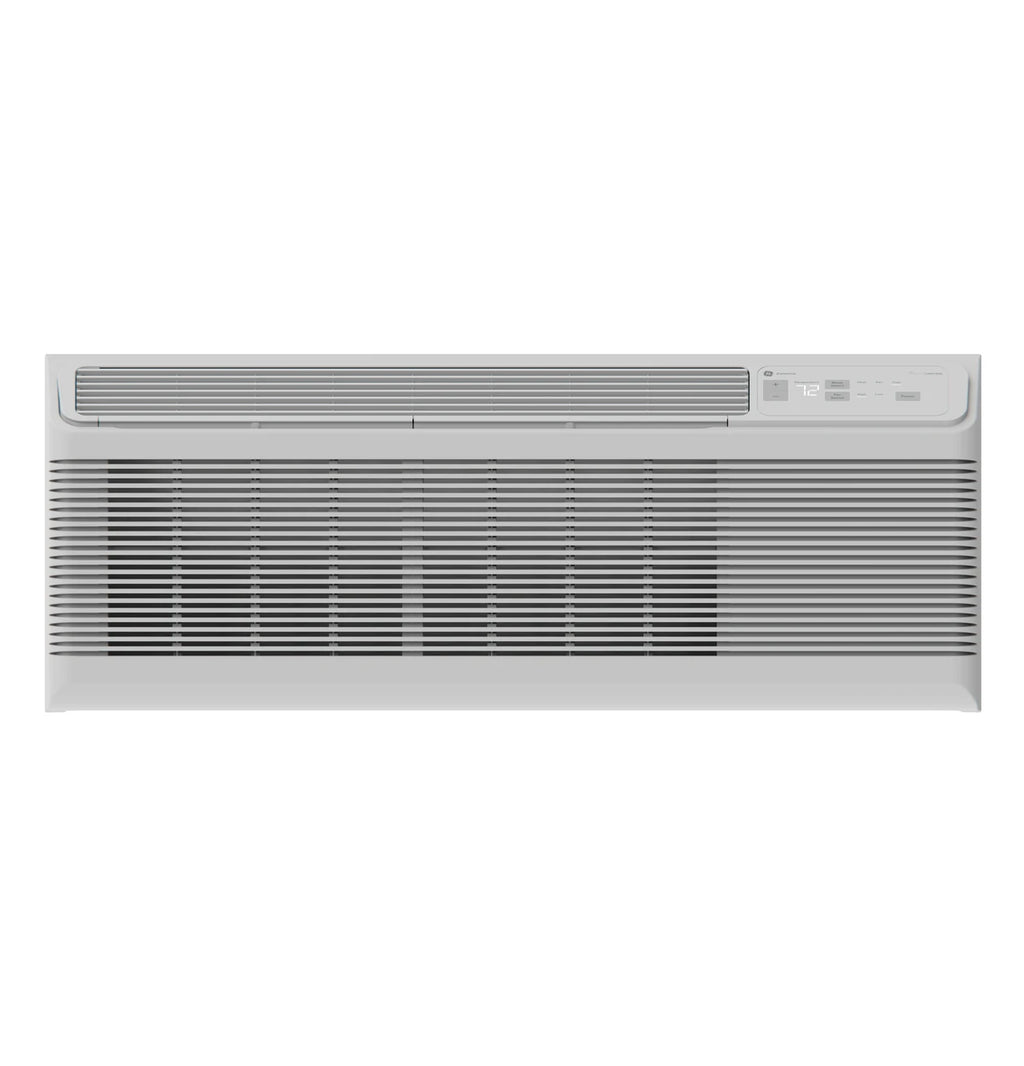

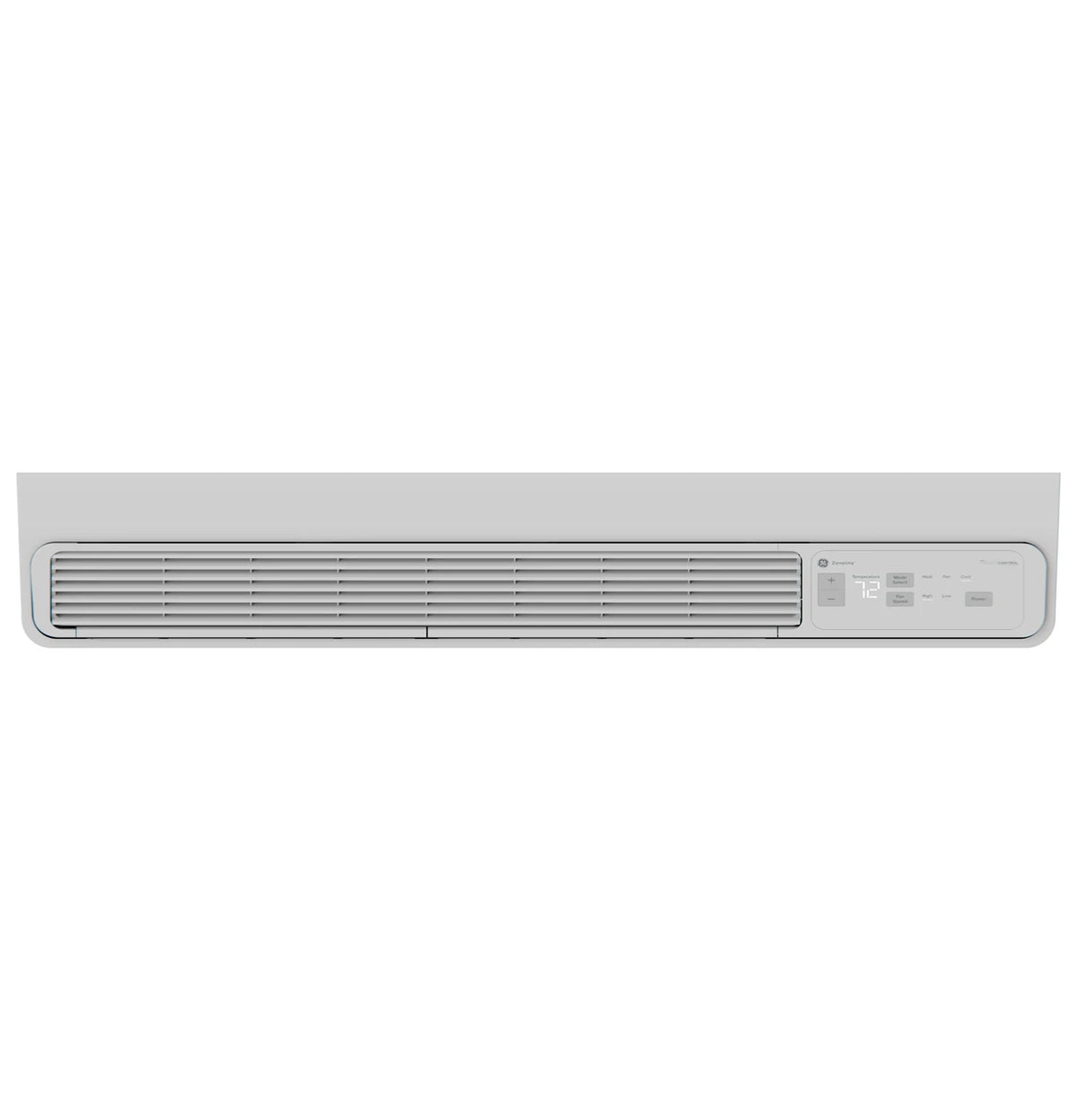

GE Zoneline Heat Pump Unit with Variable Speed Inverter Technology and Makeup Air 15,000 BTU, 265 Volt

GE Zoneline® Heat Pump Unit with Variable Speed Inverter Technology and Makeup Air 15,000 BTU, 265 Volt

SKU: AZVS15EMXWA

Dimensions: 16 H x 42 W x 20.8125 D

Color: Grey White

Cooling BTU: 15,000 BTU

Voltage: 265 Volt

Images are for reference only. Please verify the model number and written specifications on your quote or order confirmation. Ordering information

About This Product

Designed & Assembled in America

Date of Manufacture – 2025 or later

  • Eco-Friendly Build
    Zoneline® Perfect Control units use the most environmentally friendly refrigerants currently offered in PTAC's, helping commercial building meet LEED standards and reduce their environmental footprint

  • Inverter Technology
    Variable speed operation provides an advantage with shorter recovery time, improved efficiency, sound quality and dehumidification

  • Efficient cold weather heat pump
    Advanced defrost capability allows for extended heat pump down to 0°F

  • New Upgraded Appearance
    New grey white chassis color will compliment any installation and room décor. Easy-to-read interface makes navigation simple.

  • Whisper Quiet Operation
    Large cross-flow blower, a variable speed compressor and two EC motors work together to minimize noise and maximize comfort.

  • Industry Leading Performance
    Perfect Control technology senses temperature and humidity onboard the unit and occupancy via optional wall thermostats. Proprietary heat load algorithms sense room size to automatically adjust output and target comfortable humidity levels.

  • Best-In-Class Reliability
    With over 1 million units installed, Zoneline® PTACs offer unrivaled reliability backed by a dedicated service network and field team that helps you stay up and running

  • Unmatched Durability
    All Zoneline® units are made of the highest quality material and tested in extreme environments to ensure they operate at peak performance, season after season

  • Adjustable Speed Makeup Air
    Makeup Air with customizable variable speed fan technology prov ide the precise airflow for specific applications. For energy savings, Makeup air delivery can be cycled based on occupancy, using a compatible occupancy detecting thermostat.


Specs & Details

Dimensions: 16 H x 42 W x 20.8125 D

ACCESSORIES

Accessories Required for Installation RAB42 - Wall Case
Outdoor Grille

APPEARANCE

Color Appearance Grey White

CAPACITY

CFM Indoor Fan High 525
CFM Indoor Fan Low 250
Cool BTUH (265V) 14300
Cooling BTUH (MAX) 14300
Cooling EER (BTUH / Watt) 11
Dehumidification (pts./hr.) 2

FEATURES

Central Desk Control Compatibility Yes
Chassis Type Slide-In
Control Type Standard Microcomputer

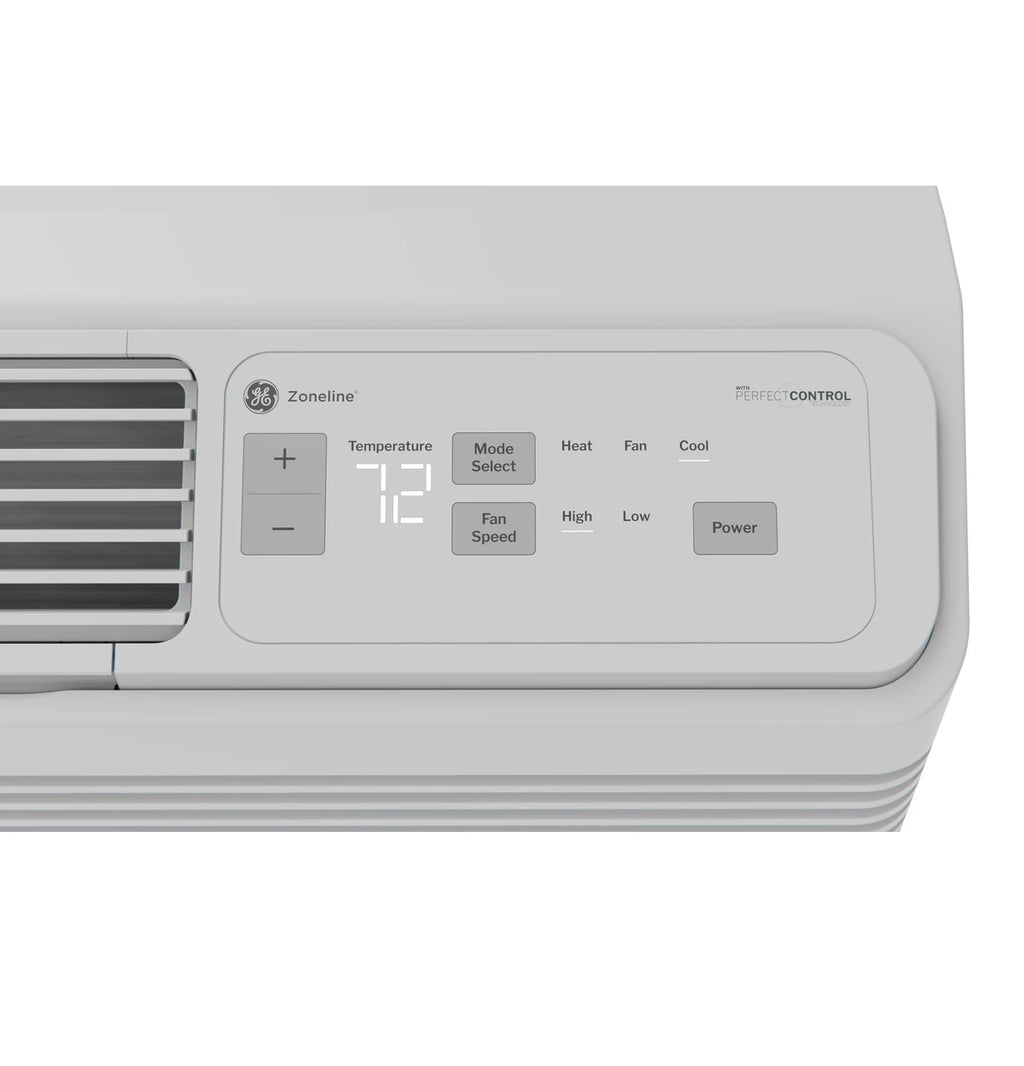

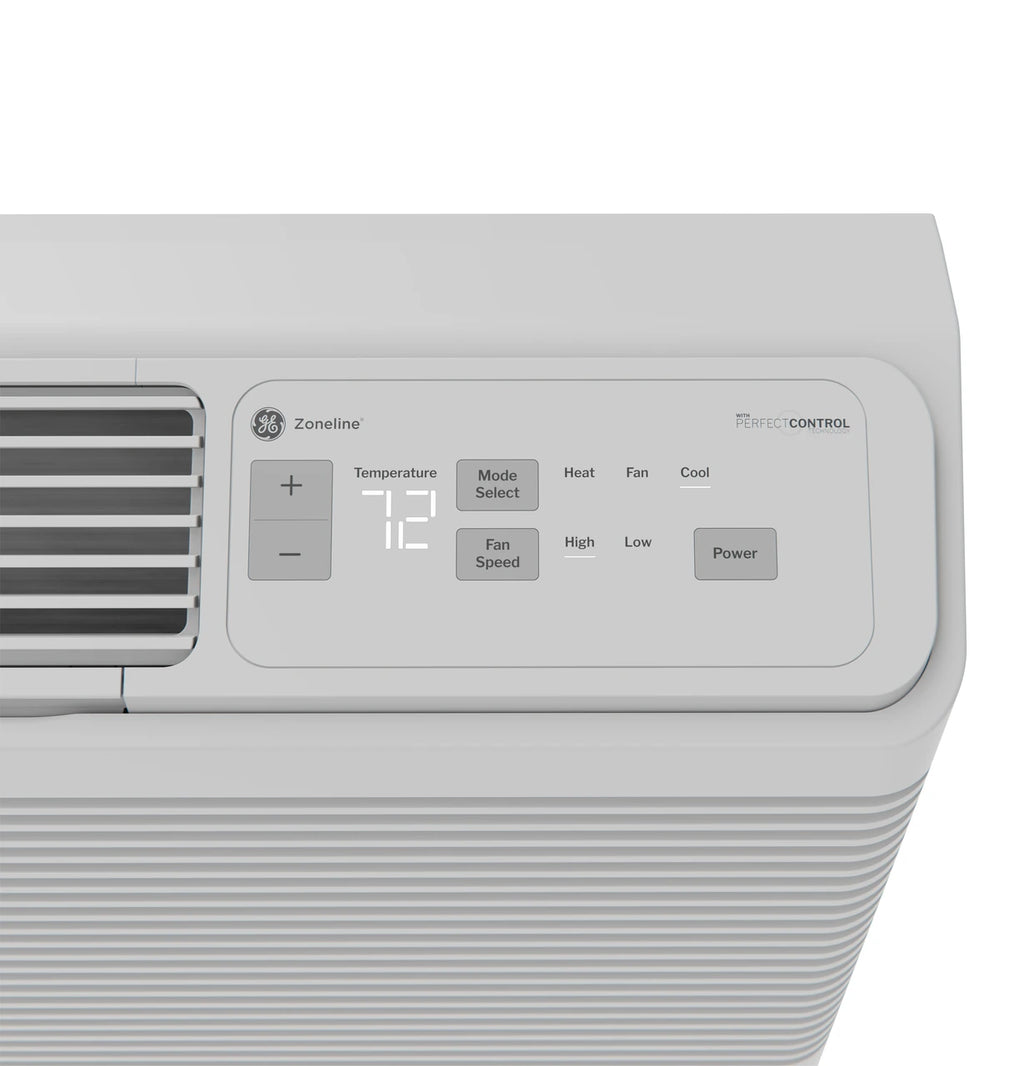

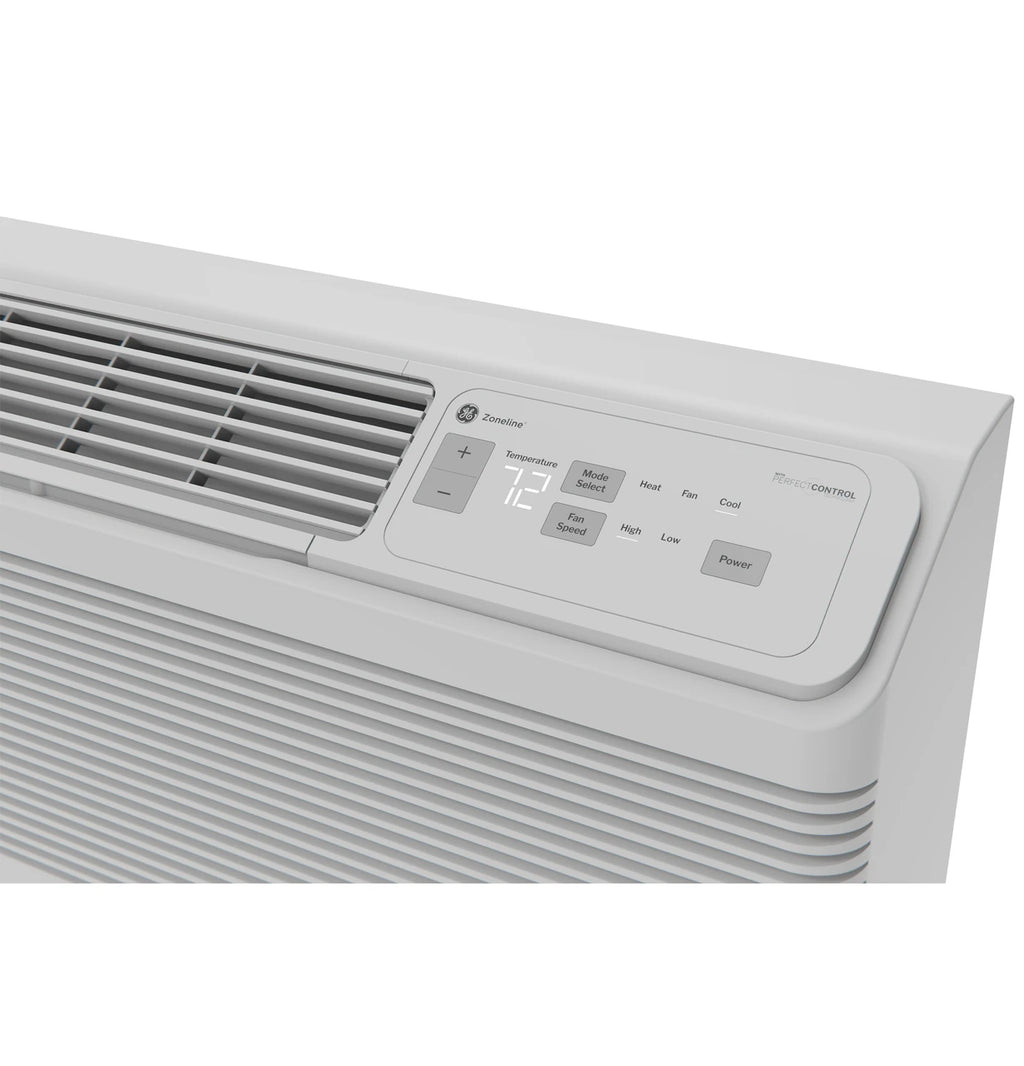

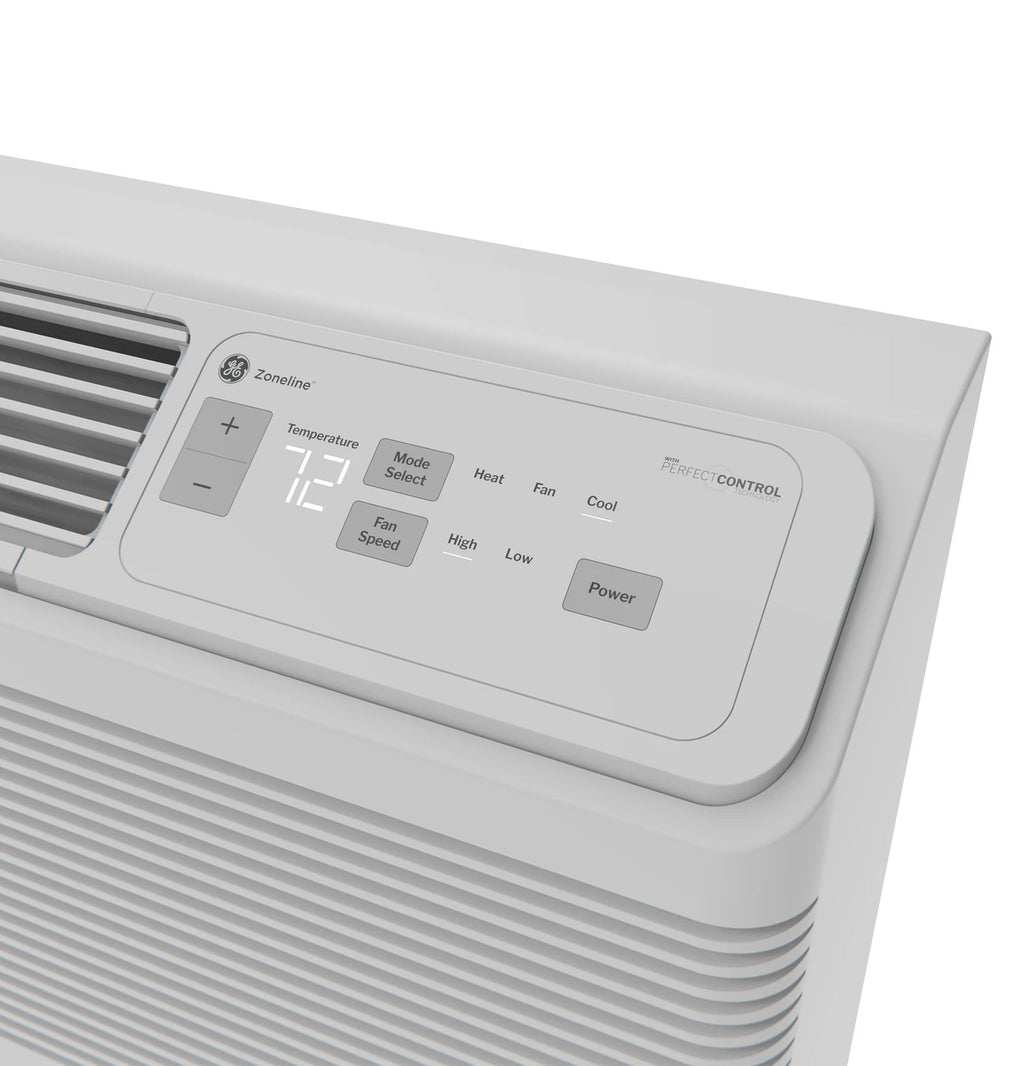

Tactile touch pad with LED Display
Corrosion Treated Yes
Discharge Grille 2-position
Electronic Micro Computer Control Yes
Fan Cycle Switch Yes
Fan Motor 2
EC Controlled
Fan Speed Control Yes
Fan Speed Selections Hi/Low Cooling
Hi/Low Heating
Hi/Low Fan Only
Filter Type Rigid Frame
Slide-Out
Freeze Sentinel Yes
Heat - Cool Yes
Heat Pump Yes
Heat Sentinel Yes
Heating - Reverse Cycle - COP 3 .4
Heating System E Heat/High Demand/Hybrid/Boost/HP Only
HSPF2 Rating 7
Louver Style Reversible
Makeup Air Yes
Manual Vent Control Hidden
Power Factor 95
Product Type Packaged Terminal Air Conditioners (PTAC)
Refrigerant Charge (oz.) 29
Refrigerant Type R454B
Rotary Compressor Yes
SEER2 16
Sensible Heat Ratio 0.75
Temperature Limiting Electronic 24-Step
Temperature Range 60 - 85 F
WiFi Connect Built-In
Zoneline Features "Smart Fan" Fan Cycle Control
Heat Sentinel
Freeze Sentinel
Automatic Indoor Frost Control
Universal Heaters
Auto Power Recovery
Remote Thermostat Compatibility
Central Desk Control Compatibility
Random Twist/Length Segment Tangential Blower

POWER / RATINGS

Cooling - Amperes 5.1
Cooling - Watts 1295
Heating BTUH 4,000 - 14,000
Heating - Electric - Heater Amps 4.5
Heating - Electric - Heater Watts 1165
Voltage (MAX) 265 V

WARRANTY

Labor Warranty Limited 1-year entire appliance
Limited 5-year sealed system
Parts Warranty Limited 2-year entire appliance
Warranty Notes See written warranty for full details

WEIGHTS & DIMENSIONS

Approximate Shipping Weight 123 lb
Net Weight 113 lb
Overall Depth 20.8125 in
Overall Height 16 in
Overall Width 42 in
