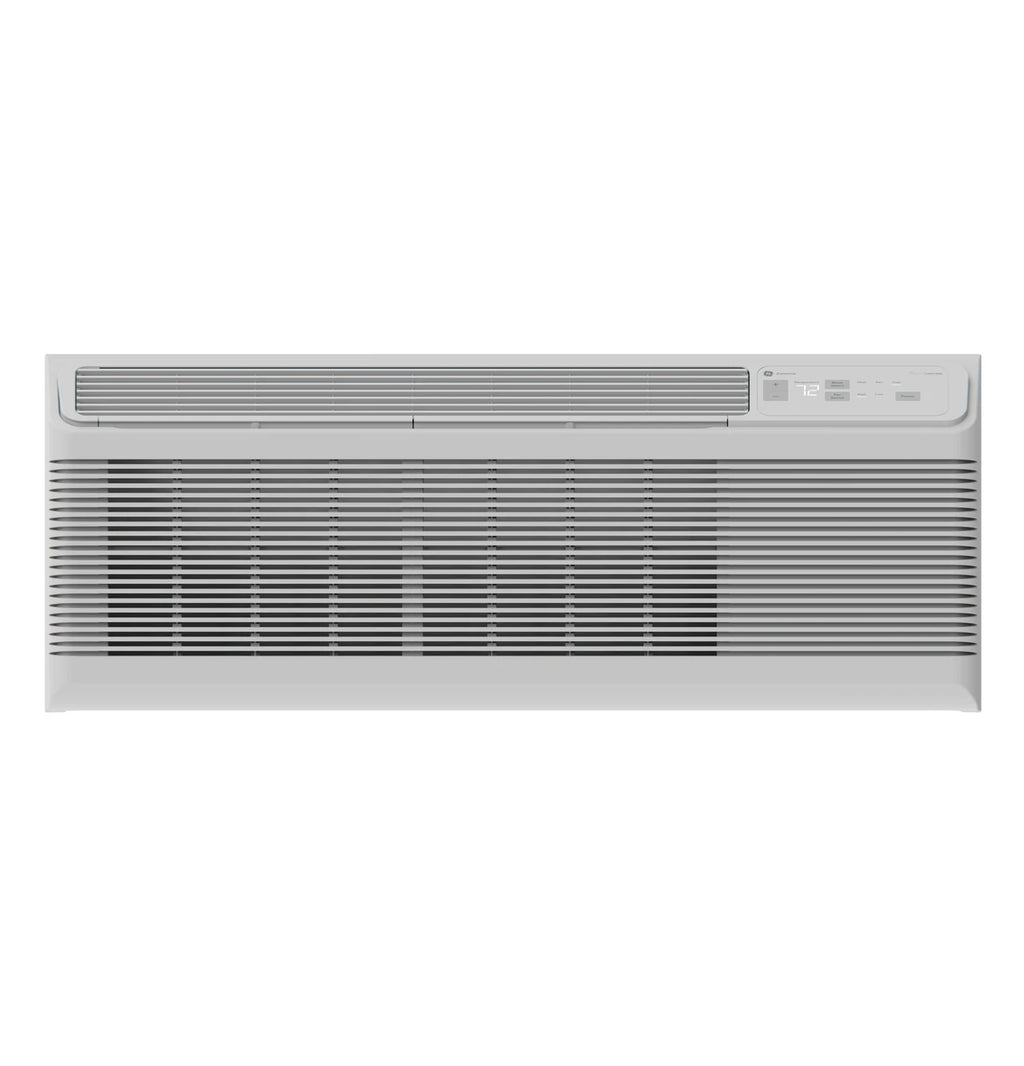

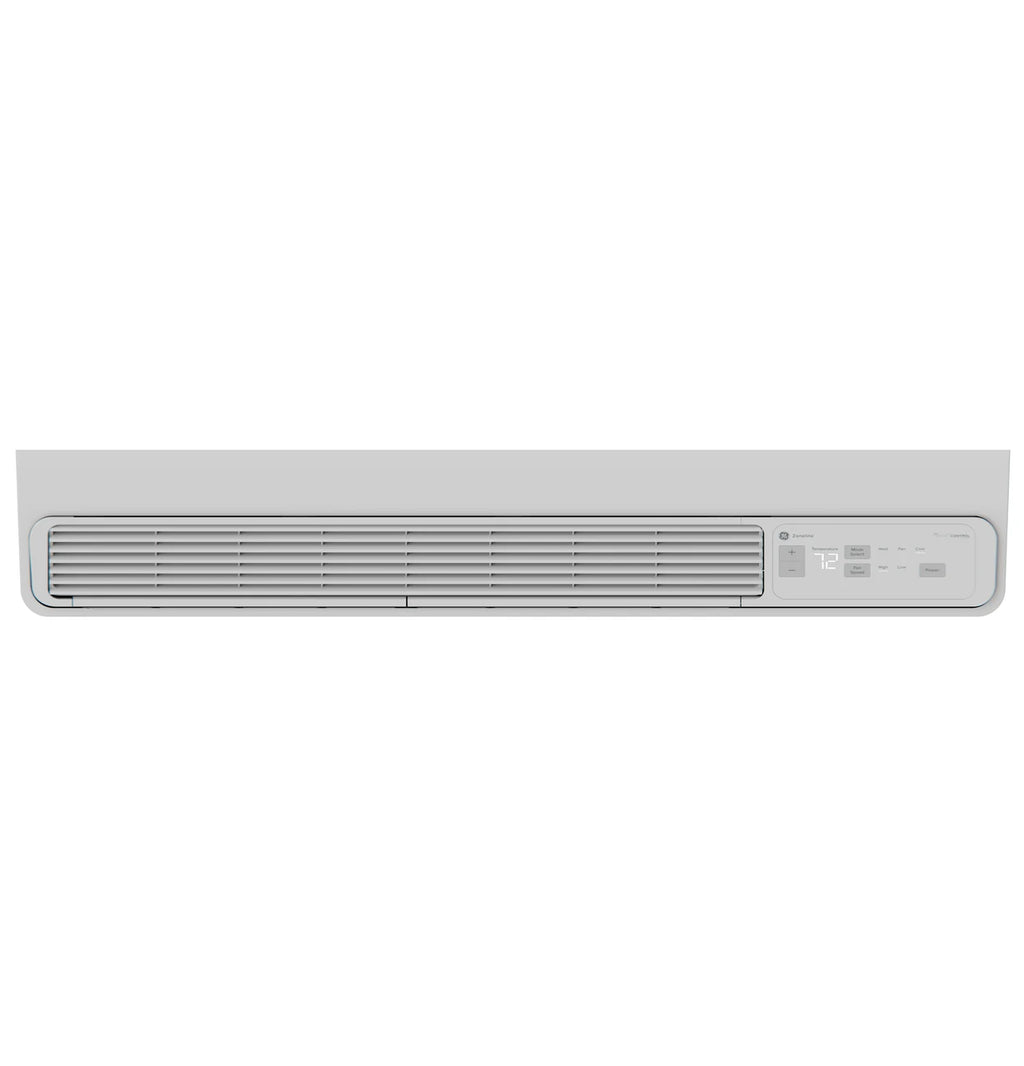

GE Zoneline® Heat Pump Variable Speed Unit with Makeup Air 15,000 BTU, 230/208 Volt

SKU: AZVS15DMQWA

Dimensions: 16 H x 42 W x 20.81 D

Cooling BTU: 15,000 BTU

Voltage: 230/208 Volt

Images are for reference only. Please verify the model number and written specifications on your quote or order confirmation. Ordering information

About This Product

Designed & Assembled in America

Date of Manufacture – 2025 or later

Eco-Friendly Build

Zoneline® Perfect Control units use the most environmentally friendly refrigerants currently offered in PTAC's, helping commercial building meet LEED standards and reduce their environmental footprint
Inverter Technology

Variable speed operation provides an advantage with shorter recovery time, improved efficiency, sound quality and dehumidification
Efficient cold weather heat pump

Advanced defrost capability allows for extended heat pump down to 0°F
New Upgraded Appearance

New grey white chassis color will compliment any installation and room décor. Easy-to-read interface makes navigation simple.
Whisper Quiet Operation

Large cross-flow blower, a variable speed compressor and two EC motors work together to minimize noise and maximize comfort.
Industry Leading Performance

Perfect Control technology senses temperature and humidity onboard the unit and occupancy via optional wall thermostats. Proprietary heat load algorithms sense room size to automatically adjust output and target comfortable humidity levels.
Best-In-Class Reliability

With over 1 million units installed, Zoneline® PTACs offer unrivaled reliability backed by a dedicated service network and field team that helps you stay up and running
Unmatched Durability

All Zoneline® units are made of the highest quality material and tested in extreme environments to ensure they operate at peak performance, season after season
Adjustable Speed Makeup Air

Makeup Air with customizable variable speed fan technology provide the precise airflow for specific applications. For energy savings, Makeup air delivery can be cycled based on occupancy, using a compatible occupancy detecting thermostat.

Outfitting multiple rooms? Request a quote and our team will confirm pricing, availability and freight to your property.

Specs & Details

Dimensions: 16 H x 42 W x 20.81 D

ACCESSORIES

Accessories Required for Installation

Outdoor Grille

FEATURES

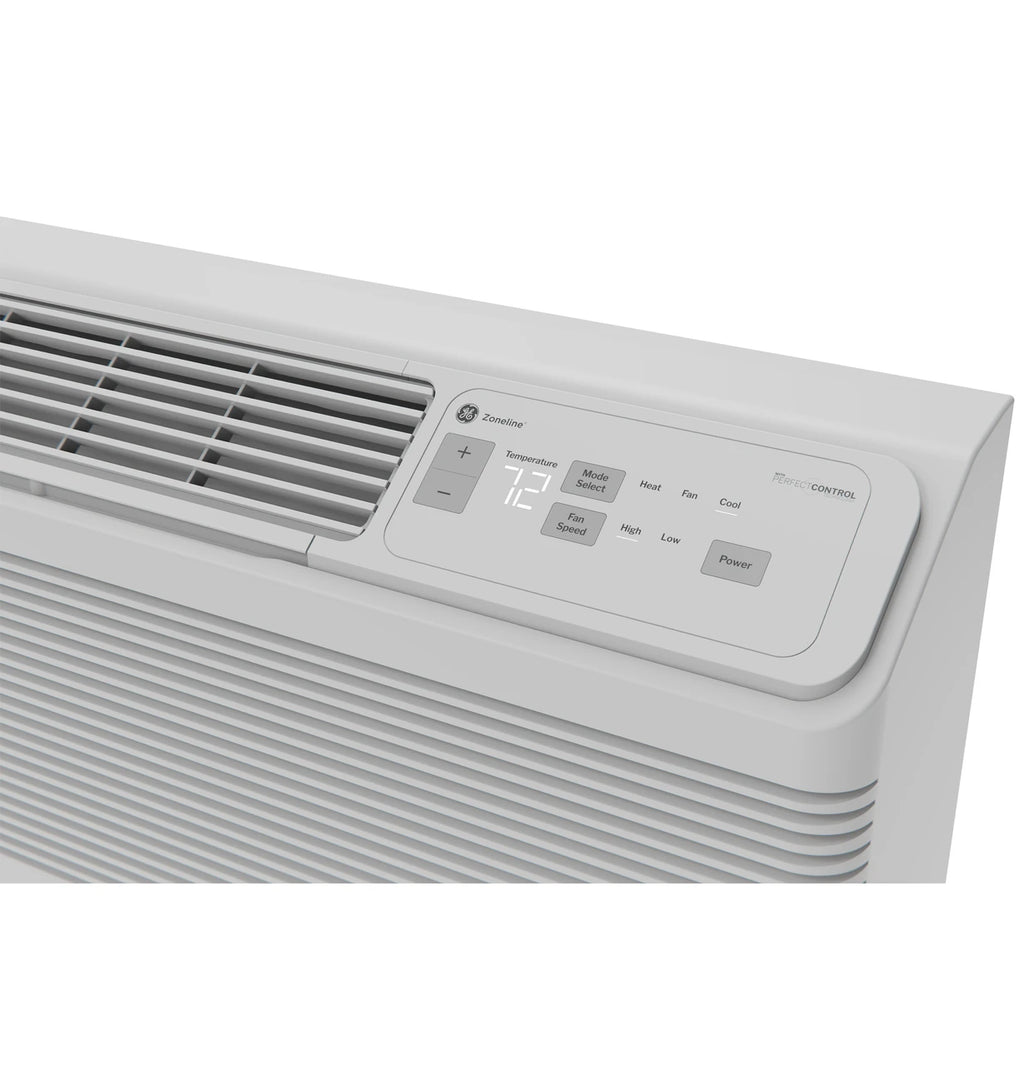

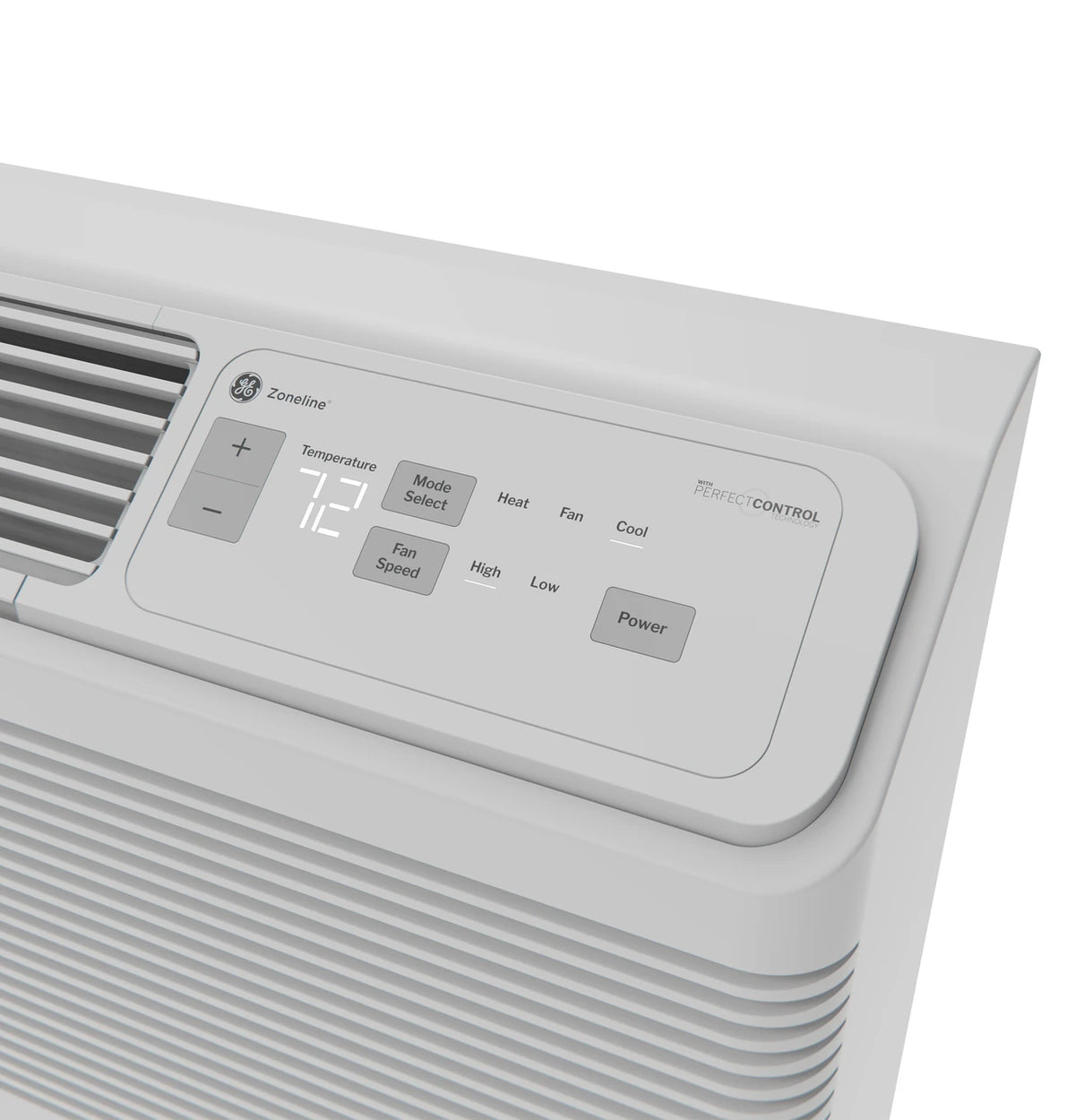

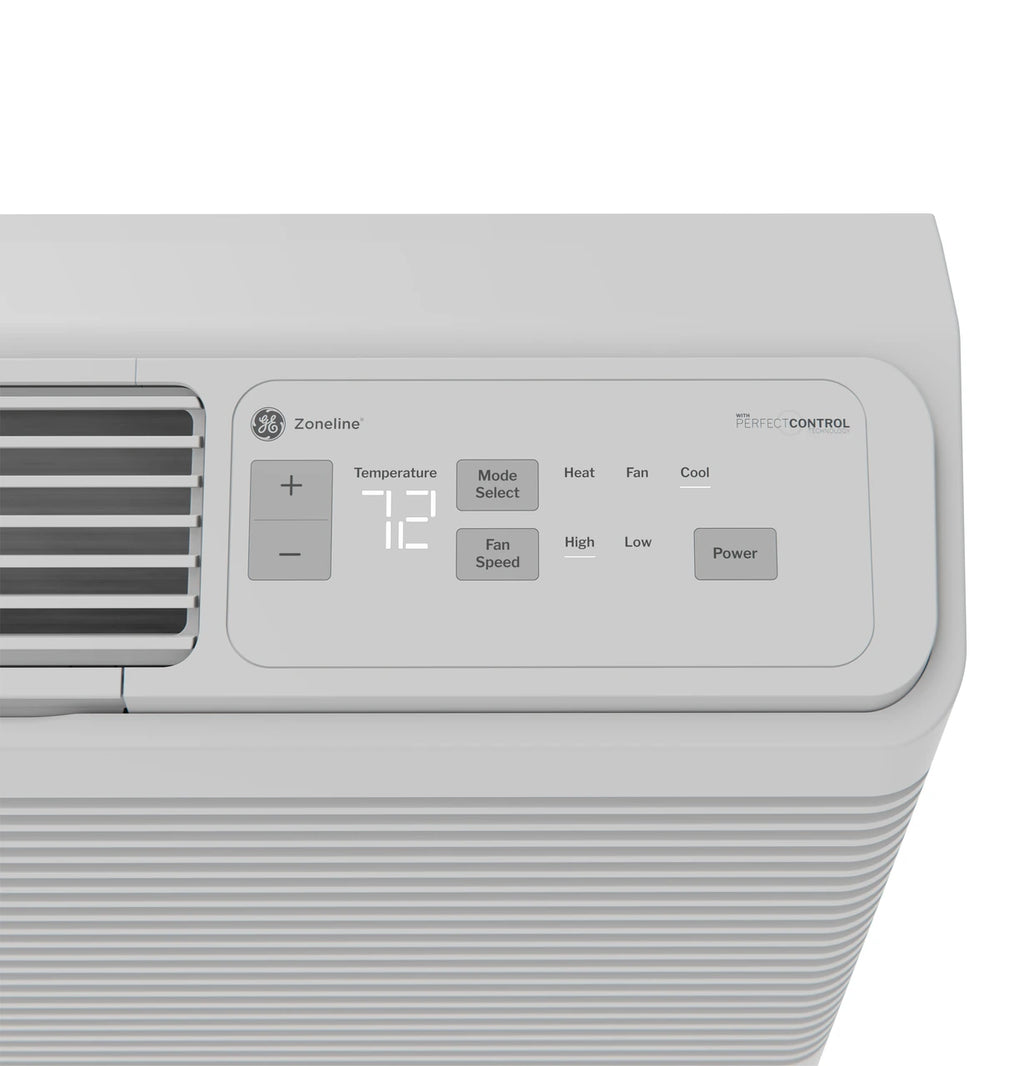

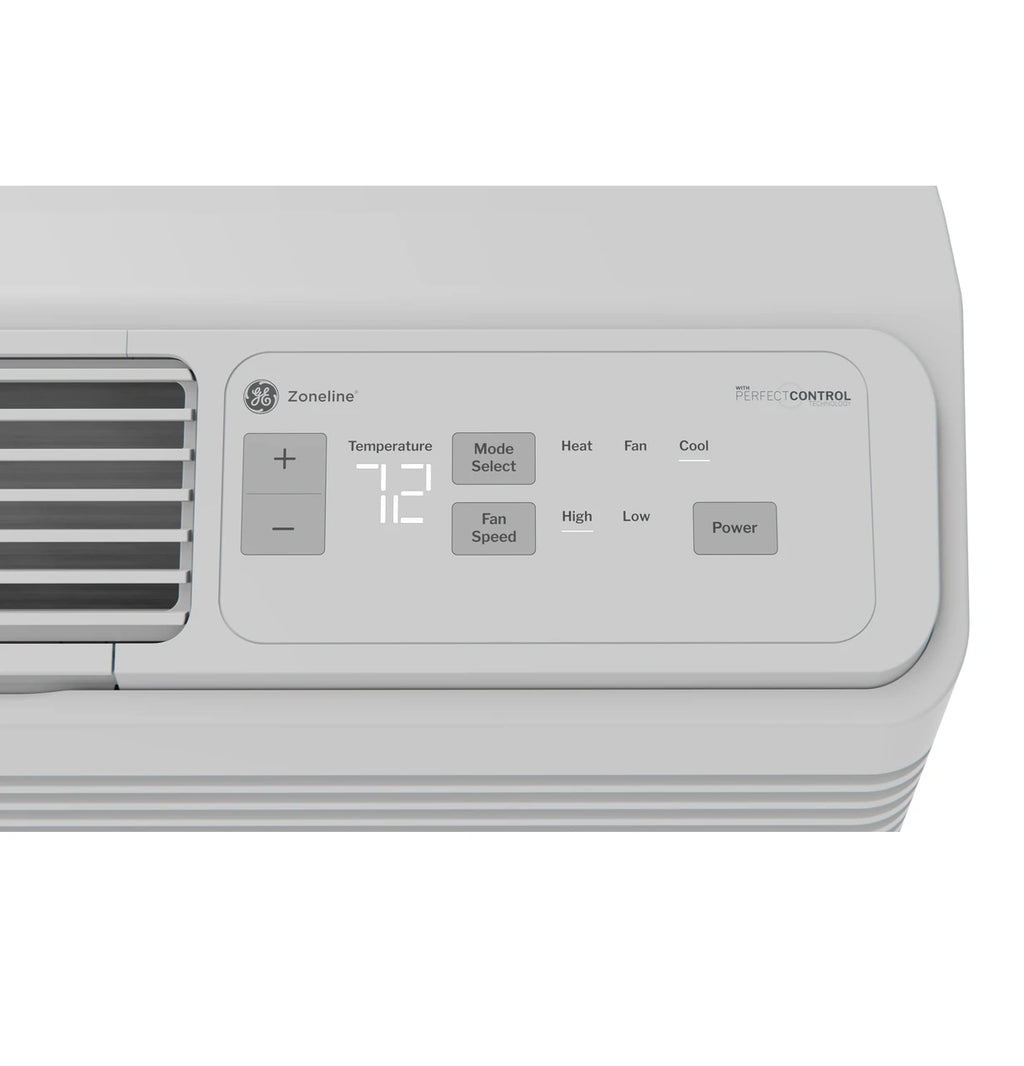

Control Type	Standard Microcomputer Tactile touch pad with LED Display
Electronic Micro Computer Control	Yes
Fan Motor	2 EC Controlled
Filter Type	Rigid Frame Slide-Out
Heat Pump	Yes
Heating System	E Heat/High Demand/Hybrid/Boost/HP Only
Temperature Limiting	Electronic 24-Step
Zoneline Features	Universal Heaters Auto Power Recovery Remote Thermostat Compatibility Central Desk Control Compatibility Random Twist/Length Segment Tangential Blower

WARRANTY

Labor Warranty	Limited 1-year entire appliance Limited 5-year sealed system
Parts Warranty	Limited 2-year entire appliance
Warranty Notes	See written warranty for full details
