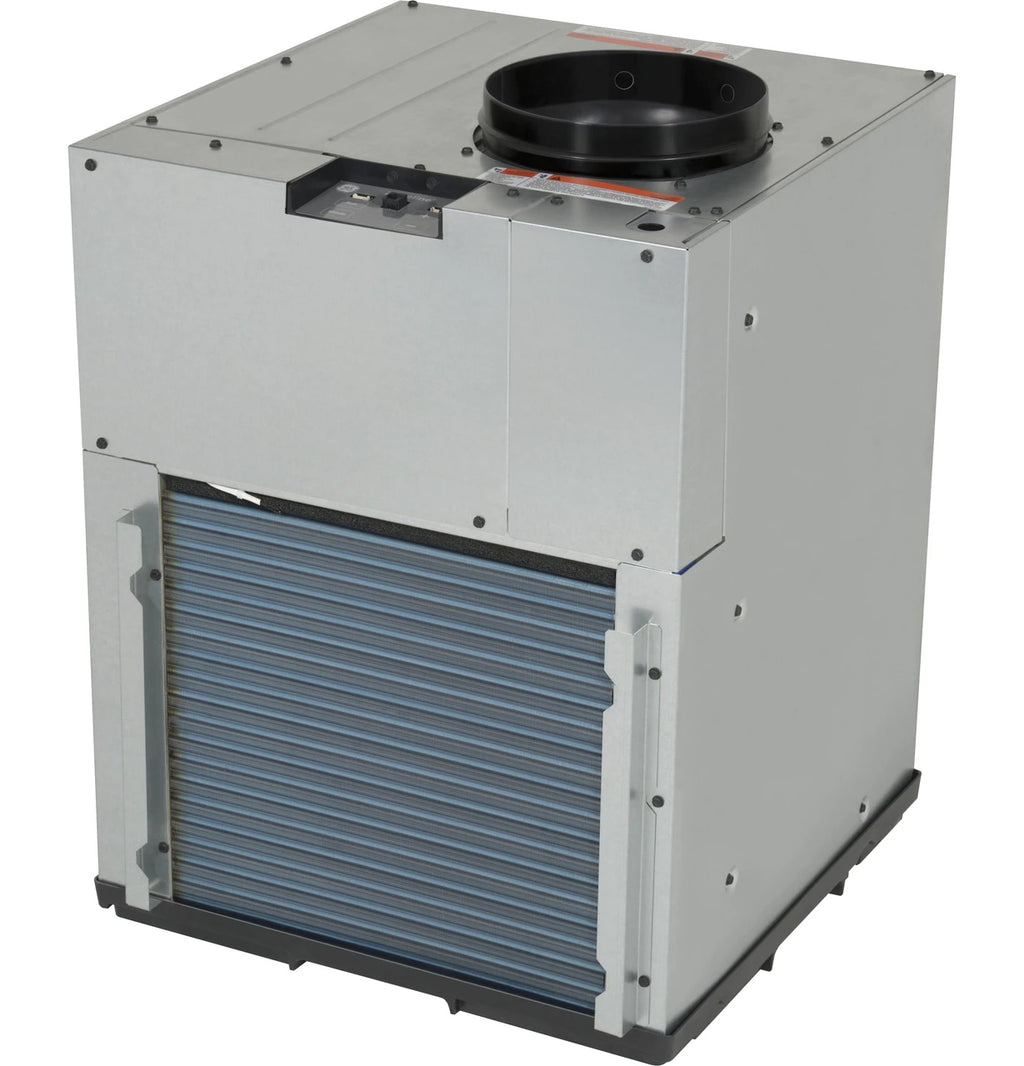

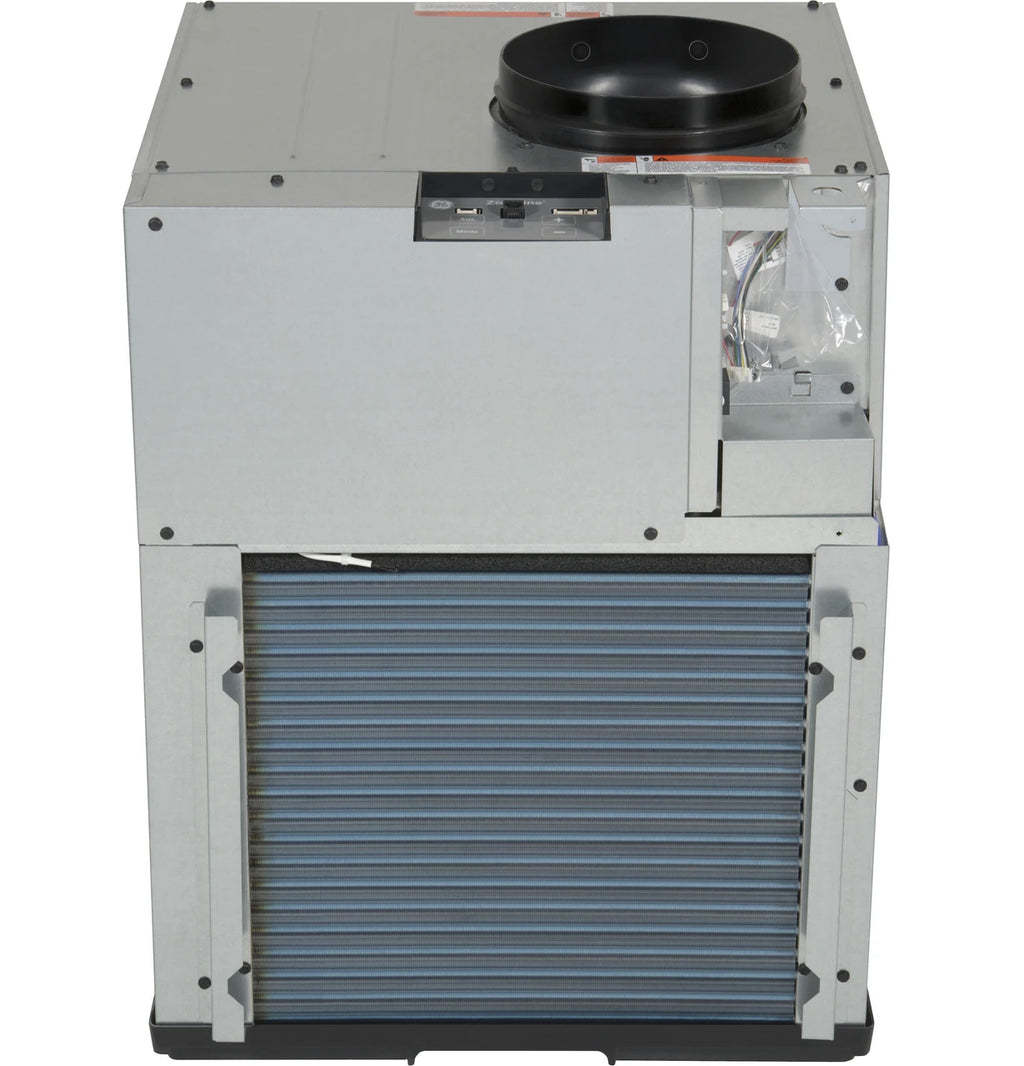

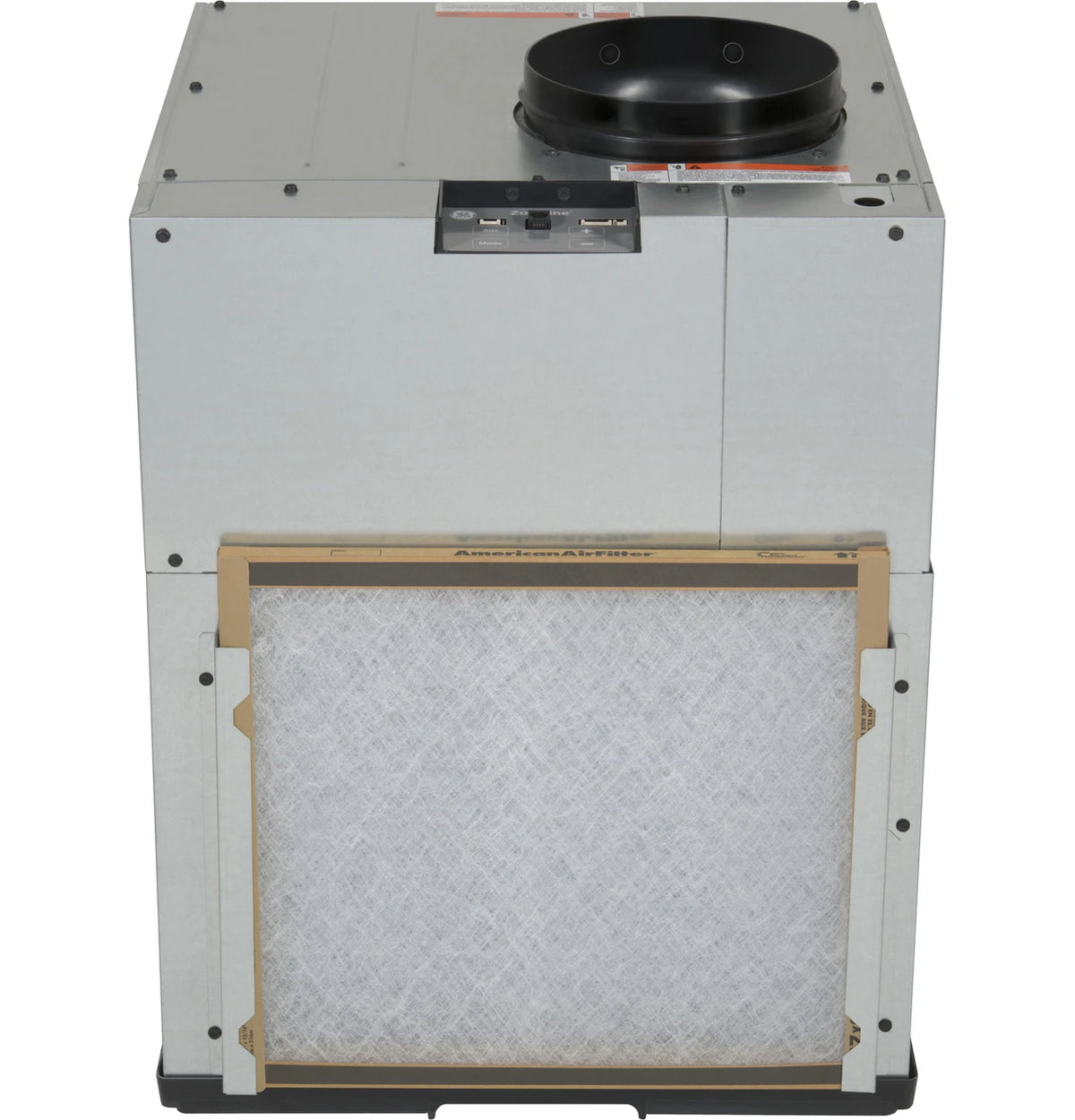

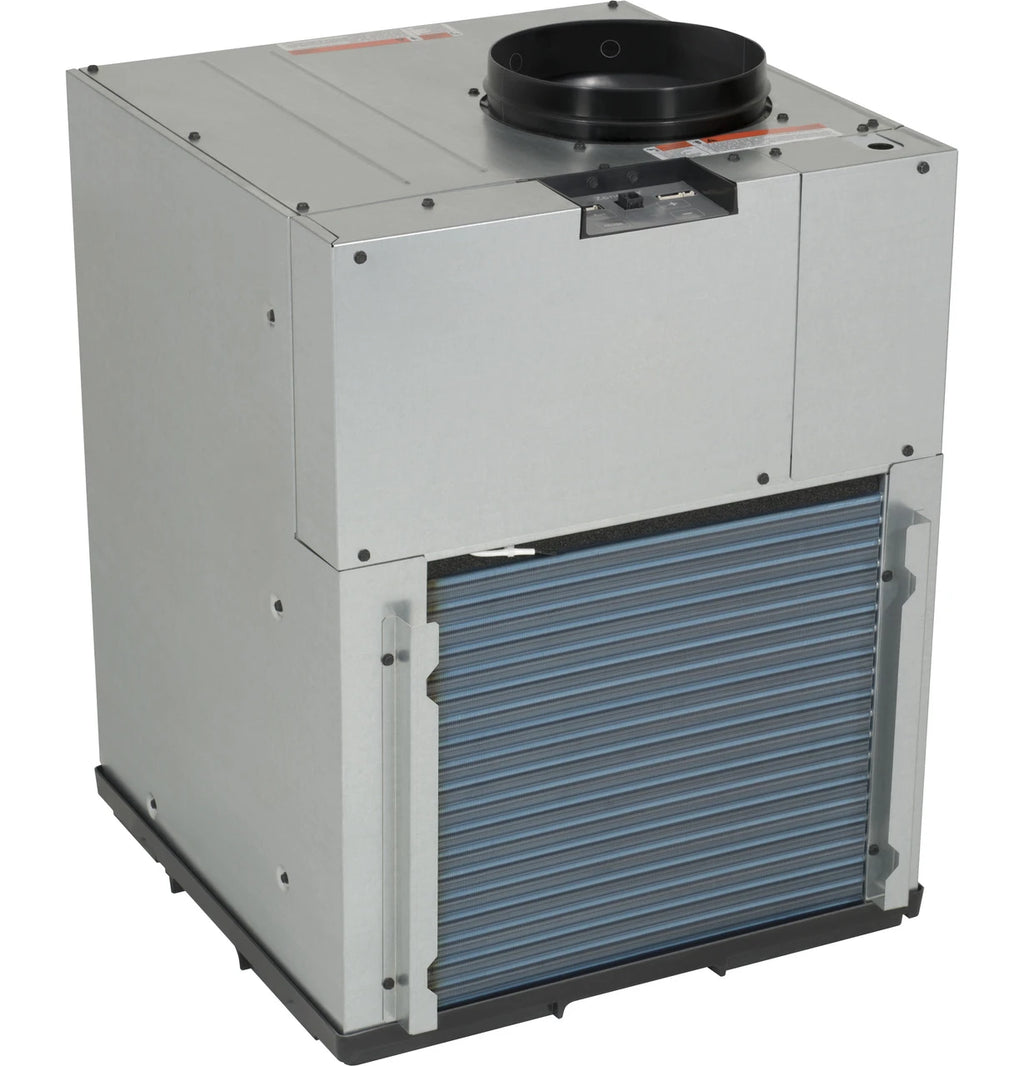

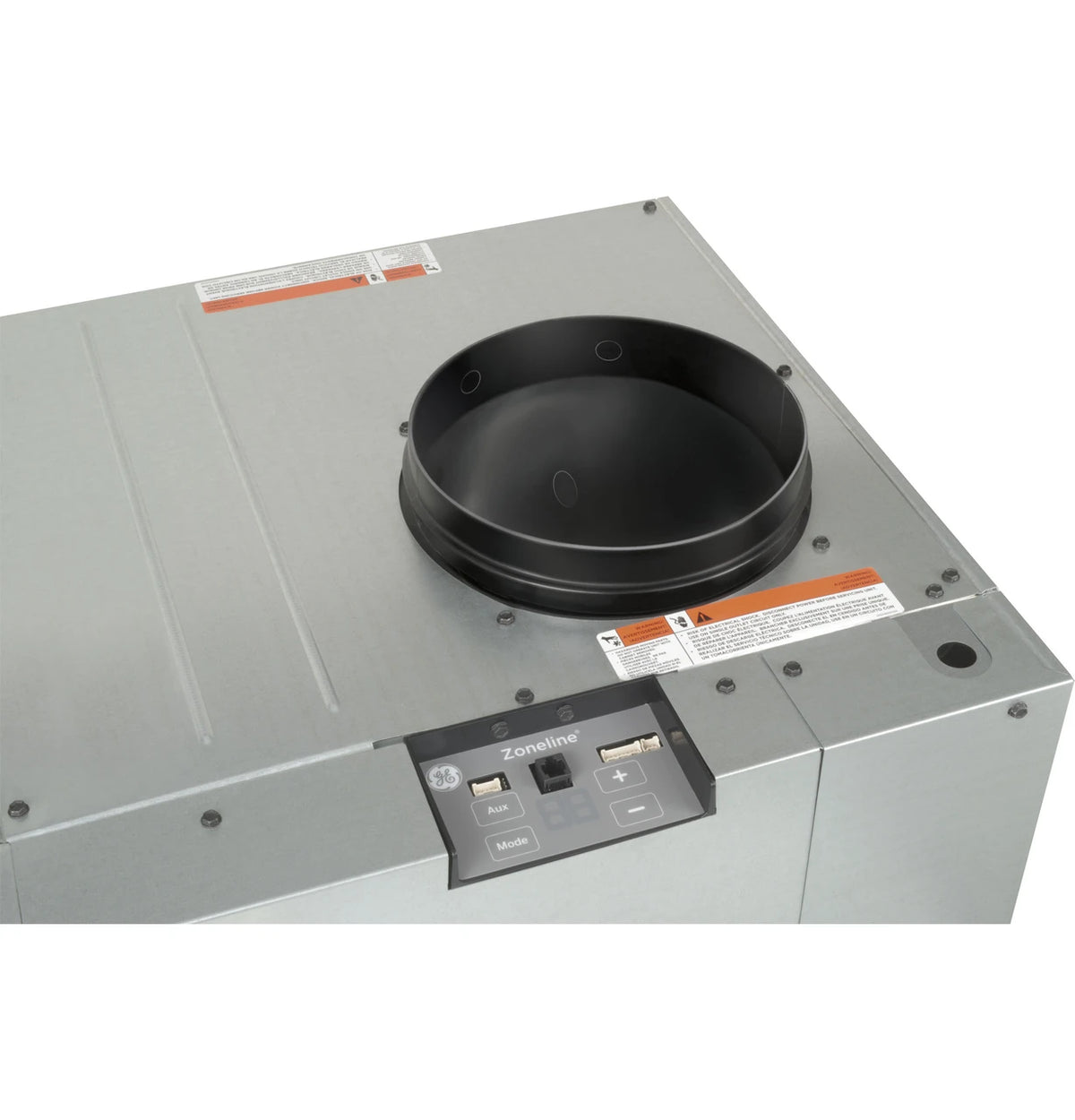

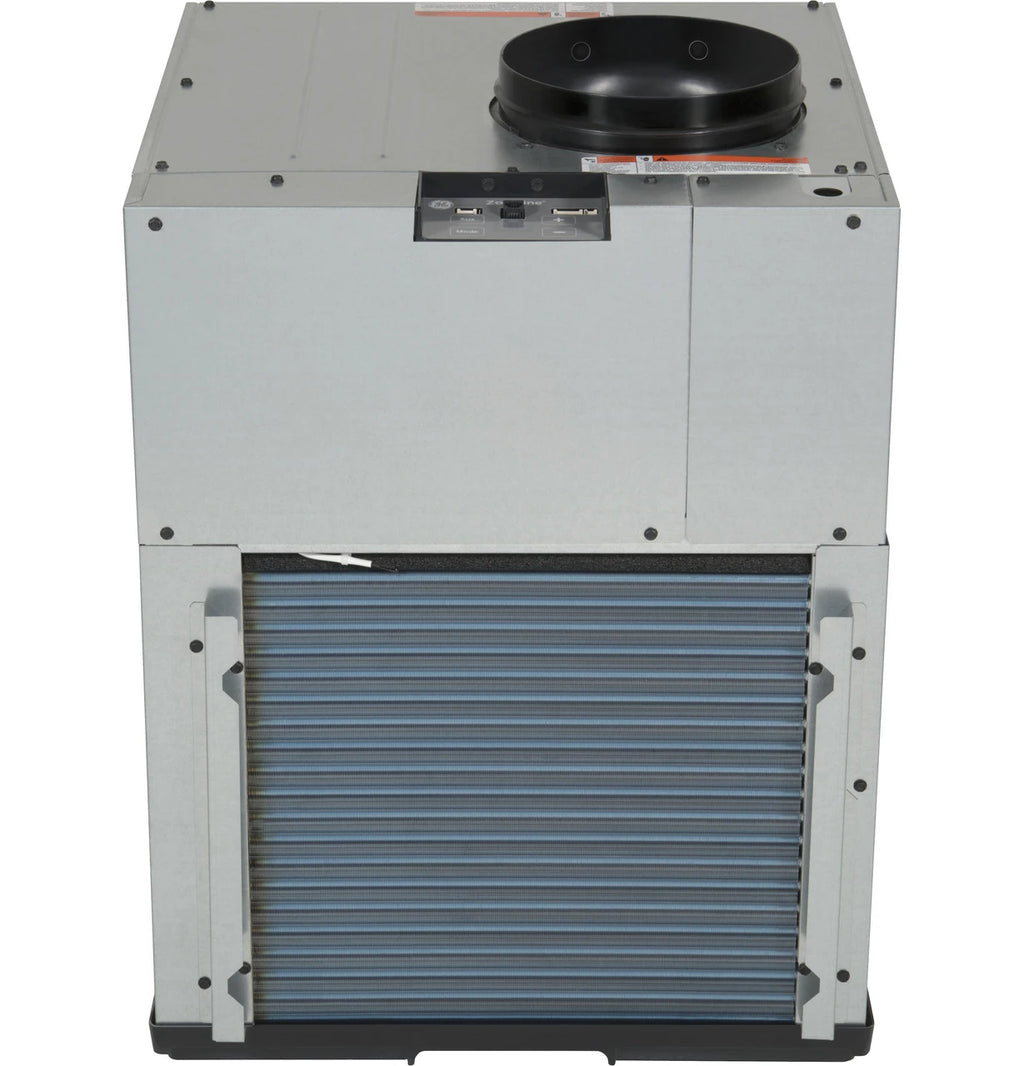

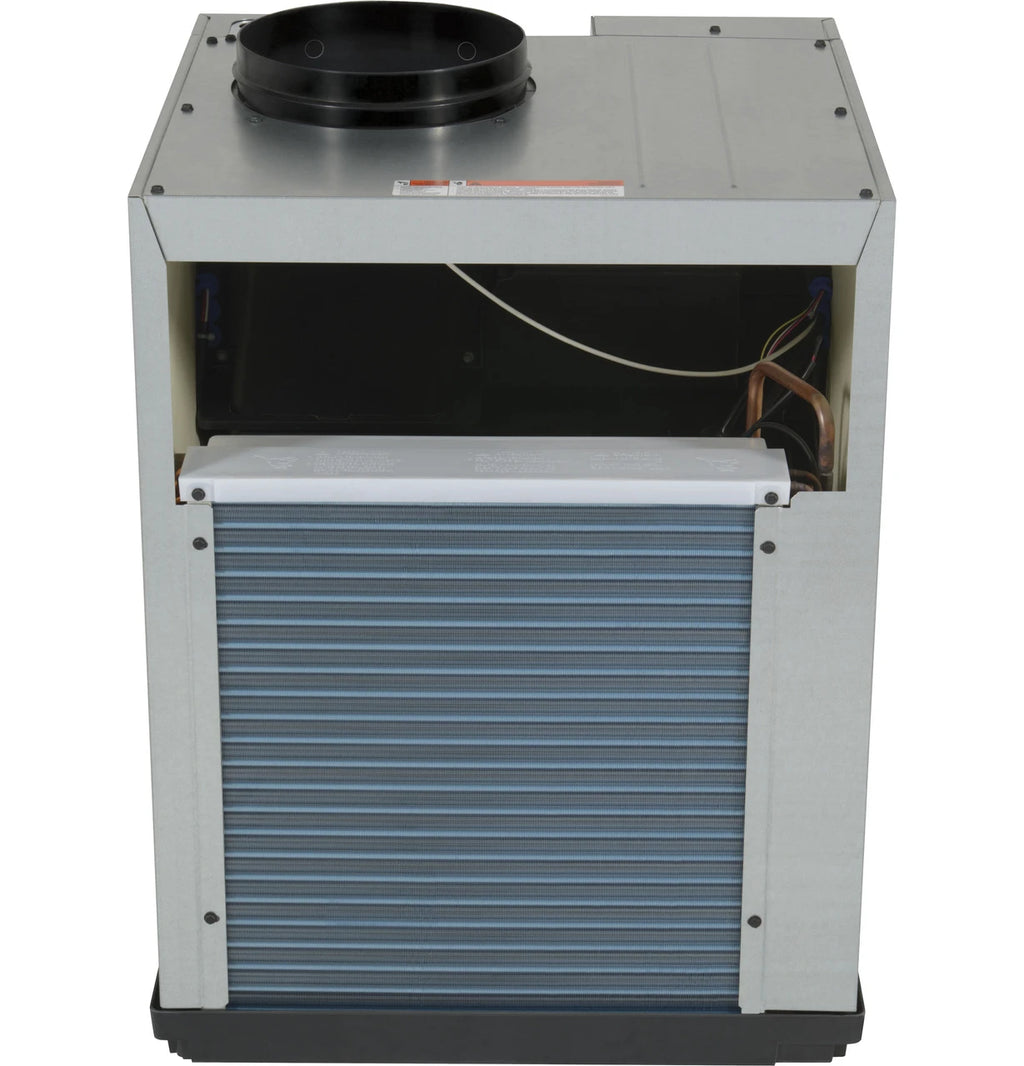

GE Zoneline® UltimateV10™ Cool/Electric Resistance Heat Vertical Air Conditioner 12,000 BTU, 230/208 Volt

SKU: AZ95E12DAC

Dimensions: 31.875 H x 23.625 W x 24.125 D

Cooling BTU: 12,000 BTU

Voltage: 230/208 Volt

Images are for reference only. Please verify the model number and written specifications on your quote or order confirmation. Ordering information

About This Product

Designed & Assembled in America

Insta-Platform™

One-piece design fully integrates with the wall plenum and aligns for a tight seal. Eliminates need for a customized platform construction on site
Self-Contained Drainage System

Easy installation and simple chassis removal while leaving plumbing completely intact
Fast-Connect Plumbing

Thoughtful design enables platform build and rough plumbing completed in only minutes
Quick-Install Plenum

Plenum is easily installed from the interior of building, without the need for exterior building access (caulking required)
Self-aligning, lock in place system

Perfect fit and mistake proof when the chassis is placed on the platform

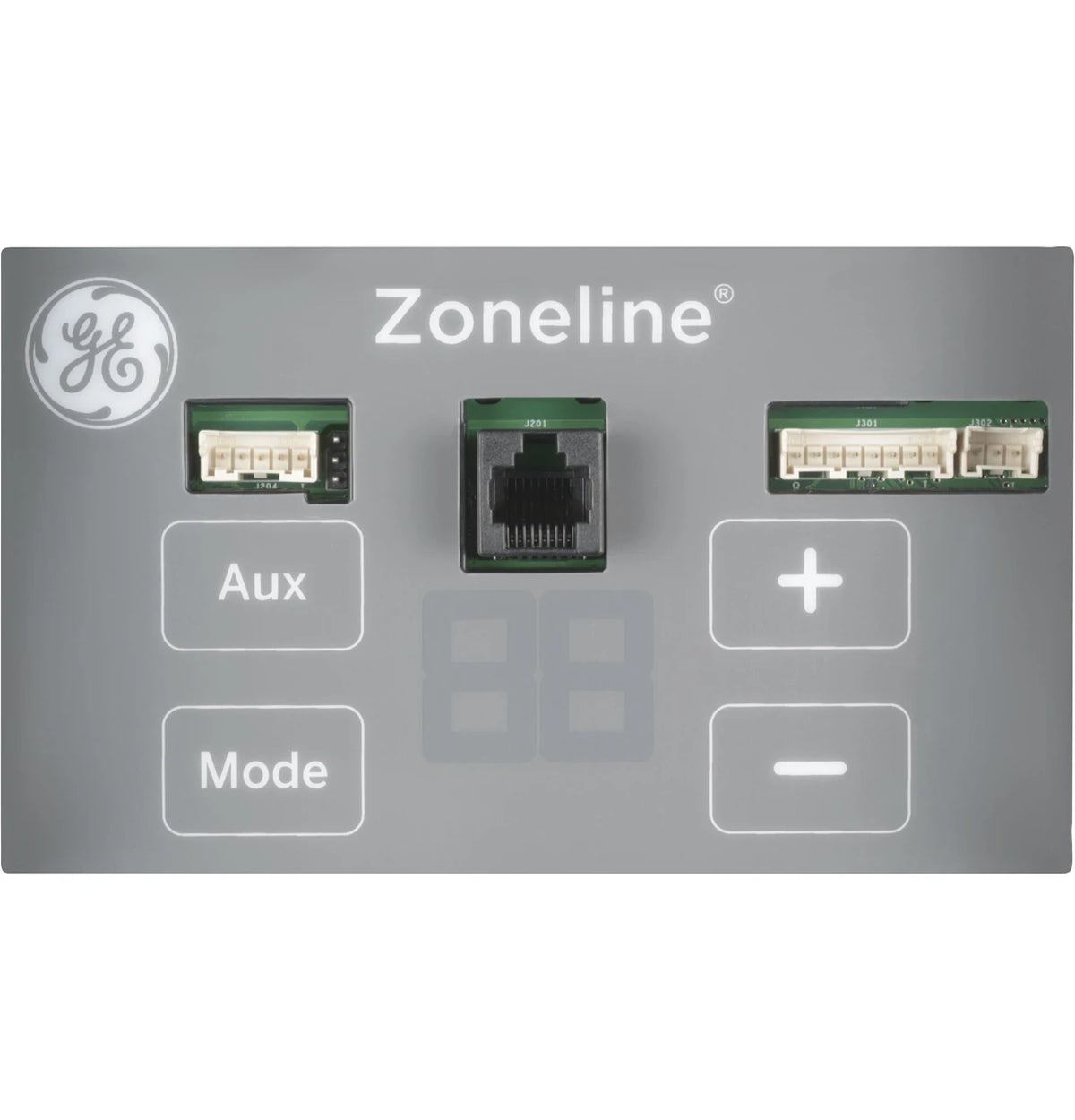

Onboard Diagnostics

Electronic controls give clear and fast diagnostics data and fault codes, for quick and easy notifications
Anti-Corrosion Design

Exclusive rust-proof basepan and bulkhead provide another level of corrosion protection
Ultra-Quiet

Delivers quiet cooling power with a smooth sound for a good night’s sleep
SmartHQ WiFi capability

An optional WiFi module gives property managers the ability to oversee units, increasing productivity and enhancing guests’ experience

Outfitting multiple rooms? Request a quote and our team will confirm pricing, availability and freight to your property.

Specs & Details

Dimensions: 31.875 H x 23.625 W x 24.125 D

ACCESSORIES

Accessories Required for Installation

Outdoor Grille - RAVAL3
Plenum - RAVWPT15 or RAVTRANS2, 3, 4
RAVDPLAT
Wall Thermostat - RAK149F2, RAK149P2, RAK180W1
Return Air Grille - RAVRG4, RAVRG2

APPEARANCE

Color Appearance

White

CAPACITY

CFM Indoor Fan Low	356
CFM Indoor Fan Medium	408
Cooling BTUH (MIN)	11,500
Cooling EER (BTUH / Watt)	12.1
Dehumidification (pts./hr.)	2.8

FEATURES

Central Desk Control Compatibility	Yes
Corrosion Treated	Yes
Fan Speed Selections	3 Cooling
Freeze Sentinel	Yes
Heat Sentinel	Yes
Heating System	Electric Resistance
Power Connection Kit	RAK3XXD Series
Product Type	Vertical Air Conditioners
Refrigerant Type	R410A
Remote Thermostat	RAK149F2, RAK149P2, RAK180W1
Rotary Compressor	Yes
Sensible Heat Ratio	73%
VTAC Features	Chassis Design with Perfect Fit to Insta-Platform™ and Quick-Install Plenum (sold separately) Auto Compressor Random Restart Automatic Indoor Frost Control Freeze Sentinel Heat Sentinel Thermostat Quick Disconnect Self-Contained Drainage System Fast-Connect Plumbing Self-Aligning, Lock In Place Platform System Onboard Electronic Error Diagnostics Reverse Cycle Defrost Anti-Corrosion Design Ultra-Quiet SmartHQ WiFi Capability

POWER / RATINGS

Cooling - Amperes	4.3
Cooling - Watts	940
Voltage (MAX)	230 V
Voltage (MIN)	208 V

WARRANTY

Labor Warranty	Limited 1-year entire appliance Limited 5-year sealed system
Parts Warranty	Limited 2-year entire appliance
Warranty Notes	See written warranty for full details
