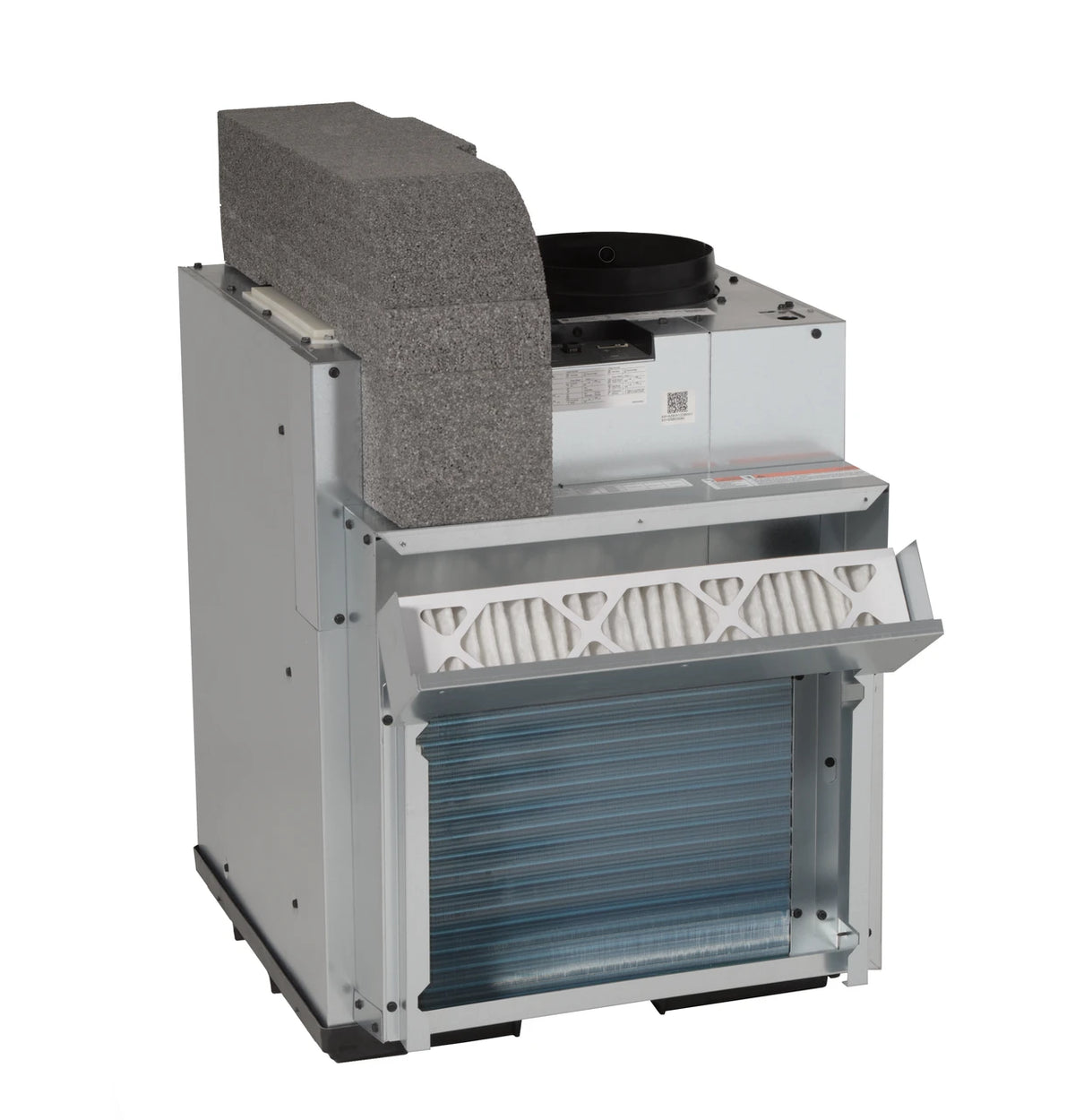

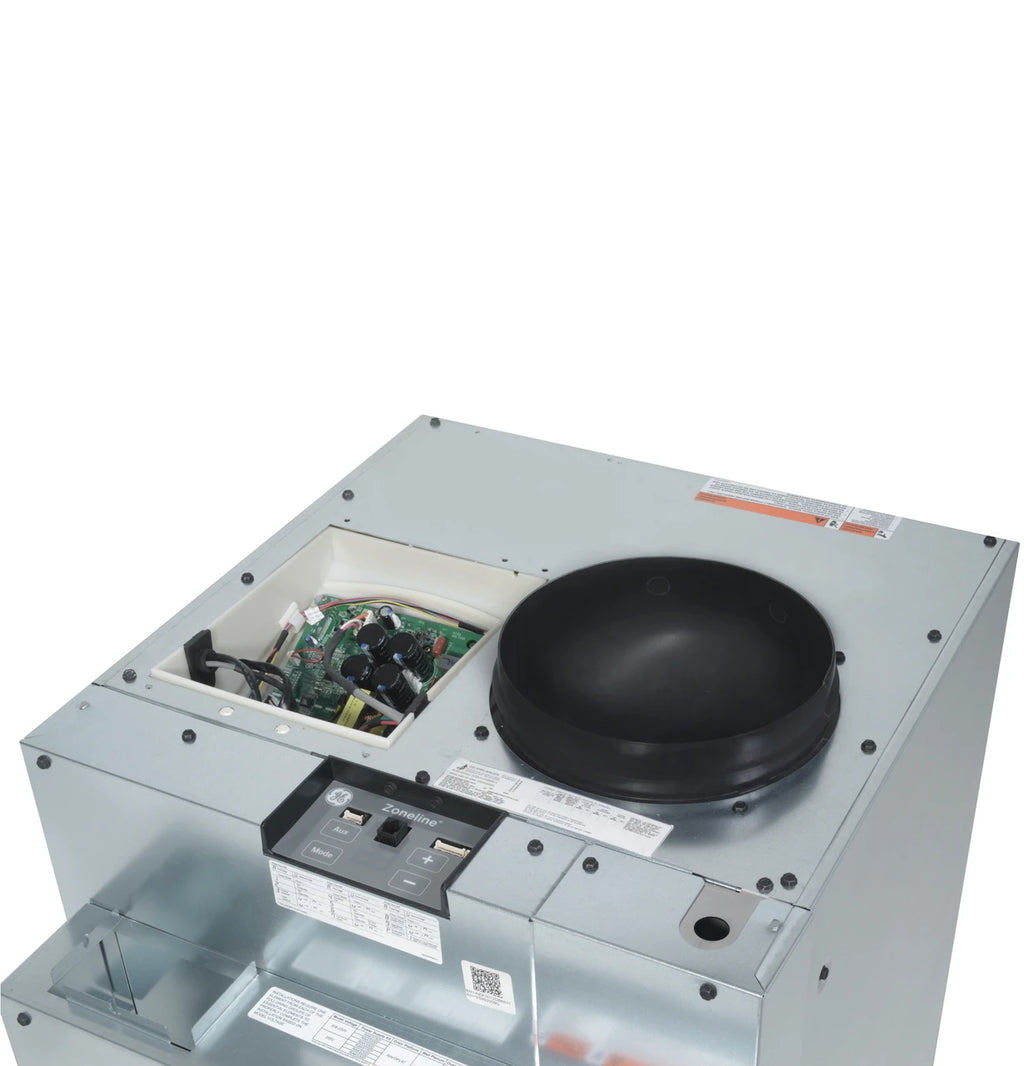

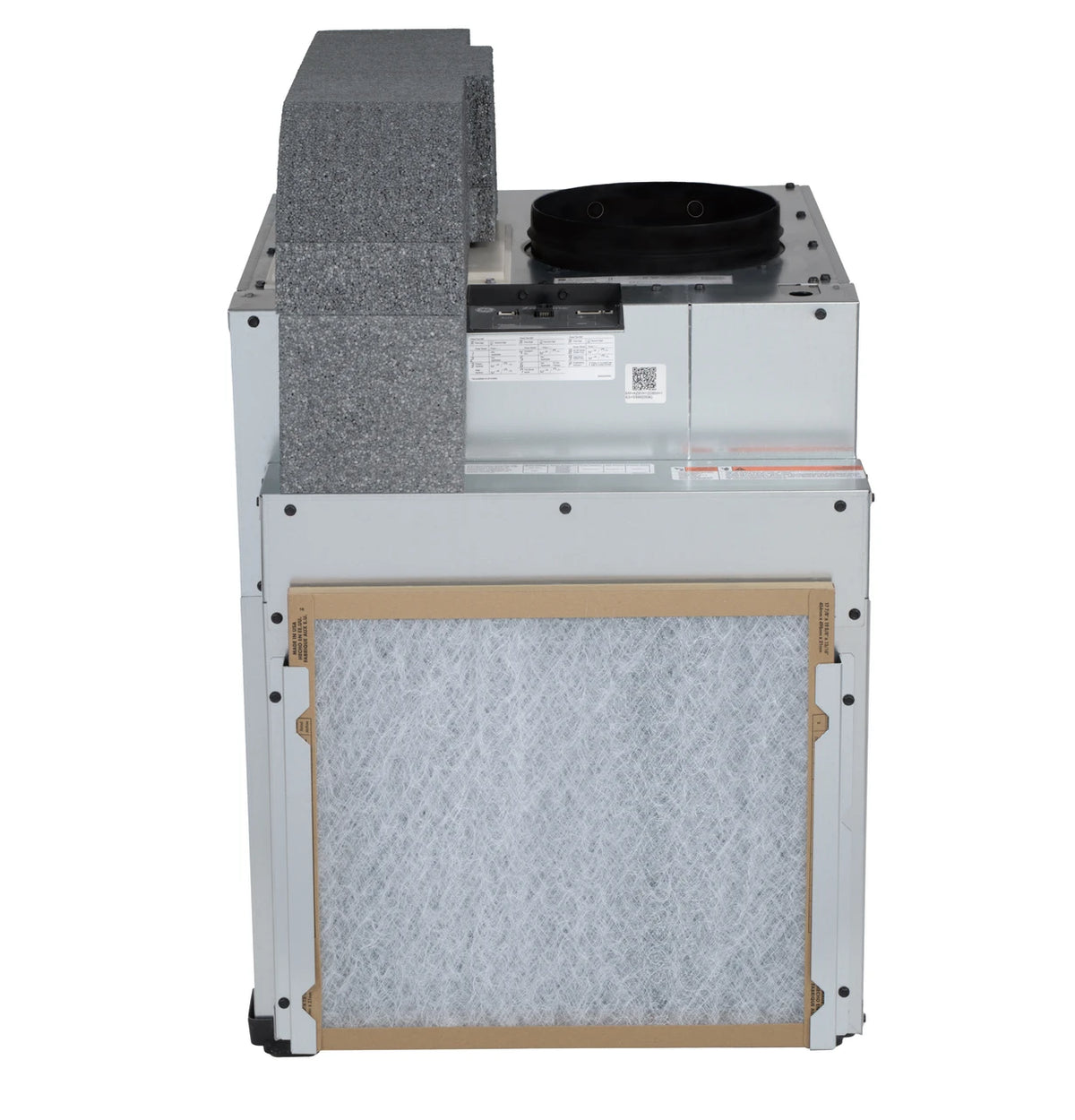

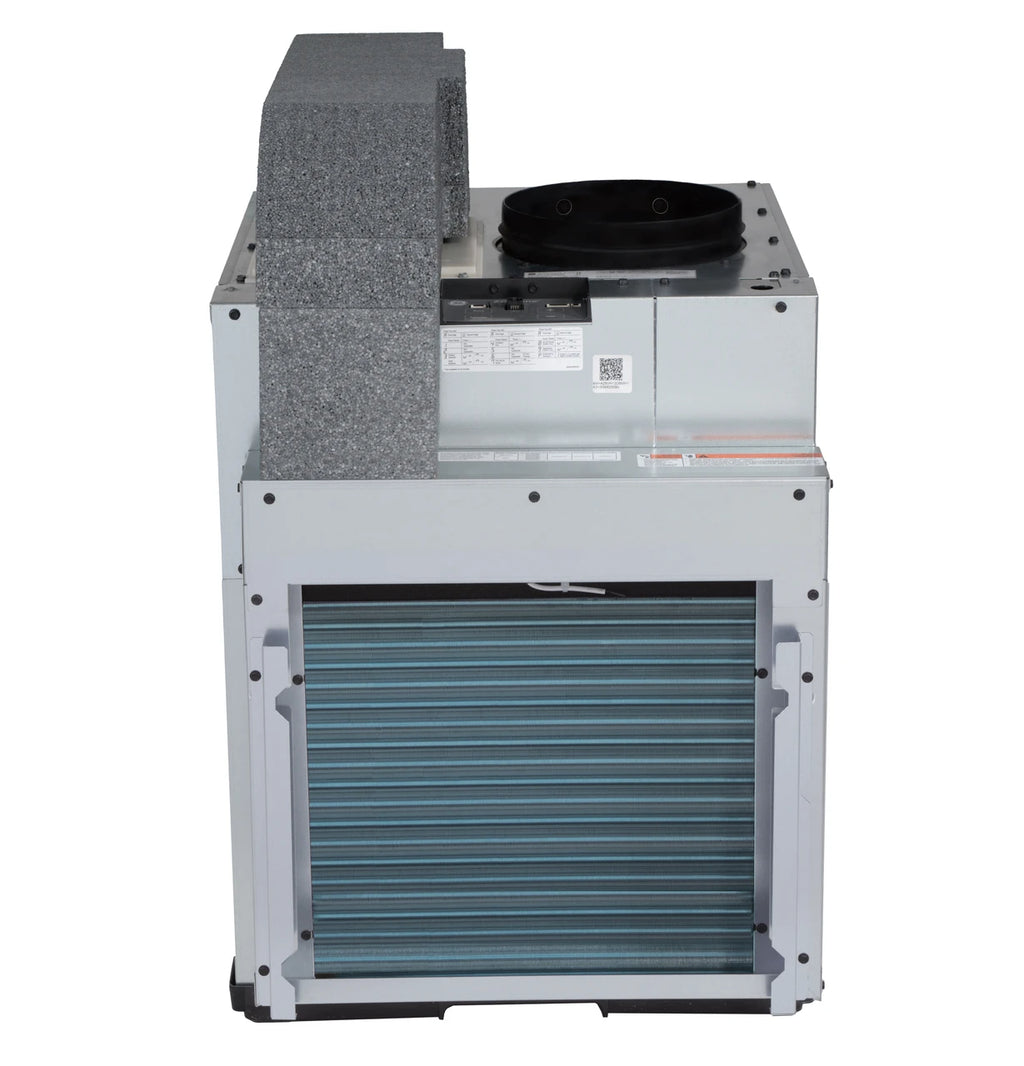

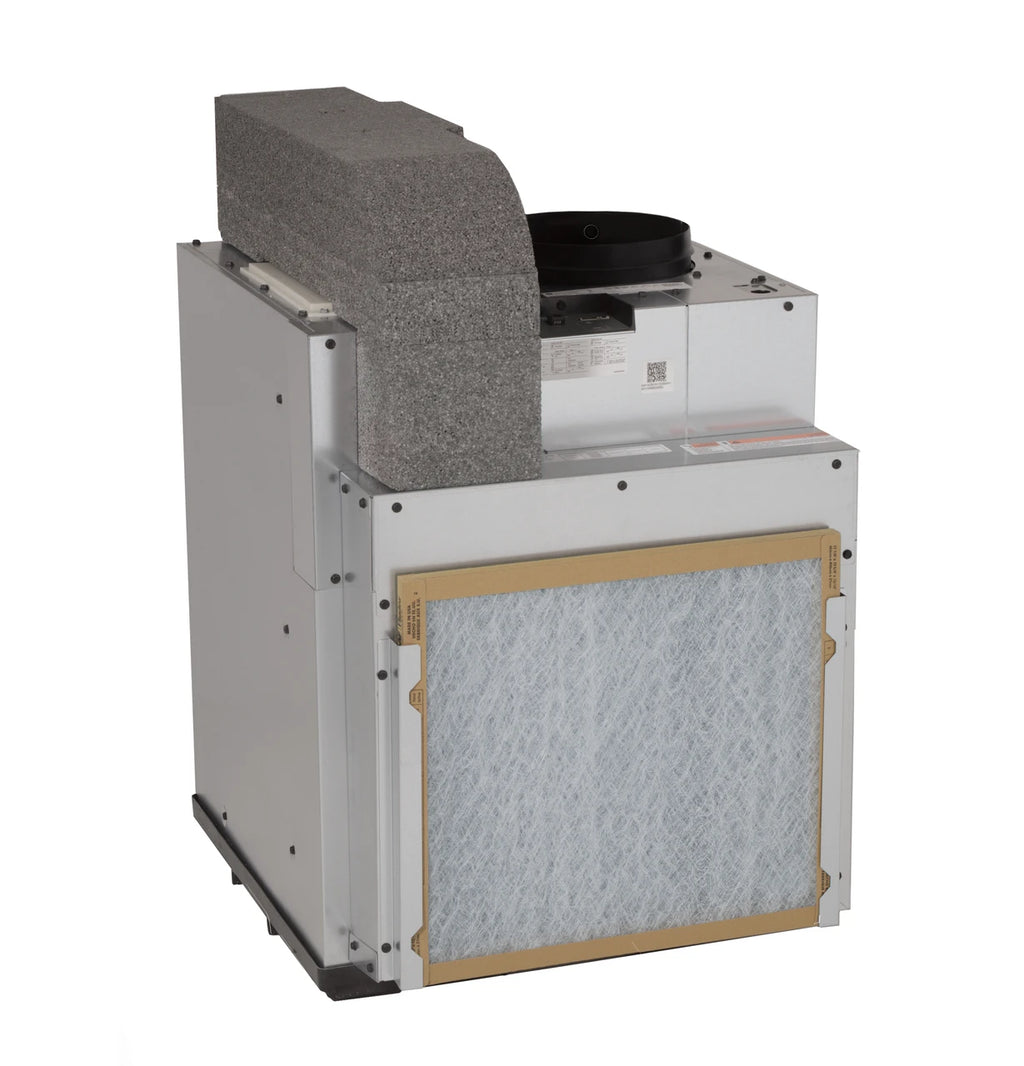

GE Zoneline® UltimateV12™ Heat Pump Single Package Vertical Air Conditioner with Makeup Air 12,000 BTU, 265 Volt

About This Product

Designed & Assembled in America

• Insta-Platform™

  Eliminates the need for on-site customized platform construction saving time and money

• Self-Contained Drainage System

  Easy installation allows for simple chassis removal while leaving plumbing completely intact

• Fast-Connect Plumbing

  Allows preliminary plumbing to be installed outside the closet and prior to installing the chassis

• Self-Aligning Lock-in-Place System

  The Insta-Platform and the VTAC are self-aligning with a lock-in-place system ensuring the unit is engaging with the plenum gasket

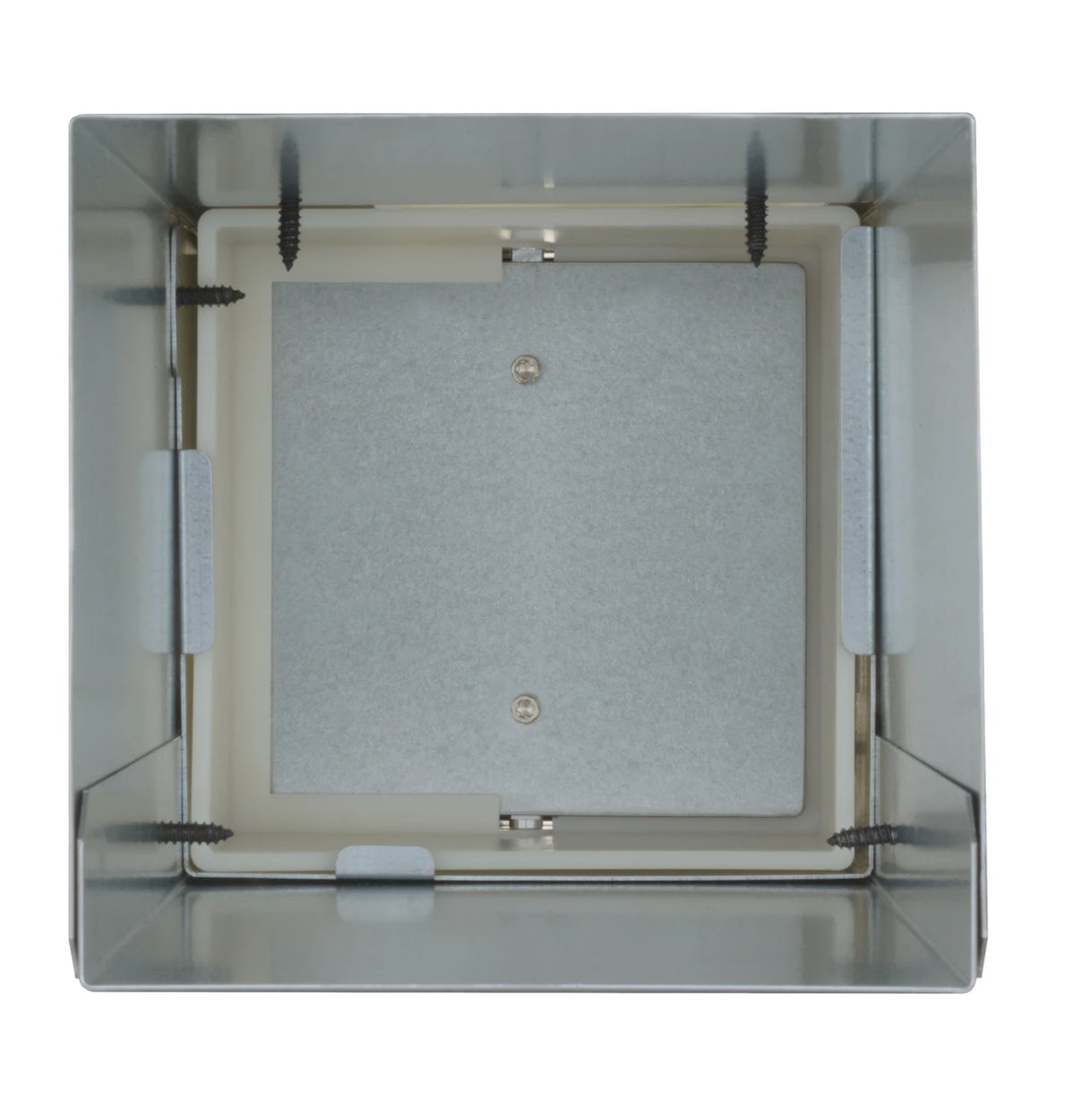

• Quick-Install Plenum

  Plenum is easily installed from the interior of building, without the need for exterior building access. Caulking is required. It conveniently expands from 8" to 15" for a custom fit

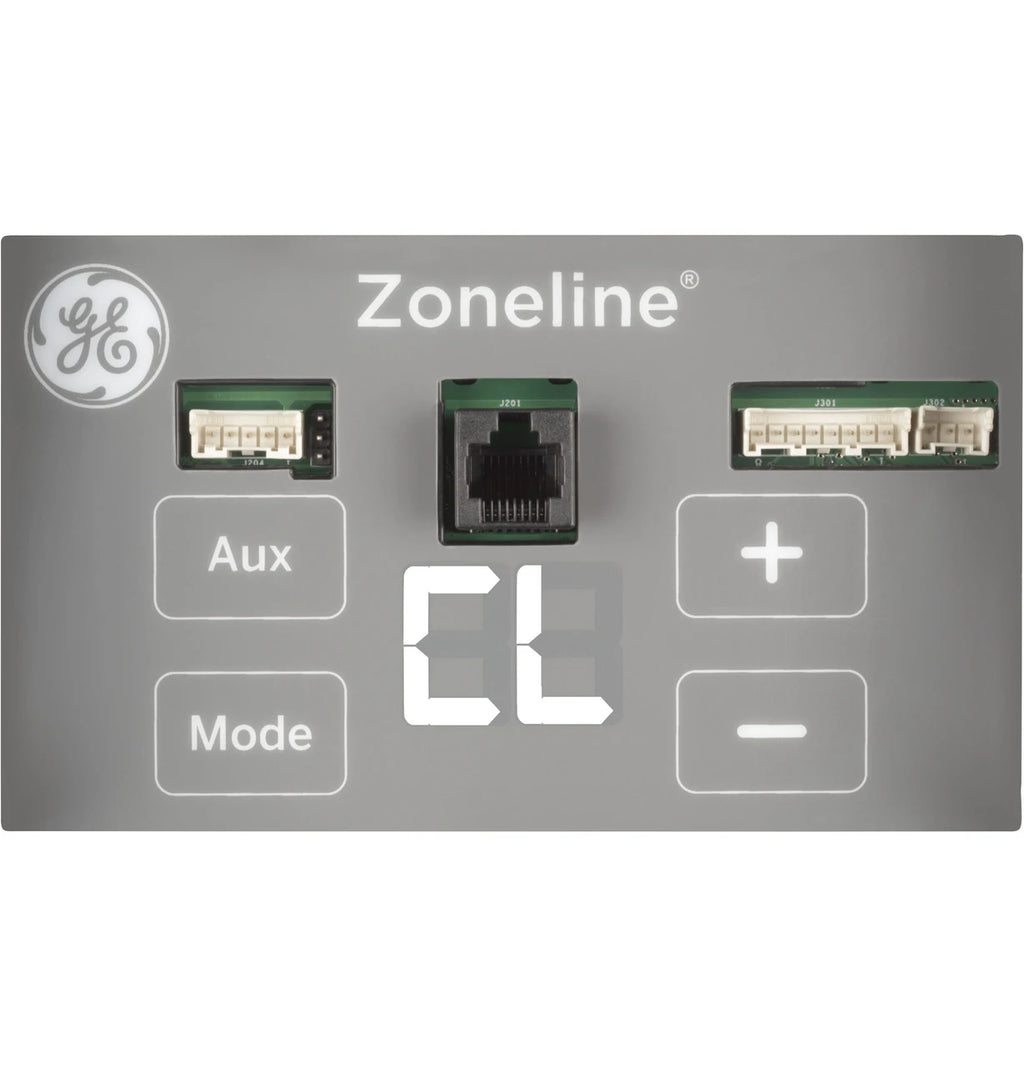

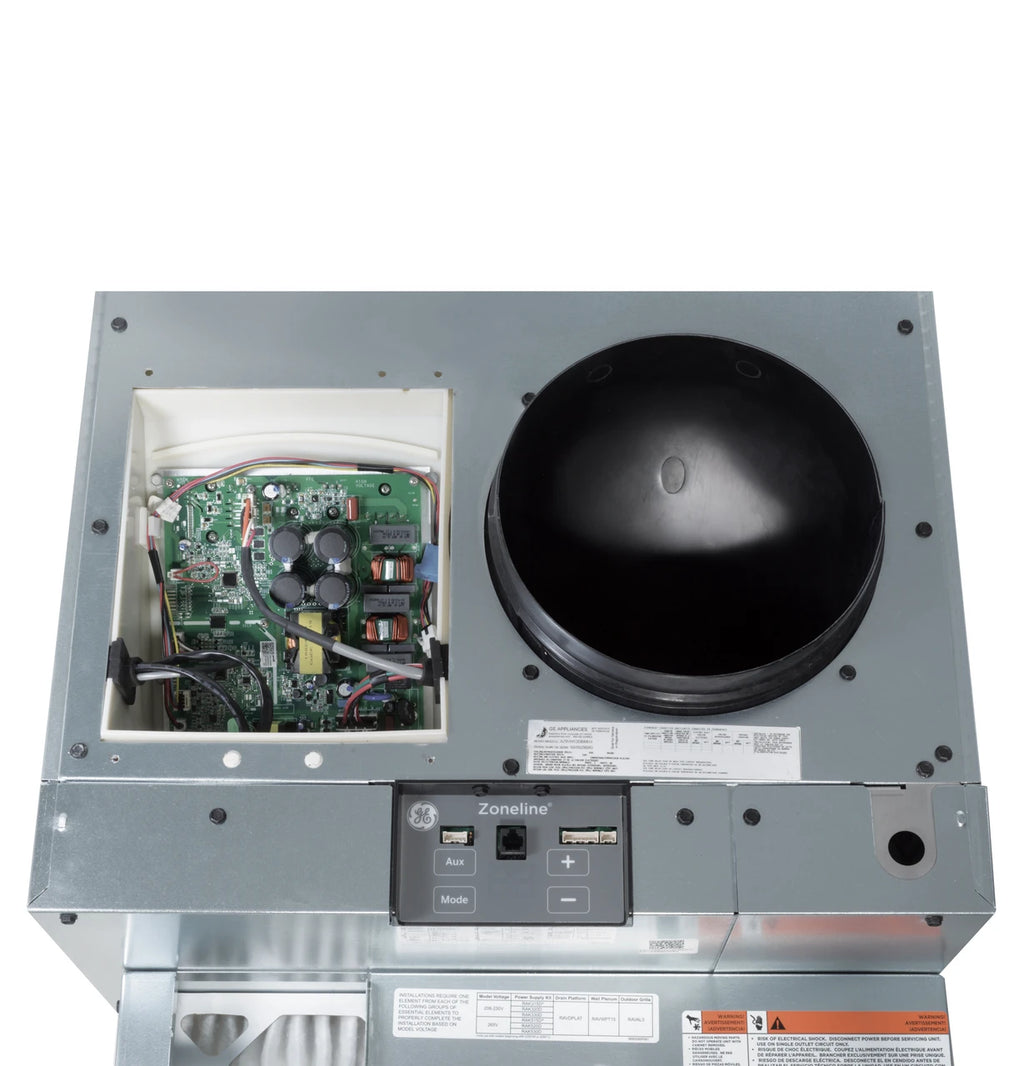

• Onboard Diagnostics

  Electronic controls give clear and fast diagnostics data and fault codes, for fast and easy resolution

• SmartHQ™ WiFi capability

  Optional SmartHQ module* gives property managers the ability to monitor multiple units remotely, enhancing guests’ experience. (*SmartHQ module part number PBX23W00Y0 or PBX23W00Y1.)

• Ultra-Quiet

  Delivers quiet cooling power with a smooth sound for a good night’s sleep

• Reverse Cycle Defrost

  The variable speed compressor and advanced defrost capability allow for the best heat pump operation down to 0° F

• Anti-Corrosion Design/Premium Guard Seacoast Protection

  Exclusive rust-proof basepan and bulkhead provide another level of corrosion protection to ensure lasting performance in challenging environments

• Inverter Technology

  Variable speed operation provides an advantage with shorter recovery time, improved efficiency, sound quality and dehumidification. Consistent room temperature allows for total room comfort

• Adjustable Speed Makeup Air

  Makeup air and customizable variable speed fan technology provide the precise airflow for specific applications. For energy savings, makeup air delivery can be cycled based on occupancy, using a compatible occupancy detecting thermostat. Optional MERV 13 filtration available

Outfitting multiple rooms? Request a quote and our team will confirm pricing, availability and freight to your property.

Specs & Details

Dimensions: 31.875 H x 23.625 W x 24.125 D
