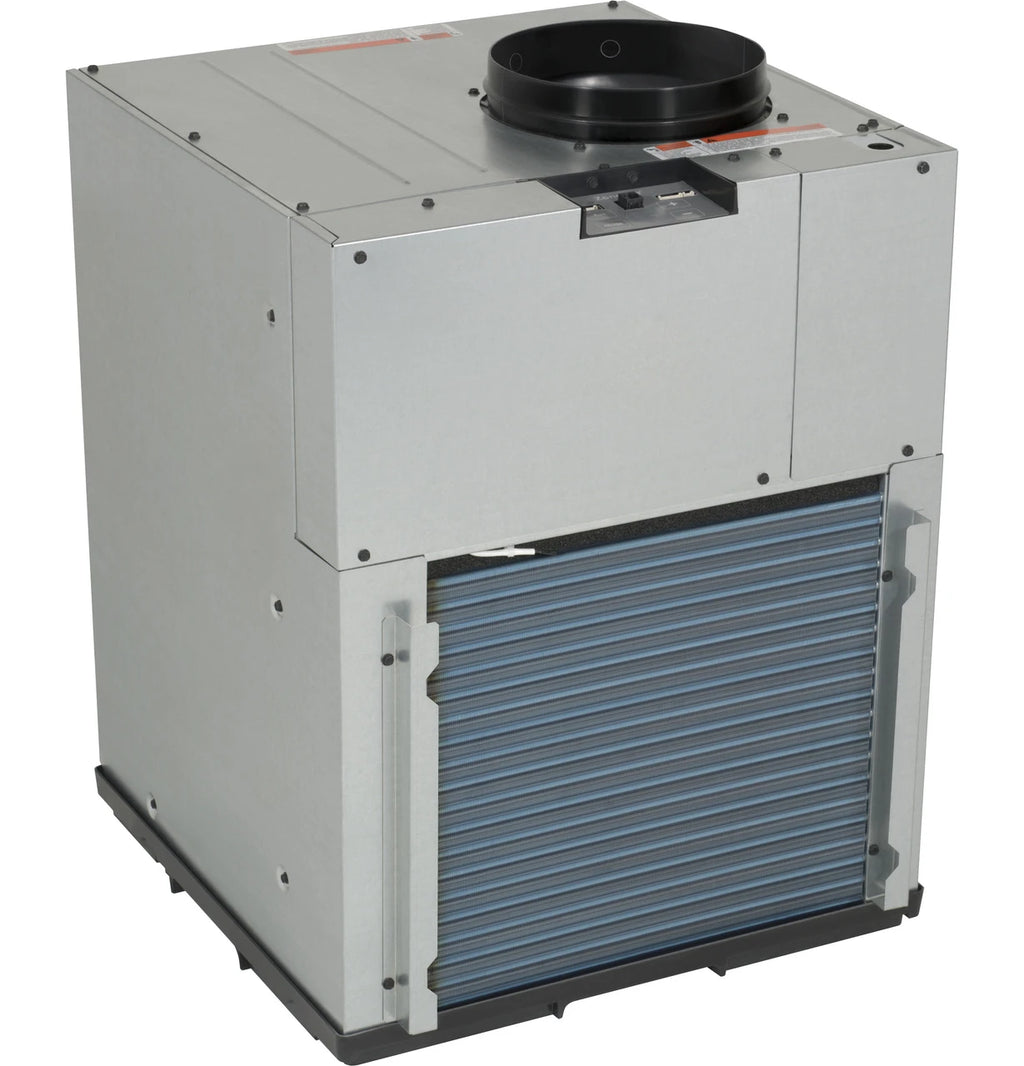

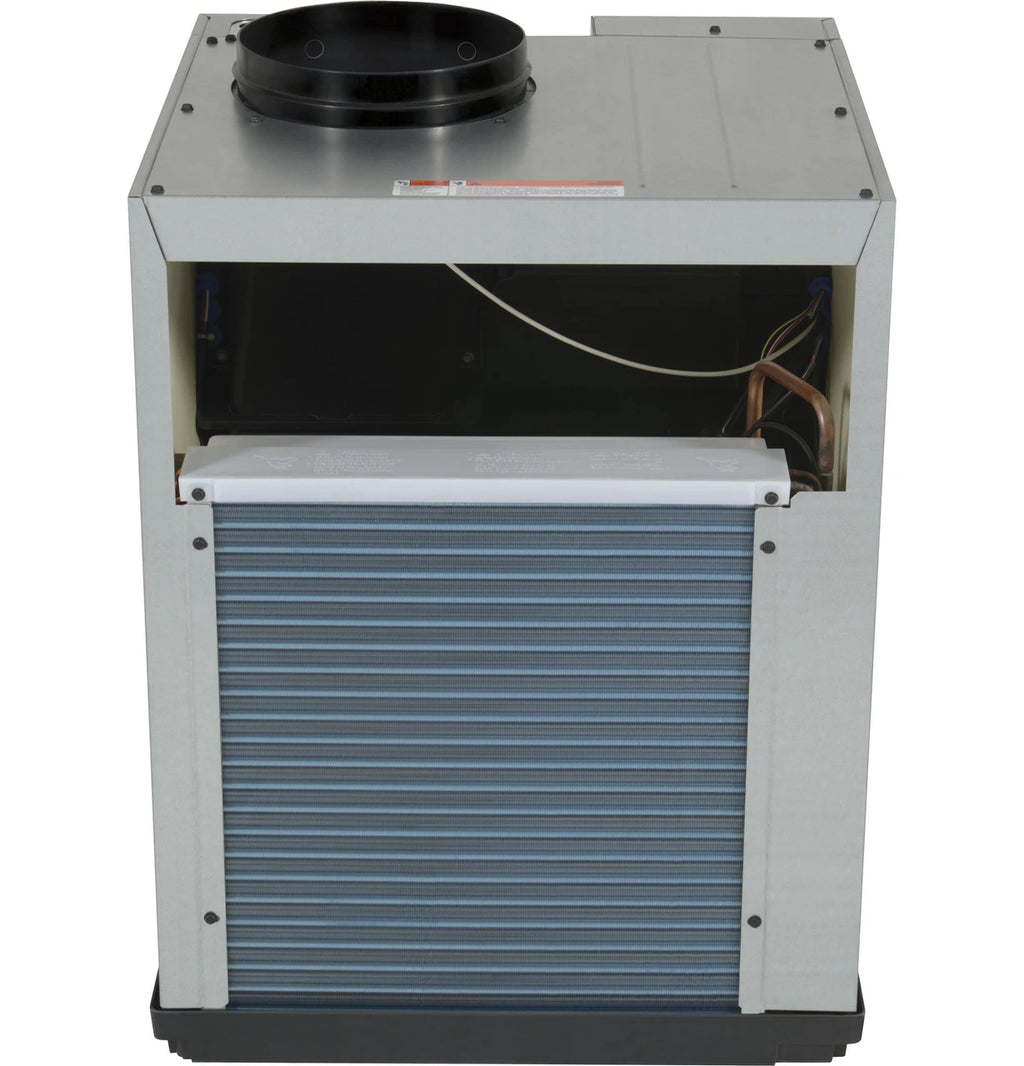

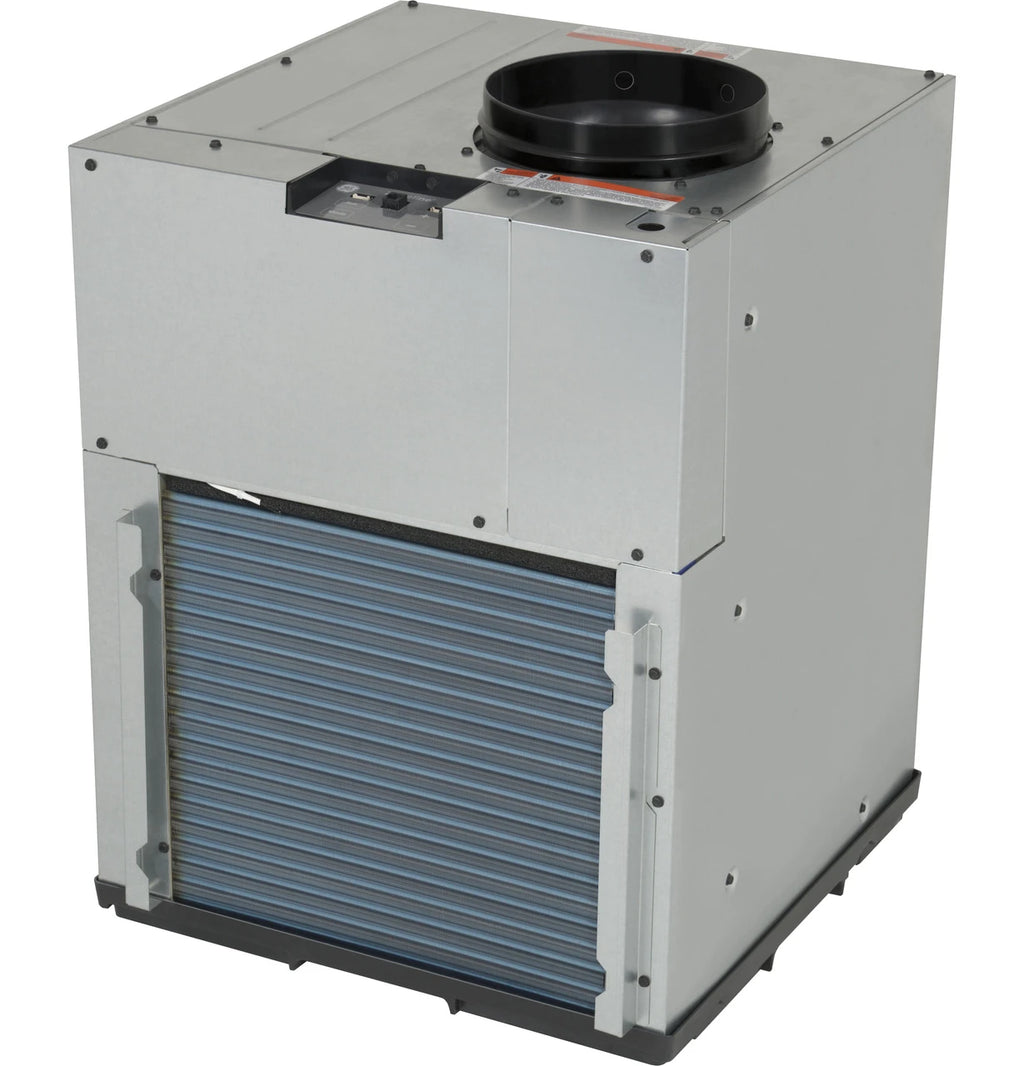

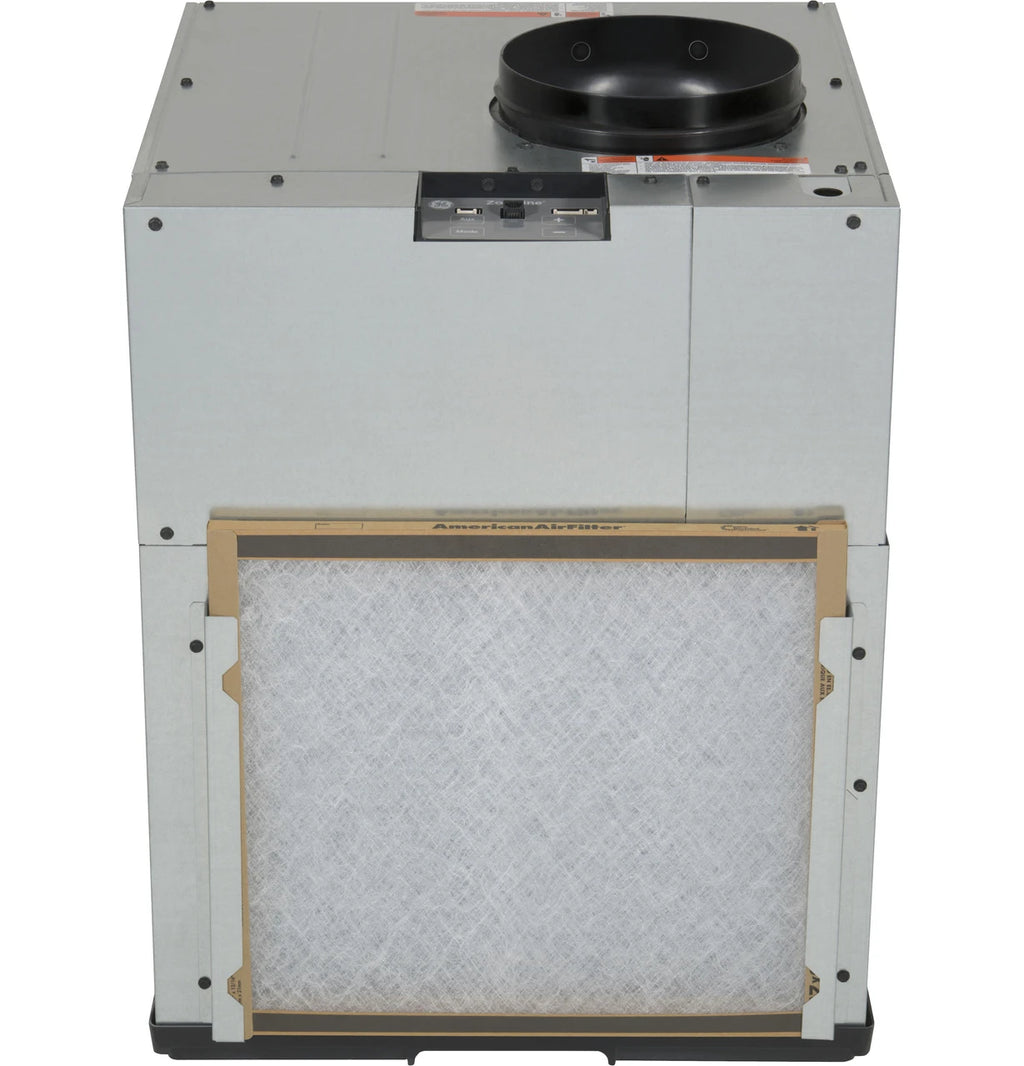

GE Zoneline® Vertical V10 Cooling with Electric Heat VTAC with Corrosion Protection 9,000 BTU, 230/208 Volt, R454B
SKU: AVES09DCXXA
Cooling BTU: 9,000 BTU
Voltage: 230/208 Volt
Images are for reference only. Please verify the model number and written specifications on your quote or order confirmation. Ordering information
About This Product
Designed & Assembled in America
Date of Manufacture – 2025 or later

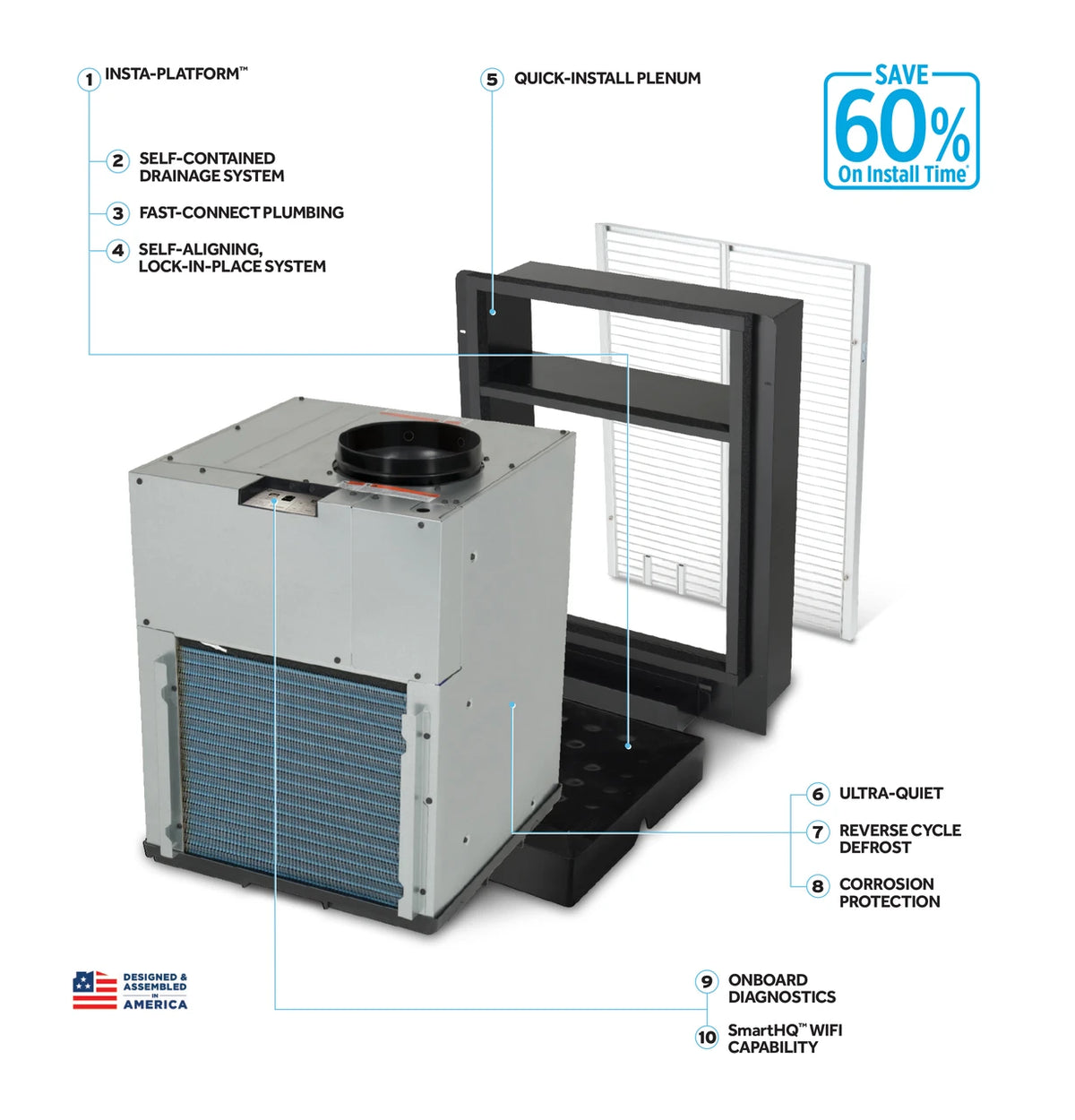

- Insta - Platform™
- Saves 60% on Install Time
- Self-Contained Drainage System
- Fast-Connect Plumbing
- Quick-Install Plenum
- Ultra-Quiet
- Reverse Cycle Defrost
- Corrosion Protection
- Onboard Diagnostics
- SmartHQ™ Management Capable (Requires module & Subscription)
Outfitting multiple rooms? Request a quote and our team will confirm pricing, availability and freight to your property.
Specs & Details
ACCESSORIES
| Accessories Required for Installation | Insta-Platform™ Wall Plenum Power Connection Access panel / Return Air Grille Thermostat Outdoor Grille |
APPEARANCE
| Color Appearance | Gray |
CAPACITY
| Cooling BTU (230 / 208V) | 8900 / 8800 |
| Dehumidification (pts./hr.) | 1.8 |
FEATURES
| Control Type | Tactile touch pad with LED Display |
| Cool with Resistance Heat | Yes |
| Corrosion Treated | Yes |
| EER2 Minimum (230V) OPT for SEER2 | 12.1 / 12.0 |
| Makeup Air | No |
| Product Type | Vertical Air Conditioners |
| Refrigerant Charge (oz.) | 32 |
| Refrigerant Type | R454B |
| Sensible Heat Ratio | 0.77 |
| Zoneline Features | Insta - Platform™ Saves 60% on Install Time Self-Contained Drainage System Fast-Connect Plumbing Quick-Install Plenum Ultra-Quiet Reverse Cycle Defrost Corrosion Protection Onboard Diagnostics SmartHQ™ Management Capable (Requires module & Subscription) |
POWER / RATINGS
| Cooling - Amperes | 3.7 / 3.5 |
| Cooling - Watts | 735 / 745 |
| Volts/Amps | 230 / 208V |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 2-year entire appliance |
| Warranty Notes | See written warranty for full details |
WEIGHTS & DIMENSIONS
| Approximate Shipping Weight | 128 lb |
| Net Weight | 116 lb |
