SKU: AVVS12ECXWA

Cooling BTU: 12,000 BTU

Voltage: 265 Volt

Images are for reference only. Please verify the model number and written specifications on your quote or order confirmation. Ordering information

About This Product

Designed & Assembled in America

Date of Manufacture – 2025 or later

R454B Refrigerant

Most environmentally friendly refrigerant on the market
Inverter Technology

Variable speed operation provides an advantage with shorter recovery time, improved efficiency, sound quality and dehumidification
Reverse Cycle Defrost

Advanced defrost capability allows for extended heat pump down to 0°F
Quick Installation

Complete installation for the interior makes installation 60% faster!
Insta-Platform

Eliminates the need for on-site customized platform construction saving time and money
Self-Contained Drainage System

Easy installation allows for simple chassis removal while leaving plumbing completely intact
Self-Aligning Lock-In-Place System

Insta-platform and VTAC are self-aligning with a lock-in-place system ensuring the unit is engaged with the plenum gasket
Ultra-Quiet

Delivers quiet cooling power with smooth sound for a good night's sleep
Corrosion Protection

Exclusive rust-proof base pan and bulkhead, double painted compressor, stainless steel end brackets, and painted motor surfaces provide another level of corrosion protection
On-Board Diagnostics

Electronic controls give clear and fast diagnostic data and fault codes, for fast and easy resolution
SmartHQ™ WIFI Capability

On-board Wifi SmartHQ™ Management gives property managers the ability to monitor multiple units remotely, enhancing guest experience

Outfitting multiple rooms? Request a quote and our team will confirm pricing, availability and freight to your property.

Specs & Details

Accessories Required for Installation

Insta-Platform™
Wall Plenum
Power Connection
Access panel / Return Air Grille
Thermostat
Outdoor Grille

Color Appearance

Gray

Dehumidification (pts./hr.)

2.8 Nominal Cooling High Fan

Control Type	Tactile touch pad with LED Display
COP2 @ 47F	3.5
COP2 at 17F nominal / max	2.2
Corrosion Treated	Yes
EER2 @ 95F (12,000 BTU)	12
Heat Pump	Yes
Heat Pump with Resistance Heat Backup	Yes
Heating BTU at 17F max	9100
Heating BTU at 17F nominal	6300
Heating BTU HP @ 47F	11000
Heating BTU Range @ 47F	4500 - 13000
HSPF2 Rating	8.1
Makeup Air	No
Product Type	Vertical Air Conditioners
Refrigerant Charge (oz.)	38.5
Refrigerant Type	R454B
SEER2	17
Sensible Heat Ratio	76% (at 95F Nominal Cool High Fan)

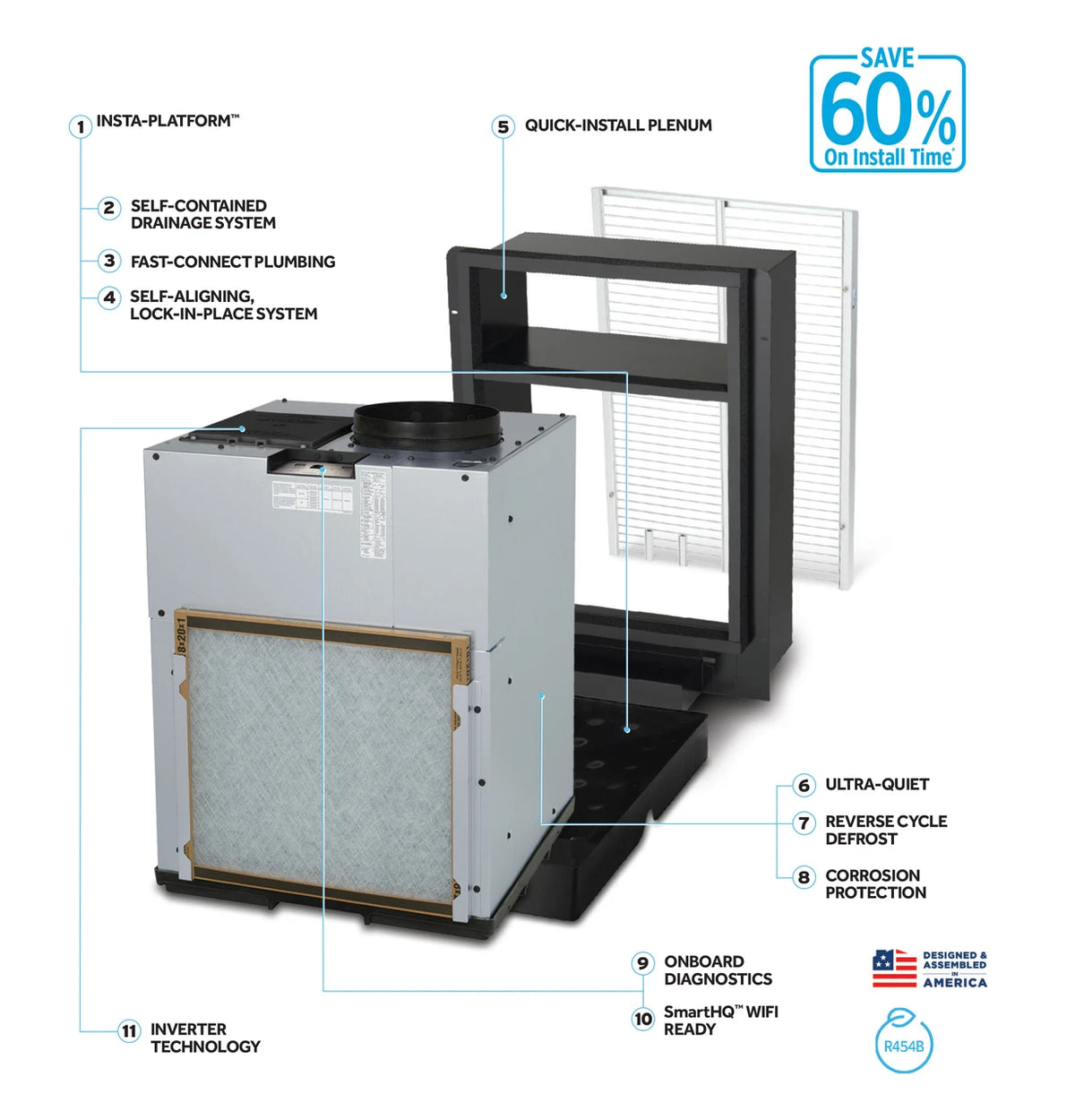

Zoneline Features	Insta - Platform™ Saves 60% on Install Time Zoneline with Perfect Control Technology Self-Contained Drainage System Fast-Connect Plumbing Quick-Install Plenum Ultra-Quiet Reverse Cycle Defrost Corrosion Protection Onboard Diagnostics SmartHQ™ Wifi Ready (Requires Subscription)
