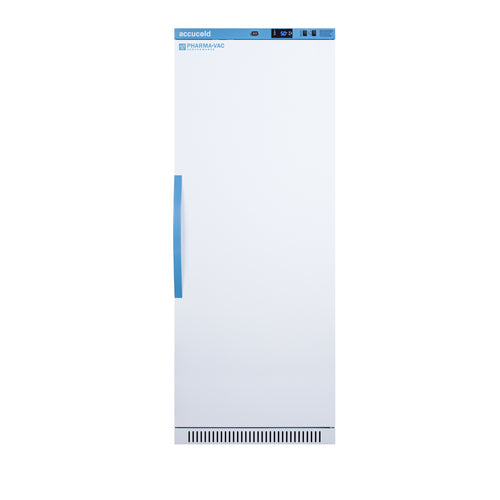

Summit 12 Cu.Ft. Upright Vaccine Refrigerator, White (ARS12PV)
SKU: ARS12PV
Dimensions: 61.75 H x 23.38 W x 24.38 D
About This Product
The Summit ARS12PV is a 12 Cu.Ft. upright vaccine refrigerator. It is built for laboratory and life science cold storage. The cabinet measures 61.75 in. H x 23.38 in. W x 24.38 in. D, offers 12.0 cu.ft. of capacity and uses automatic defrost.
It has a white cabinet finish. It operates on 115 V AC/60 Hz and draws 1.4 amps. A lock helps keep the contents secure. It is backed by a 2-year manufacturer parts and labor warranty.
Planning a multi-unit project? Request a quote and our team will confirm pricing, availability and freight to your site.
Key Features
- Purpose-built design
- +/-1ºC Variation
- Antimicrobial silver ion-coated handle
- Adjustable temperature
- Temperature alarm
- Remote alarm contacts
- Automatic defrost with adjustable cycle defrost
- Access port
- Open door alarm
- Audible power failure alarm
- Sensor failure alarm
- Password protection
Specs & Details
Dimensions: 61.75 H x 23.38 W x 24.38 D
OVERVIEW
| Brand | Summit |
| Model | ARS12PV |
| Category | Lab & Life Science Cold Storage |
DIMENSIONS
| Nominal Height | 62.0" (157 cm) |
| Height of Cabinet | 61.75" (157 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.38" (59 cm) |
| Width with Door Open | 23.88" (61 cm) |
| Nominal Depth | 25.0" (64 cm) |
| Depth | 24.38" (62 cm) |
| Depth with Handle | 26.13" (66 cm) |
| Depth with door at 90° | 46.5" (118 cm) |
| Interior Height | 53.0" (135 cm) |
| Interior Width | 20.0" (51 cm) |
| Interior Depth | 17.0" (43 cm) |
| Compressor Step Height | 6.5" (17 cm) |
| Compressor Step Width | 20.0" (51 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
CAPACITY & STORAGE
| Capacity | 12.0 cu.ft. (340 L) |
| Cabinet | White |
| Shelf Type | Wire |
| Shelf Qty | 7 |
| Adjustable Shelves | Yes |
| Interior Light | Yes |
ELECTRICAL
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.4 |
| Voltage/Frequency | 115 V AC/60 Hz |
COOLING & PERFORMANCE
| Defrost Type | Automatic |
| Compressor Warranty | 5 Years |
| Thermostat Type | Digital |
| Fan Type | Interior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 2.11oz. |
| Temperature Range | 2 to 8ºC |
CERTIFICATIONS & WARRANTY
| Parts & Labor Warranty | 2 Years |
FEATURES & FINISH
| Door | White |
| Weight | 184.0 lbs. (83 kg) |
| Door Swing | RHD |
| Reversible | Yes |
