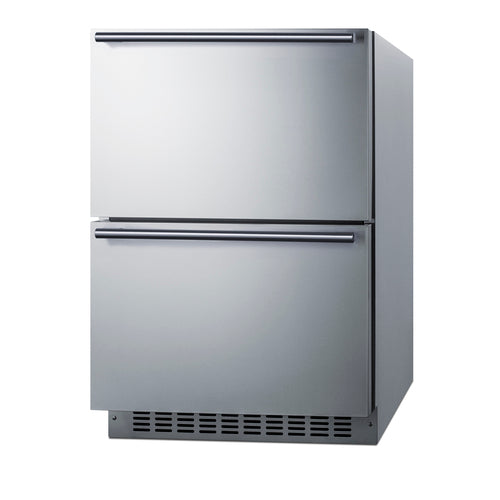

Summit 2-Drawer Refrigerator-Freezer with Icemaker, 24" Wide, Stainless Steel (SPRF34DIM)
SKU: SPRF34DIM
Dimensions: 33.75 H x 23.38 W x 24 D
About This Product
The Summit SPRF34DIM is a 24" wide 2-Drawer refrigerator-freezer with icemaker. It puts refrigerated storage in easy-to-reach pull-out drawers under an island, beside a range or behind a bar. The cabinet measures 33.75 in. H x 23.38 in. W x 24 in. D, offers 3.9 cu.ft. of capacity and uses frost-free defrost.
The stainless steel cabinet is paired with a stainless steel/panel-ready door. It operates on 115 V AC/60 Hz and draws 1 amps. The door accepts a custom panel (sold separately) for a seamless built-in look. It is backed by a 1-year manufacturer parts and labor warranty.
Planning a multi-unit project? Request a quote and our team will confirm pricing, availability and freight to your site.
Key Features
- Factory-installed icemaker
- Built-in capable
- Stainless steel construction
- Panel-ready drawer fronts
- Two sliding drawers
- Frost-free operation
- Digital thermostat
- LED lighting
- Drawer dividers
- Sliding basket
- Internal fan
- Professional handles
Specs & Details
Dimensions: 33.75 H x 23.38 W x 24 D
OVERVIEW
| Brand | Summit |
| Model | SPRF34DIM |
| Category | Refrigerator Drawers |
DIMENSIONS
| Nominal Height | 34.0" (86 cm) |
| Height of Cabinet | 33.75" (86 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.38" (59 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 24.0" (61 cm) |
| Depth with Handle | 25.75" (65 cm) |
| Depth with Panel | 24.75" (63 cm) |
| Depth with door at 90° | 39.5" (100 cm) |
| Refrigerator - Interior Height | 9.88" (25 cm) |
| Refrigerator - Interior Width | 17.0" (43 cm) |
| Refrigerator - Interior Depth | 15.25" (39 cm) |
| Freezer - Interior Height | 8.5" (22 cm) |
| Freezer - Interior Width | 17.0" (43 cm) |
| Freezer - Interior Depth | 15.25" (39 cm) |
| Compressor Step Height | 3.5" (9 cm) |
| Compressor Step Width | 17.0" (43 cm) |
| Compressor Step Depth | 4.0" (10 cm) |
CAPACITY & STORAGE
| Capacity | 3.9 cu.ft. (110 L) |
| Cabinet | Stainless Steel |
| Interior Light | Yes |
ELECTRICAL
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Energy Usage/Year | 464.0kWh/year |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
COOLING & PERFORMANCE
| Defrost Type | Frost-Free |
| Compressor Warranty | 5 Years |
| Refrigerator - Temperature Range | 36°F to 43°F |
| Thermostat Type | Digital |
| Fan Type | Interior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.13 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Freezer - Temperature Range | -11°F to 11°F |
CERTIFICATIONS & WARRANTY
| Parts & Labor Warranty | 1 Year |
| Star-K Certified | Yes |
FEATURES & FINISH
| Door | Stainless Steel/Panel-Ready |
| Weight | 108.0 lbs. (49 kg) |
| Door Swing | Drawer |
| Sabbath Mode | Yes |
