About This Product

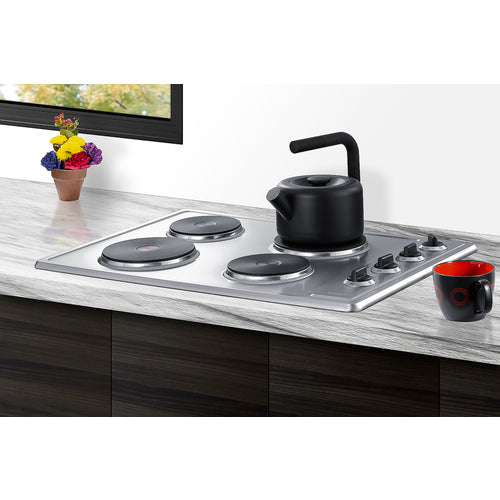

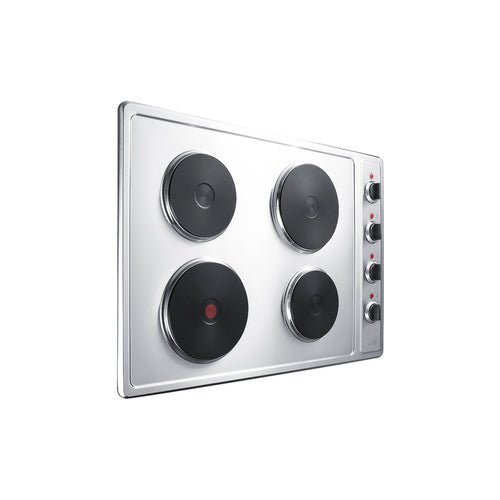

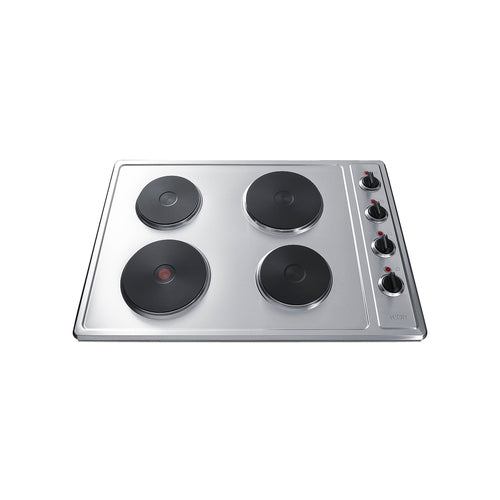

The Summit CSD4B300 is a 30" wide 208/240V 4-Burner solid disk cooktop. It is a built-in electric cooktop well suited to kitchenettes, compact and accessible kitchens. The cabinet measures 2.75 in. H x 29.63 in. W x 20.38 in. D.

It has a stainless steel cabinet finish. It operates on 230 V AC/60 Hz and draws 23 amps. It is backed by a 1-year manufacturer parts and labor warranty.

Planning a multi-unit project? Request a quote and our team will confirm pricing, availability and freight to your site.

Key Features

4-Burner Electric Cooktop
Solid disk elements
Stainless steel finish
Durable cast iron design
Easier cleanup
Two 6" elements
Two 8" elements
Push-to-turn controls
Side knobs
Indicator lights
Designed for built-in installation
230V operation

Specs & Details

Dimensions: 2.75 H x 29.63 W x 20.38 D

OVERVIEW

Brand	Summit
Model	CSD4B300
Category	Electric & Induction Cooktops

DIMENSIONS

Nominal Height	2.75" (7 cm)
Height of Cabinet	2.75" (7 cm)
Nominal Width	30.0" (76 cm)
Width	29.63" (75 cm)
Nominal Depth	21.0" (53 cm)
Depth	20.38" (52 cm)
Countertop Cutout Height	4.13" (10 cm)
Countertop Cutout Width	28.5" (72 cm)
Countertop Cutout Depth	19.75" (50 cm)

CAPACITY & STORAGE

Cabinet

Stainless Steel

ELECTRICAL

US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	23.0
Voltage/Frequency	230 V AC/60 Hz
Element Type	Cast Iron
Number of Elements	4
Power Source	230V
Element #1 Size	8.0" (20 cm)
Element #1 Wattage	2000.0
Element #2 Size	6.0" (15 cm)
Element #2 Wattage	1000.0
Element #3 Size	8.0" (20 cm)
Element #3 Wattage	1500.0
Element #4 Size	6.0" (15 cm)
Element #4 Wattage	1000.0
Power Cord Included	No
