About This Product

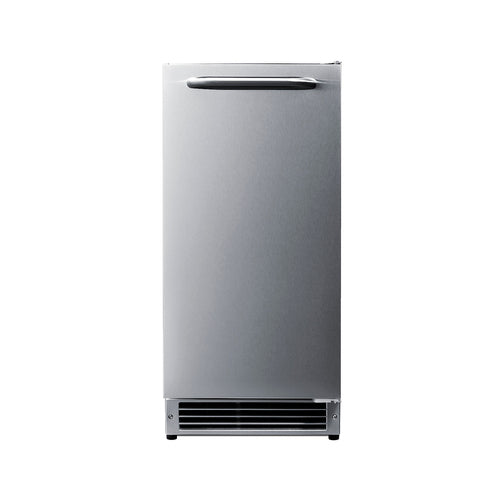

The Summit BIM27OSADA is a 25 lb. drain-free outdoor icemaker, ADA compliant. It supplies fresh ice for outdoor bars and kitchens. The cabinet measures 31.75 in. H x 14.88 in. W x 19.38 in. D and uses manual defrost.

It has a stainless steel cabinet finish. It operates on 115 V AC/60 Hz and draws 1.9 amps. It meets ADA height requirements for accessible installations. It is backed by a 1-year manufacturer parts and labor warranty.

Planning a multi-unit project? Request a quote and our team will confirm pricing, availability and freight to your site.

Key Features

ADA compliant
Weatherproof design
Adjustable Height
Drain-free design
Stainless steel exterior
Large capacity
Manual defrost
Reversible door
Sealed back
Standard water hookup
Built-In capable
Modern handle

Specs & Details

Dimensions: 31.75 H x 14.88 W x 19.38 D

OVERVIEW

Brand	Summit
Model	BIM27OSADA
Category	Outdoor Ice Makers

DIMENSIONS

Nominal Height	32.0" (81 cm)
Height of Cabinet	31.75" (81 cm)
Nominal Width	15.0" (38 cm)
Width	14.88" (38 cm)
Nominal Depth	20.0" (51 cm)
Depth	19.38" (49 cm)
Depth with Handle	21.38" (54 cm)
Depth with door at 90°	33.63" (85 cm)
Height Adjustable	Yes
Interior Height	15.88" (40 cm)
Interior Width	11.88" (30 cm)
Interior Depth	12.38" (31 cm)

CAPACITY & STORAGE

Cabinet	Stainless Steel
Ice Storage Capacity	22.0 lbs. (10 kg)

ELECTRICAL

US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	1.9
Voltage/Frequency	115 V AC/60 Hz

COOLING & PERFORMANCE

Defrost Type	Manual
Compressor Warranty	5 Years
Refrigerant Type	R600a
Refrigerant Amount	1.58 oz.
High Side PSI	120.0
Low Side PSI	55.0

CERTIFICATIONS & WARRANTY

Parts & Labor Warranty

1 Year

FEATURES & FINISH

Door	Stainless Steel
Weight	61.0 lbs. (28 kg)
Door Swing	RHD
Reversible	Yes
Daily Ice Production	25.0 lbs. (11 kg)
Ice Shape	Crescent
Size of Cube	1/2" x 3/4" x 2 3/8"
Number of Ice Cube Sizes	1
Level Legs	4
