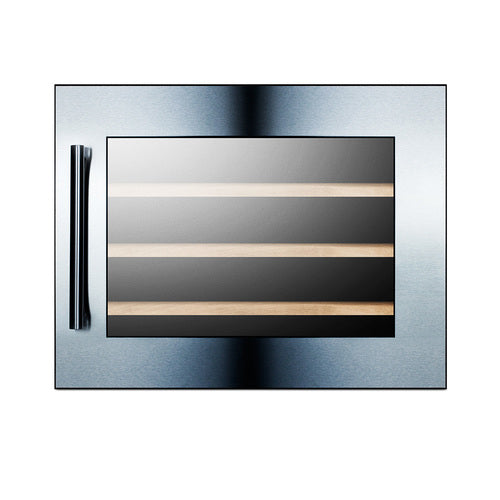

Summit 28 Bottle Integrated Wine Cellar, Unfinished (VC28S)

SKU: VC28S

Dimensions: 18.13 H x 23.25 W x 22.13 D

About This Product

The Summit VC28S is a 28 bottle integrated wine cellar. It stores wine at steady cellar temperatures for homes, restaurants and hospitality spaces. The cabinet measures 18.13 in. H x 23.25 in. W x 22.13 in. D and uses automatic defrost.

The unfinished cabinet is paired with a glass door. It operates on 115 V AC/60 Hz and draws 1.4 amps. It is backed by a 1-year manufacturer parts and labor warranty.

Planning a multi-unit project? Request a quote and our team will confirm pricing, availability and freight to your site.

Key Features

Built-in installation
Commercial design
Digital thermostat
Dynamic compressor cooling
Reversible glass door
Slide-out wooden shelves
Open door alarm
Interior light
Temperature alarm
Sabbath Mode
Humidity improvement
100% CFC free

Specs & Details

Dimensions: 18.13 H x 23.25 W x 22.13 D

OVERVIEW

Brand	Summit
Model	VC28S
Category	Wine Coolers & Cellars

DIMENSIONS

Nominal Height	19.0" (48 cm)
Height of Cabinet	18.13" (46 cm)
Nominal Width	24.0" (61 cm)
Width	23.25" (59 cm)
Nominal Depth	23.0" (58 cm)
Depth	22.13" (56 cm)
Depth with Handle	23.88" (61 cm)
Depth with door at 90°	44.75" (114 cm)
Interior Height 1	13.75" (35 cm)
Interior Width 1	18.88" (48 cm)
Interior Depth 1	14.88" (38 cm)

CAPACITY & STORAGE

Bottles	28 bottles
Cabinet	Unfinished
Shelf Type	Wood
Shelf Qty	3
Interior Light	Yes

ELECTRICAL

US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	1.4
Voltage/Frequency	115 V AC/60 Hz

COOLING & PERFORMANCE

Defrost Type	Automatic
Compressor Warranty	5 Years
Thermostat Type	Digital
Fan Type	Interior
Refrigerant Type	R134a
Refrigerant Amount	1.27 oz.
High Side PSI	270.0
Low Side PSI	105.0
Temperature Range	42º to 72ºF

CERTIFICATIONS & WARRANTY

Parts & Labor Warranty

1 Year

FEATURES & FINISH

Door	Glass
Weight	71.0 lbs. (32 kg)
Number of Zones	1
Door Swing	RHD
Reversible	Yes
Sabbath Mode	Yes
