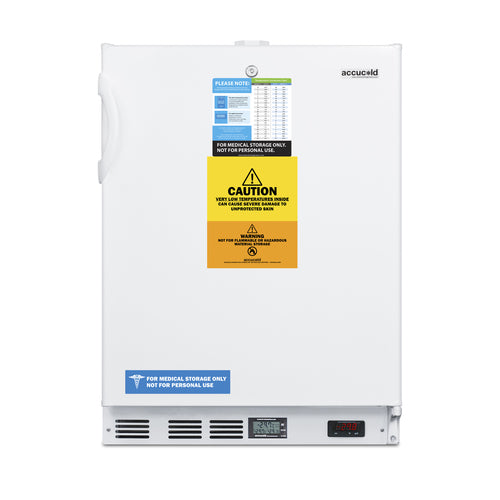

Summit All-Freezer, ADA Compliant, 24" Wide, White (VT65ADA)
SKU: VT65ADA
Dimensions: 32 H x 23.63 W x 23.5 D
About This Product
The Summit VT65ADA is a 24" wide all-freezer, ADA compliant. It is sized for ADA-height counters so frozen storage stays within reach. The cabinet measures 32 in. H x 23.63 in. W x 23.5 in. D, offers 3.5 cu.ft. of capacity and uses manual defrost.
It has a white cabinet finish. It operates on 115 V AC/60 Hz. It meets ADA height requirements for accessible installations. A lock helps keep the contents secure. It is backed by a 1-year manufacturer parts and labor warranty.
Planning a multi-unit project? Request a quote and our team will confirm pricing, availability and freight to your site.
Key Features
- Built-in capable
- Commercially approved
- ADA compliant
- -30º C (-22º F) capable

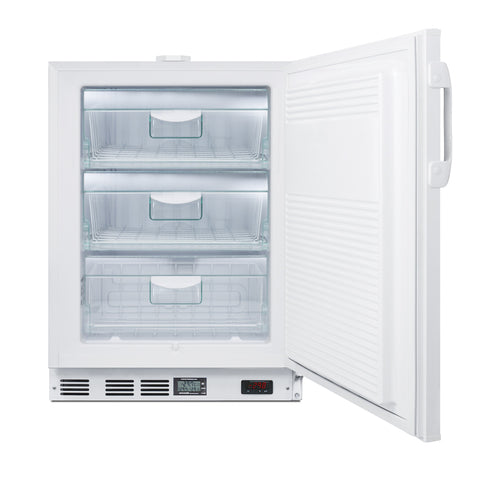

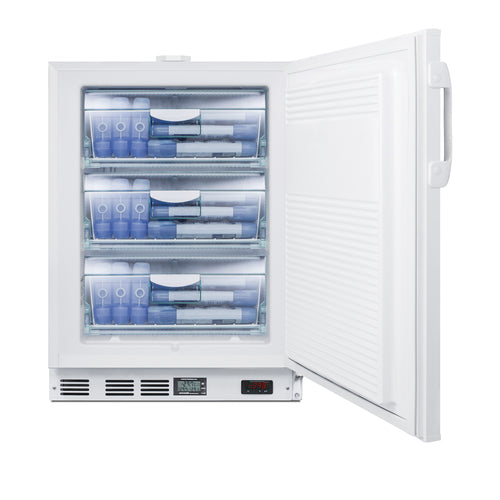

- Three slide-out drawers
- Factory installed lock
- Digital thermostat
- Alarm with temperature display
- Manual defrost
- 100% CFC free
Specs & Details
Dimensions: 32 H x 23.63 W x 23.5 D
OVERVIEW
| Brand | Summit |
| Model | VT65ADA |
| Category | ADA Compliant Freezers |
DIMENSIONS
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Height to Hinge Cap | 32.25" (82 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.63" (60 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 23.5" (60 cm) |
CAPACITY & STORAGE
| Capacity | 3.5 cu.ft. (99 L) |
| Cabinet | White |
| Interior Drawers | Yes |
| Drawers Qty | 3 |
ELECTRICAL
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Voltage/Frequency | 115 V AC/60 Hz |
COOLING & PERFORMANCE
| Defrost Type | Manual |
| Compressor Warranty | 5 Years |
| Thermostat Type | Digital |
| Refrigerant Type | R134a |
| Refrigerant Amount | 2.76 oz. |
| Temperature Range | -20ºC to -30ºC |
CERTIFICATIONS & WARRANTY
| Sanitation | ETL-S |
| Parts & Labor Warranty | 1 Year |
FEATURES & FINISH
| Door | White |
| Weight | 100.0 lbs. (45 kg) |
| Door Swing | RHD |
| Reversible | Factory Reversible |
