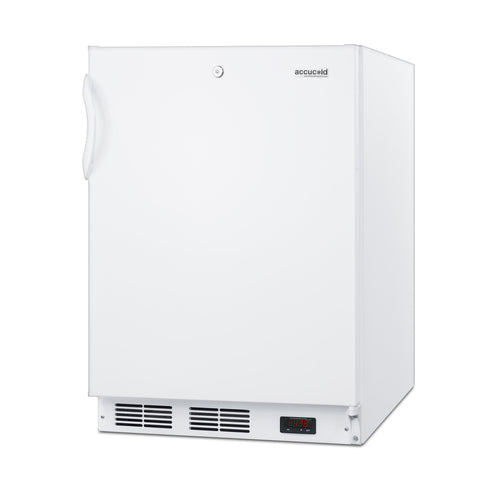

Summit All-Freezer, ADA Compliant, 24" Wide, White (VT65MLADA)
SKU: VT65MLADA
Dimensions: 32 H x 23.63 W x 23.5 D
About This Product
The Summit VT65MLADA is a 24" wide all-freezer, ADA compliant. It is sized for ADA-height counters so frozen storage stays within reach. The cabinet measures 32 in. H x 23.63 in. W x 23.5 in. D, offers 3.5 cu.ft. of capacity and uses manual defrost.
It has a white cabinet finish. It operates on 115 V AC/60 Hz and draws 1.3 amps. It meets ADA height requirements for accessible installations. A lock helps keep the contents secure. It is backed by a 1-year manufacturer parts and labor warranty.
Planning a multi-unit project? Request a quote and our team will confirm pricing, availability and freight to your site.
Key Features
- ADA compliant
- Slim counter height dimensions
- Fully finished white cabinet
- Factory installed lock
- Reversible door
- -25º C capable
- No internal fans
- Manual defrost

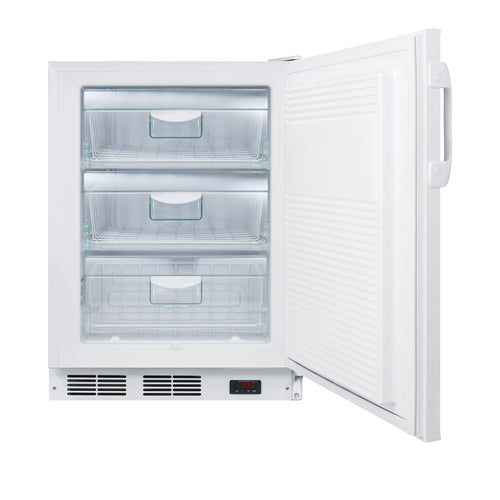

- Three removable storage baskets
- One piece interior liner
- Digital thermostat
- 100% CFC free
Specs & Details
Dimensions: 32 H x 23.63 W x 23.5 D
OVERVIEW
| Brand | Summit |
| Model | VT65MLADA |
| Category | ADA Compliant Freezers |
DIMENSIONS
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Height to Hinge Cap | 32.25" (82 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.63" (60 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 23.5" (60 cm) |
| Depth with Handle | 24.25" (62 cm) |
| Depth with door at 90° | 45.0" (114 cm) |
| Interior Height | 24.25" (62 cm) |
| Interior Width | 17.75" (45 cm) |
| Interior Depth | 16.5" (42 cm) |
| Compressor Step Height | 6.5" (17 cm) |
| Compressor Step Width | 17.5" (44 cm) |
| Compressor Step Depth | 5.5" (14 cm) |
CAPACITY & STORAGE
| Capacity | 3.5 cu.ft. (99 L) |
| Cabinet | White |
| Crisper Finish | Opaque |
| Crisper Cover | Glass |
| Shelf Type | Glass |
| Interior Drawers | Yes |
| Drawers Qty | 3 |
ELECTRICAL
| US Electrical Safety | UL |
| Canadian Electrical Safety | ULC |
| Amps | 1.3 |
| Voltage/Frequency | 115 V AC/60 Hz |
COOLING & PERFORMANCE
| Defrost Type | Manual |
| Compressor Warranty | 5 Years |
| Thermostat Type | Digital |
| Refrigerant Type | R134a |
| Refrigerant Amount | 2.7 oz. |
| High Side PSI | 235.0 |
| Low Side PSI | 70.0 |
| Temperature Range | -12ºC to -25ºC |
CERTIFICATIONS & WARRANTY
| Parts & Labor Warranty | 1 Year |
FEATURES & FINISH
| Door | White |
| Weight | 105.0 lbs. (48 kg) |
| Door Swing | RHD |
| Reversible | Yes |
