About This Product

The Summit BIM44G is a built-in 45 lb. clear icemaker. It keeps a steady supply of fresh ice on hand for bars, kitchens, offices and break rooms. The cabinet measures 33.63 in. H x 14.63 in. W x 22.5 in. D and uses automatic defrost.

The black cabinet is paired with a stainless steel door. It operates on 115 V AC/60 Hz and draws 2.5 amps. It is ENERGY STAR certified for lower operating costs. It is backed by a 1-year manufacturer parts and labor warranty.

Planning a multi-unit project? Request a quote and our team will confirm pricing, availability and freight to your site.

Key Features

15" Wide Clear Icemaker
ENERGY STAR certified commercial performance
Commercially approved
Built-in pump
Automatic defrost
Reversible door
Built-in capable
Stainless steel door
Professional towel bar handle

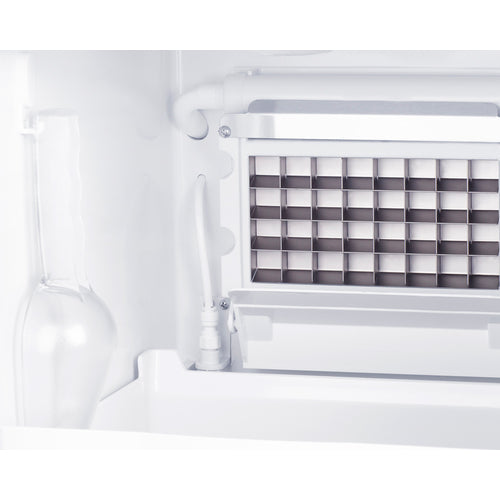

Clear ice cube production
Insulated storage bin
Hoses included

Specs & Details

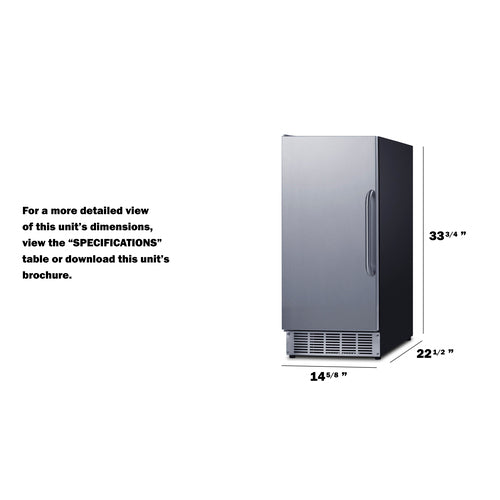

Dimensions: 33.63 H x 14.63 W x 22.5 D

OVERVIEW

Brand	Summit
Model	BIM44G
Category	Ice Makers

DIMENSIONS

Height of Cabinet	33.63" (85 cm)
Height to Hinge Cap	33.75" (86 cm)
Width	14.63" (37 cm)
Depth	22.5" (57 cm)
Depth with Handle	24.5" (62 cm)
Depth with door at 90°	36.25" (92 cm)
Interior Height	18.75" (48 cm)
Interior Width	11.25" (29 cm)
Interior Depth	15.5" (39 cm)

CAPACITY & STORAGE

Cabinet	Black
Ice Storage Capacity	25.0 lbs. (11 kg)
Interior Light	Yes

ELECTRICAL

US Electrical Safety	UL
Canadian Electrical Safety	ULC
Amps	2.5
Plug Type	NEMA 5-15P
Voltage/Frequency	115 V AC/60 Hz

COOLING & PERFORMANCE

Defrost Type	Automatic
Compressor Warranty	5 Years
Fan Type	Exterior
Refrigerant Type	R290a
Refrigerant Amount	1.87 oz.
High Side PSI	286.0
Low Side PSI	110.0

CERTIFICATIONS & WARRANTY

Sanitation	ETL-S
Parts & Labor Warranty	1 Year

FEATURES & FINISH

Door	Stainless Steel
Weight	100.0 lbs. (45 kg)
Door Swing	LHD
Reversible	Yes
Drain Required	Yes
Daily Ice Production	45.0 lbs. (20 kg)
Ice Shape	Cube
Size of Cube	7/8" x 7/8" x 7/8"
Number of Ice Cube Sizes	1
Level Legs	4
