About This Product

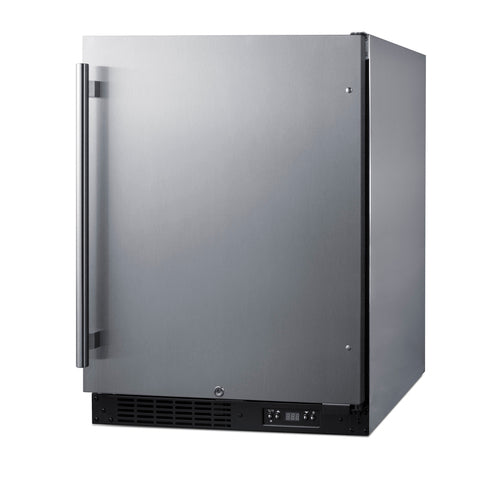

The Summit ALFZ51CSS is a 24" wide built-in all-freezer, ADA compliant. It is sized for ADA-height counters so frozen storage stays within reach. The cabinet measures 31.63 in. H x 23.38 in. W x 23.38 in. D, offers 4.0 cu.ft. of capacity and uses frost-free defrost.

It has a stainless steel cabinet finish. It operates on 115 V AC/60 Hz and draws 1.3 amps. It meets ADA height requirements for accessible installations. A lock helps keep the contents secure. It is backed by a 1-year manufacturer parts and labor warranty.

Planning a multi-unit project? Request a quote and our team will confirm pricing, availability and freight to your site.

Key Features

ADA compliant
Commercially approved
Built-in capable
Digital control panel
Factory installed lock
Stainless steel exterior
White interior
Adjustable shelving
Brake shelving system
Automatic defrost
Internal fan
Professional handle

Specs & Details

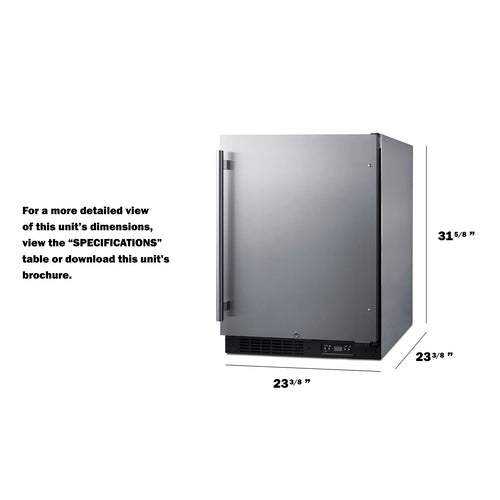

Dimensions: 31.63 H x 23.38 W x 23.38 D

OVERVIEW

Brand	Summit
Model	ALFZ51CSS
Category	ADA Compliant Freezers

DIMENSIONS

Nominal Height	32.0" (81 cm)
Height of Cabinet	31.63" (80 cm)
Nominal Width	24.0" (61 cm)
Width	23.38" (59 cm)
Nominal Depth	24.0" (61 cm)
Depth	23.38" (59 cm)
Depth with Handle	25.38" (64 cm)
Depth with door at 90°	45.75" (116 cm)
Interior Height	23.75" (60 cm)
Interior Width	18.5" (47 cm)
Interior Depth	16.75" (43 cm)
Compressor Step Height	5.0" (13 cm)
Compressor Step Width	18.5" (47 cm)
Compressor Step Depth	5.0" (13 cm)

CAPACITY & STORAGE

Capacity	4.0 cu.ft. (113 L)
Cabinet	Stainless Steel
Shelf Type	Glass
Shelf Qty	3
Adjustable Shelves	Yes

ELECTRICAL

US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Energy Usage/Year	380.0kWh/year
Amps	1.3
Voltage/Frequency	115 V AC/60 Hz

COOLING & PERFORMANCE

Defrost Type	Frost-Free
Compressor Warranty	5 Years
Thermostat Type	Digital
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	1.06 oz.
High Side PSI	150.0
Low Side PSI	50.0
Temperature Range	-11°F to 11°F
Sound Level	40.1 dB
