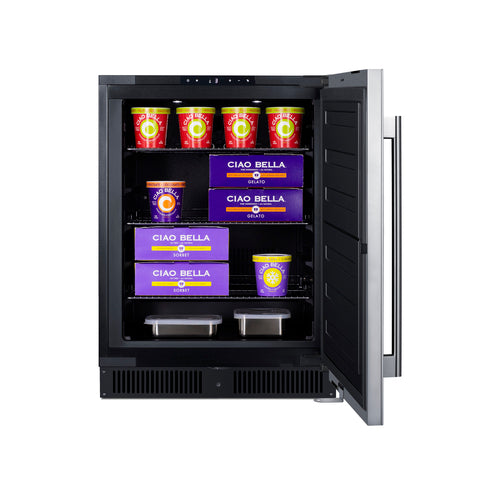

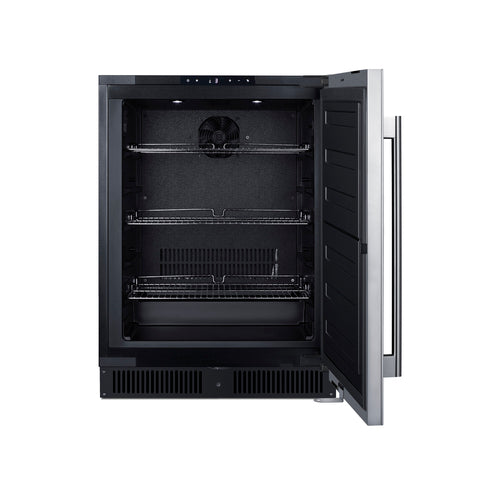

Summit Built-In All-Freezer, ADA Compliant, 24" Wide, Black (ALFZ53)
SKU: ALFZ53
Dimensions: 32 H x 23.63 W x 22.63 D
About This Product
The Summit ALFZ53 is a 24" wide built-in all-freezer, ADA compliant. It is sized for ADA-height counters so frozen storage stays within reach. The cabinet measures 32 in. H x 23.63 in. W x 22.63 in. D, offers 3.67 cu.ft. of capacity and uses frost-free defrost.
The black cabinet is paired with a stainless steel door. It operates on 115 V AC/60 Hz and draws 1.5 amps. It meets ADA height requirements for accessible installations. A lock helps keep the contents secure. It is backed by a 1-year manufacturer parts and labor warranty.
Planning a multi-unit project? Request a quote and our team will confirm pricing, availability and freight to your site.
Key Features
- Undercounter All-Freezer
- ADA compliant design
- Built-in capable
- Frost-free operation
- Stainless steel door
- Digital thermostat
- Recessed LED light
- Reversible door
- Adjustable shelves
- Factory installed lock
- Professional handle
- Open door alarm
Specs & Details
Dimensions: 32 H x 23.63 W x 22.63 D
OVERVIEW
| Brand | Summit |
| Model | ALFZ53 |
| Category | ADA Compliant Freezers |
DIMENSIONS
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.63" (60 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 22.63" (57 cm) |
| Depth with Handle | 24.63" (63 cm) |
| Depth with door at 90° | 45.0" (114 cm) |
| Interior Height | 23.5" (60 cm) |
| Interior Width | 18.75" (48 cm) |
| Interior Depth | 15.5" (39 cm) |
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 18.75" (48 cm) |
| Compressor Step Depth | 4.5" (11 cm) |
CAPACITY & STORAGE
| Capacity | 3.67 cu.ft. (104 L) |
| Cabinet | Black |
| Shelf Type | Chrome |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Interior Light | Yes |
ELECTRICAL
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Energy Usage/Year | 345.0kWh/year |
| Amps | 1.5 |
| Voltage/Frequency | 115 V AC/60 Hz |
COOLING & PERFORMANCE
| Defrost Type | Frost-Free |
| Compressor Warranty | 5 Years |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.31 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Temperature Range | -11°F to 11°F |
| Sound Level | 33.7 dB |
CERTIFICATIONS & WARRANTY
| Parts & Labor Warranty | 1 Year |
FEATURES & FINISH
| Door | Stainless Steel |
| Weight | 82.0 lbs. (37 kg) |
| Door Swing | RHD |
| Reversible | Yes |
| Level Legs | 4 |
| Sabbath Mode | Yes |
