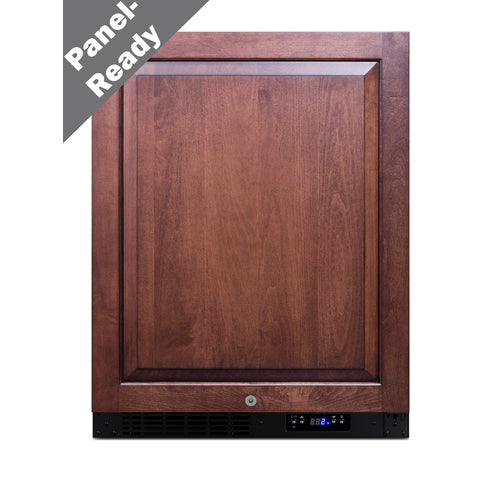

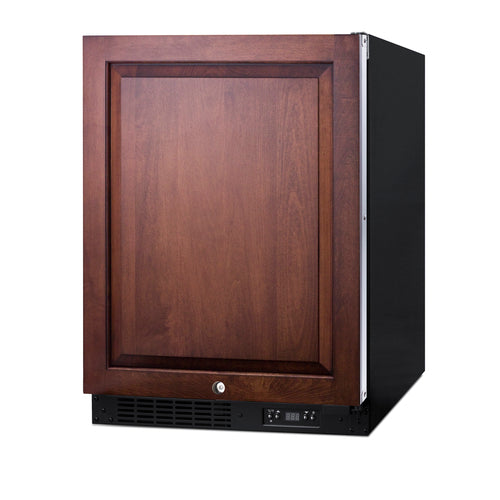

Summit Built-In All-Freezer, ADA Compliant (Panel Not Included), 24" Wide, Black (ALFZ51IF)
SKU: ALFZ51IF
Dimensions: 31.63 H x 23.38 W x 23.38 D
About This Product
The Summit ALFZ51IF is a 24" wide built-in all-freezer, ADA compliant (Panel not Included). It is sized for ADA-height counters so frozen storage stays within reach. The cabinet measures 31.63 in. H x 23.38 in. W x 23.38 in. D, offers 4.0 cu.ft. of capacity and uses frost-free defrost.
The black cabinet is paired with a panel-ready door. It operates on 115 V AC/60 Hz and draws 1.3 amps. It meets ADA height requirements for accessible installations. A lock helps keep the contents secure. The door accepts a custom panel (sold separately) for a seamless built-in look. It is backed by a 1-year manufacturer parts and labor warranty.
Planning a multi-unit project? Request a quote and our team will confirm pricing, availability and freight to your site.
Key Features
- ADA compliant
- Commercially approved
- Built-in capable
- Panel-ready door
- Digital control panel
- Factory installed lock
- White interior
- Adjustable shelving
- Brake shelving system
- Automatic defrost
- Internal fan
- Temperature alarm
Specs & Details
Dimensions: 31.63 H x 23.38 W x 23.38 D
OVERVIEW
| Brand | Summit |
| Model | ALFZ51IF |
| Category | ADA Compliant Freezers |
DIMENSIONS
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 31.63" (80 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.38" (59 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 23.38" (59 cm) |
| Depth with door at 90° | 45.75" (116 cm) |
| Interior Height | 23.75" (60 cm) |
| Interior Width | 18.5" (47 cm) |
| Interior Depth | 16.75" (43 cm) |
| Compressor Step Height | 5.0" (13 cm) |
| Compressor Step Width | 18.5" (47 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
CAPACITY & STORAGE
| Capacity | 4.0 cu.ft. (113 L) |
| Cabinet | Black |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
ELECTRICAL
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Energy Usage/Year | 380.0kWh/year |
| Amps | 1.3 |
| Voltage/Frequency | 115 V AC/60 Hz |
COOLING & PERFORMANCE
| Defrost Type | Frost-Free |
| Compressor Warranty | 5 Years |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.06 oz. |
| High Side PSI | 150.0 |
| Low Side PSI | 50.0 |
| Temperature Range | -11°F to 11°F |
| Sound Level | 40.1 dB |
CERTIFICATIONS & WARRANTY
| Sanitation | ETL-S |
| Parts & Labor Warranty | 1 Year |
FEATURES & FINISH
| Door | Panel-Ready |
| Weight | 95.0 lbs. (43 kg) |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Level Legs | 4 |
| Sabbath Mode | Yes |
