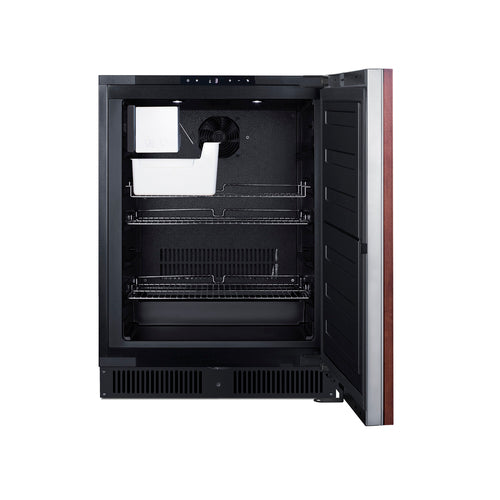

Summit Built-In All-Freezer with Icemaker, ADA Compliant (Panel Not Included), 24" Wide, Black (ALFZ53IMPNR)
SKU: ALFZ53IMPNR
Dimensions: 32 H x 23.38 W x 22.88 D
About This Product
The Summit ALFZ53IMPNR is a 24" wide built-in all-freezer with icemaker, ADA compliant (Panel not Included). It is sized for ADA-height counters so frozen storage stays within reach. The cabinet measures 32 in. H x 23.38 in. W x 22.88 in. D, offers 3.7 cu.ft. of capacity and uses frost-free defrost.
The black cabinet is paired with a stainless steel/panel-ready door. It operates on 115 V AC/60 Hz and draws 1.5 amps. It meets ADA height requirements for accessible installations. A lock helps keep the contents secure. The door accepts a custom panel (sold separately) for a seamless built-in look. It is backed by a 1-year manufacturer parts and labor warranty.
Planning a multi-unit project? Request a quote and our team will confirm pricing, availability and freight to your site.
Key Features
- Factory-installed icemaker
- Custom style
- ADA compliant design
- Built-in capable
- Panel-ready door
- Easy panel installation with included 2-piece bracket kit
- Stainless steel door
- Fully articulating hinge
- Frost-free operation
- Digital thermostat
- Recessed LED light
- Reversible door
Specs & Details
Dimensions: 32 H x 23.38 W x 22.88 D
OVERVIEW
| Brand | Summit |
| Model | ALFZ53IMPNR |
| Category | ADA Compliant Freezers |
DIMENSIONS
| Height of Cabinet | 32.0" (81 cm) |
| Width | 23.38" (59 cm) |
| Depth | 22.88" (58 cm) |
| Depth with Handle | 24.63" (63 cm) |
| Depth with door at 90° | 46.88" (119 cm) |
| Interior Height | 23.5" (60 cm) |
| Interior Width | 18.63" (47 cm) |
| Interior Depth | 15.5" (39 cm) |
| Compressor Step Height | 5.0" (13 cm) |
| Compressor Step Width | 18.63" (47 cm) |
| Compressor Step Depth | 4.5" (11 cm) |
CAPACITY & STORAGE
| Capacity | 3.7 cu.ft. (105 L) |
| Cabinet | Black |
| Shelf Type | Chrome |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Interior Light | Yes |
ELECTRICAL
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Energy Usage/Year | 345.0kWh/year |
| Amps | 1.5 |
| Plug Type | NEMA 5-15P (Right Angle) |
| Voltage/Frequency | 115 V AC/60 Hz |
COOLING & PERFORMANCE
| Defrost Type | Frost-Free |
| Compressor Warranty | 5 Years |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.31 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Temperature Range | -11°F to 11°F |
CERTIFICATIONS & WARRANTY
| Parts & Labor Warranty | 1 Year |
| Star-K Certified | Yes |
FEATURES & FINISH
| Door | Stainless Steel/Panel-Ready |
| Weight | 82.0 lbs. (37 kg) |
| Door Swing | RHD |
| Reversible | Yes |
| Level Legs | 4 |
| Sabbath Mode | Yes |
