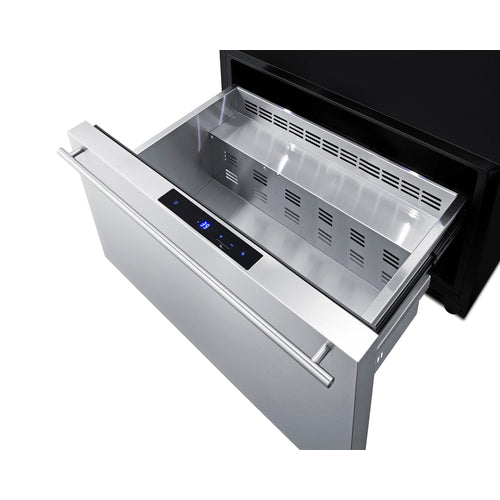

Summit Built-In Drawer Refrigerator, 30" Wide, Black (SDR30)
SKU: SDR30
Dimensions: 17.75 H x 29.5 W x 22 D
About This Product
The Summit SDR30 is a 30" wide built-in drawer refrigerator. It puts refrigerated storage in easy-to-reach pull-out drawers under an island, beside a range or behind a bar. The cabinet measures 17.75 in. H x 29.5 in. W x 22 in. D, offers 2.54 cu.ft. of capacity and uses frost-free defrost.
The black cabinet is paired with a stainless steel/panel-ready door. It operates on 115 V AC/60 Hz and draws 1 amps. The door accepts a custom panel (sold separately) for a seamless built-in look. It is backed by a 1-year manufacturer parts and labor warranty.
Planning a multi-unit project? Request a quote and our team will confirm pricing, availability and freight to your site.
Key Features
- Commercially approved
- Built-in capable
- Panel-ready drawer front
- 304 grade stainless steel drawer
- Frost-free operation
- Digital thermostat
- LED lighting
- Drawer divider
- Glass shelf
- Internal fan
- Temperature Memory Function
- Professional handle
Specs & Details
Dimensions: 17.75 H x 29.5 W x 22 D
OVERVIEW
| Brand | Summit |
| Model | SDR30 |
| Category | Refrigerator Drawers |
DIMENSIONS
| Nominal Height | 18.0" (46 cm) |
| Height of Cabinet | 17.75" (45 cm) |
| Nominal Width | 30.0" (76 cm) |
| Width | 29.5" (75 cm) |
| Nominal Depth | 22.0" (56 cm) |
| Depth | 22.0" (56 cm) |
| Depth with Handle | 23.5" (60 cm) |
| Depth with door at 90° | 37.88" (96 cm) |
| Interior Height | 13.0" (33 cm) |
| Interior Width | 23.63" (60 cm) |
| Interior Depth | 15.5" (39 cm) |
| Compressor Step Height | 6.5" (17 cm) |
| Compressor Step Width | 23.63" (60 cm) |
| Compressor Step Depth | 4.5" (11 cm) |
CAPACITY & STORAGE
| Capacity | 2.54 cu.ft. (72 L) |
| Cabinet | Black |
| Shelf Type | Glass |
| Shelf Qty | 1 |
| Adjustable Shelves | Yes |
| Interior Light | Yes |
ELECTRICAL
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Energy Usage/Year | 280.0kWh/year |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
COOLING & PERFORMANCE
| Defrost Type | Frost-Free |
| Compressor Warranty | 5 Years |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.92oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Temperature Range | 36 to 43ºF |
| Sound Level | 34.3 dB |
CERTIFICATIONS & WARRANTY
| Sanitation | ETL-S |
| Parts & Labor Warranty | 1 Year |
| Star-K Certified | Yes |
FEATURES & FINISH
| Door | Stainless Steel/Panel-Ready |
| Weight | 77.0 lbs. (35 kg) |
| Sabbath Mode | Yes |
| Door Swing | Drawer |
| Reversible | No |
| Level Legs Qty | 4 |
