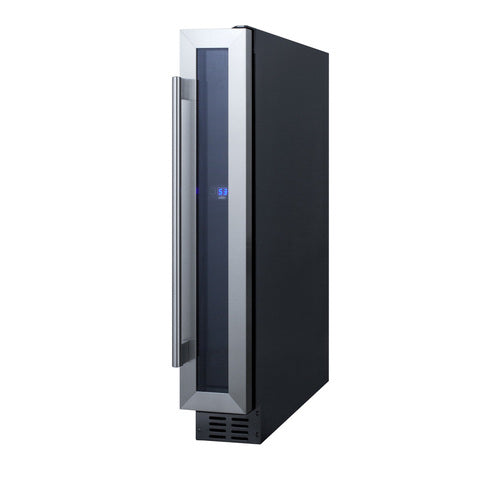

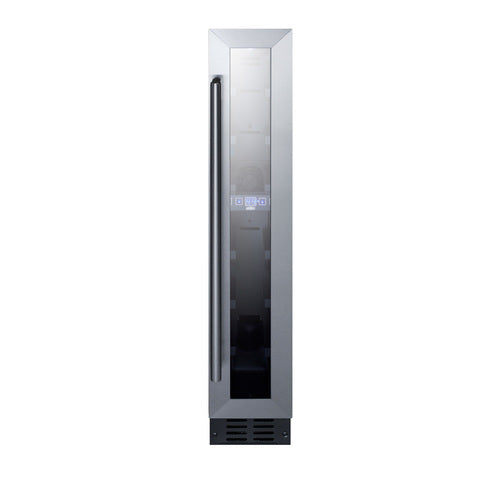

Summit Built-In Wine Cellar, 6" Wide, Black (SWC007)
SKU: SWC007
Dimensions: 32.25 H x 5.88 W x 20.75 D
About This Product

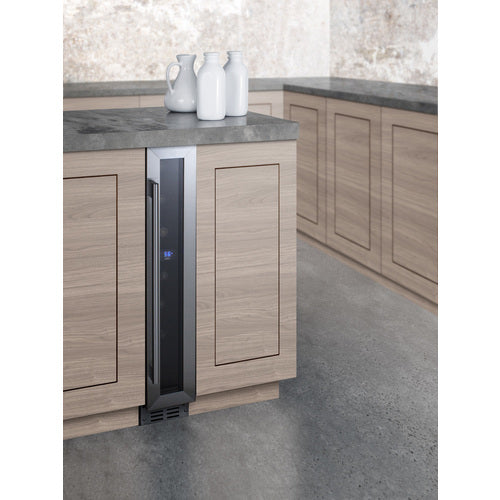

The Summit SWC007 is a 6" wide built-in wine cellar. It stores wine at steady cellar temperatures for homes, restaurants and hospitality spaces. The cabinet measures 32.25 in. H x 5.88 in. W x 20.75 in. D and uses automatic defrost.
The black cabinet is paired with a glass door. It operates on 115 V AC/60 Hz and draws 1 amps. It is backed by a 1-year manufacturer parts and labor warranty.
Planning a multi-unit project? Request a quote and our team will confirm pricing, availability and freight to your site.
Key Features
- Slim 6 inch width
- Designed for built-in use
- ADA compliant
- Commercial design
- Height adjustable
- Glass door with stainless steel trim
- Digital thermostat
- 7 bottle capacity
- Open bottle storage
- Digital display
- LED lighting
- Automatic defrost
Specs & Details
Dimensions: 32.25 H x 5.88 W x 20.75 D
OVERVIEW
| Brand | Summit |
| Model | SWC007 |
| Category | Wine Coolers & Cellars |
DIMENSIONS
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.25" (82 cm) |
| Nominal Width | 6.0" (15 cm) |
| Width | 5.88" (15 cm) |
| Nominal Depth | 21.0" (53 cm) |
| Depth | 20.75" (53 cm) |
| Depth with Handle | 22.38" (57 cm) |
| Depth with door at 90° | 25.5" (65 cm) |
| Height Adjustable | Yes |
| Interior Height 1 | 25.75" (65 cm) |
| Interior Width 1 | 3.5" (9 cm) |
| Interior Depth 1 | 14.25" (36 cm) |
| Compressor Step Width | 3.5" (9 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
CAPACITY & STORAGE
| Bottles | 7 bottles |
| Cabinet | Black |
| Interior Light | Yes |
ELECTRICAL
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
COOLING & PERFORMANCE
| Defrost Type | Automatic |
| Compressor Warranty | 5 Years |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.57 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Temperature Range | 41 to 72ºF |
| Sound Level | 33.8 dB |
CERTIFICATIONS & WARRANTY
| Parts & Labor Warranty | 1 Year |
FEATURES & FINISH
| Door | Glass |
| Weight | 40.0 lbs. (18 kg) |
| Number of Zones | 1 |
| Door Swing | RHD |
| Reversible | Yes |
| Level Legs | 4 |
| Sabbath Mode | Yes |
