About This Product

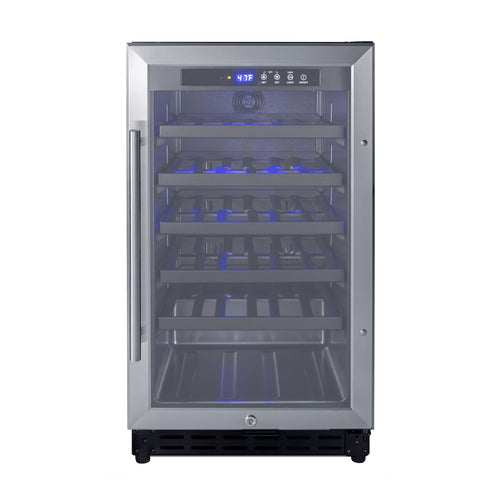

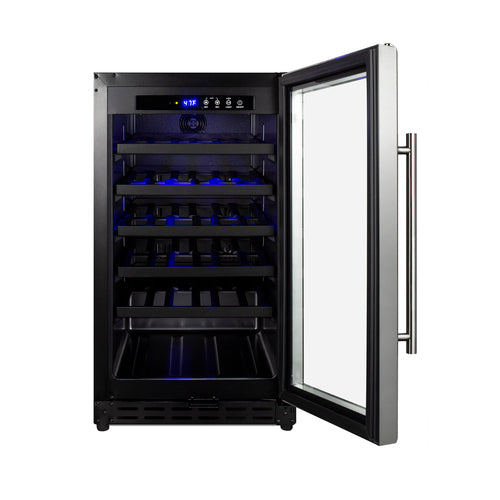

The Summit SWC1840BADA is an 18" wide built-in wine cellar, ADA compliant. It stores wine at steady cellar temperatures for homes, restaurants and hospitality spaces. The cabinet measures 31.38 in. H x 17.75 in. W x 23.5 in. D, offers 3.3 cu.ft. of capacity and uses automatic defrost.

The black cabinet is paired with a glass door. It operates on 115 V AC/60 Hz and draws 1.25 amps. It meets ADA height requirements for accessible installations. A lock helps keep the contents secure. It is backed by a 1-year manufacturer parts and labor warranty.

Planning a multi-unit project? Request a quote and our team will confirm pricing, availability and freight to your site.

Key Features

Commercially approved
ADA compliant
Built-in capable
34 bottle capacity
Glass door with stainless steel trim
Factory installed lock
Digital thermostat
Digital display
LED lighting
Automatic defrost
Wooden shelves
Reversible door

Specs & Details

Dimensions: 31.38 H x 17.75 W x 23.5 D

OVERVIEW

Brand	Summit
Model	SWC1840BADA
Category	Wine Coolers & Cellars

DIMENSIONS

Nominal Height	32.0" (81 cm)
Height of Cabinet	31.38" (80 cm)
Nominal Width	18.0" (46 cm)
Width	17.75" (45 cm)
Nominal Depth	24.0" (61 cm)
Depth	23.5" (60 cm)
Depth with door at 90°	39.75" (101 cm)

CAPACITY & STORAGE

Capacity	3.3 cu.ft. (93 L)
Bottles	34 bottles
Cabinet	Black
Adjustable Shelves	Yes
Shelf Type	Wood
Shelf Qty	5
Interior Light	Yes

ELECTRICAL

US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	1.25
Voltage/Frequency	115 V AC/60 Hz

COOLING & PERFORMANCE

Defrost Type	Automatic
Compressor Warranty	5 Years
Thermostat Type	Digital
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	10.6 oz.
High Side PSI	150.0
Low Side PSI	50.0
Temperature Range	41º to 68ºF
Sound Level	33.8 dB
