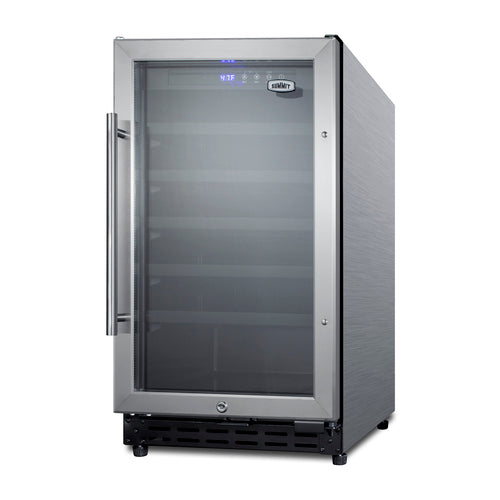

Summit Built-In Wine Cellar, ADA Compliant, 18" Wide, Stainless Steel (SWC1840BCSSADA)
SKU: SWC1840BCSSADA
Dimensions: 31.38 H x 17.94 W x 23.5 D
About This Product
The Summit SWC1840BCSSADA is an 18" wide built-in wine cellar, ADA compliant. It stores wine at steady cellar temperatures for homes, restaurants and hospitality spaces. The cabinet measures 31.38 in. H x 17.94 in. W x 23.5 in. D, offers 3.3 cu.ft. of capacity and uses automatic defrost.
The stainless steel cabinet is paired with a glass door. It operates on 115 V AC/60 Hz and draws 1.25 amps. It meets ADA height requirements for accessible installations. A lock helps keep the contents secure. It is backed by a 1-year manufacturer parts and labor warranty.
Planning a multi-unit project? Request a quote and our team will confirm pricing, availability and freight to your site.
Key Features
- ADA compliant
- Built-in capable
- Commercially approved
- 34 bottle capacity
- Stainless steel wrapped cabinet
- Professional towel bar handle
- Factory installed lock
- Automatic defrost
- Digital thermostat
- LED lighting
- Wooden shelves
- Reversible door
Specs & Details
Dimensions: 31.38 H x 17.94 W x 23.5 D
OVERVIEW
| Brand | Summit |
| Model | SWC1840BCSSADA |
| Category | Wine Coolers & Cellars |
DIMENSIONS
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 31.38" (80 cm) |
| Nominal Width | 18.0" (46 cm) |
| Width | 17.94" (46 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 23.5" (60 cm) |
CAPACITY & STORAGE
| Capacity | 3.3 cu.ft. (93 L) |
| Bottles | 34 bottles |
| Cabinet | Stainless Steel |
| Adjustable Shelves | Yes |
| Shelf Type | Wood |
| Shelf Qty | 5 |
| Interior Light | Yes |
ELECTRICAL
| US Electrical Safety | CSA |
| Amps | 1.25 |
| Voltage/Frequency | 115 V AC/60 Hz |
COOLING & PERFORMANCE
| Defrost Type | Automatic |
| Compressor Warranty | 5 Years |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.06 oz. |
| High Side PSI | 150.0 |
| Low Side PSI | 50.0 |
| Temperature Range | 41º to 68ºF |
| Sound Level | 33.8 dB |
CERTIFICATIONS & WARRANTY
| Parts & Labor Warranty | 1 Year |
FEATURES & FINISH
| Door | Glass |
| Weight | 103.0 lbs. (47 kg) |
| Number of Zones | 1 |
| Door Swing | RHD |
| Reversible | Yes |
| Level Legs | 4 |
