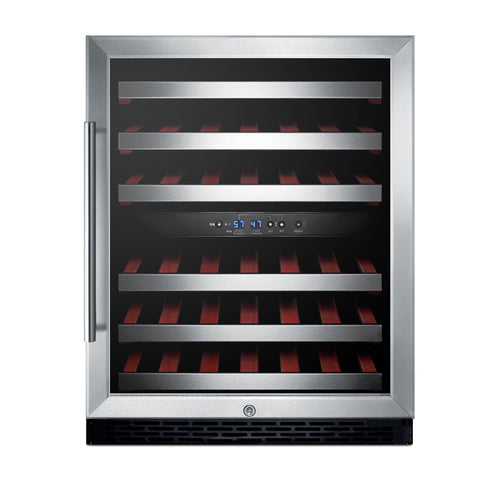

Summit Built-In Wine Cellar, ADA Compliant, 24" Wide, Stainless Steel (SWC530BLBISTCSSADA)
SKU: SWC530BLBISTCSSADA
Dimensions: 32 H x 23.63 W x 23.38 D
About This Product
The Summit SWC530BLBISTCSSADA is a 24" wide built-in wine cellar, ADA compliant. It stores wine at steady cellar temperatures for homes, restaurants and hospitality spaces. The cabinet measures 32 in. H x 23.63 in. W x 23.38 in. D and uses automatic defrost.
The stainless steel cabinet is paired with a glass door. It operates on 115 V AC/60 Hz and draws 2 amps. It meets ADA height requirements for accessible installations. A lock helps keep the contents secure. It is backed by a 1-year manufacturer parts and labor warranty.
Planning a multi-unit project? Request a quote and our team will confirm pricing, availability and freight to your site.
Key Features
- ADA Compliant
- Built-in capable
- Stainless steel cabinet
- Digital thermostats
- Two temperature zones
- Automatic defrost
- Slide-out wooden shelving
- Versatile shelving
- Stainless steel door frame
- Glass door
- Interior light
- Factory installed lock
Specs & Details
Dimensions: 32 H x 23.63 W x 23.38 D
OVERVIEW
| Brand | Summit |
| Model | SWC530BLBISTCSSADA |
| Category | Wine Coolers & Cellars |
DIMENSIONS
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.63" (60 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 23.38" (59 cm) |
| Depth with Handle | 25.0" (64 cm) |
| Depth with door at 90° | 45.5" (116 cm) |
CAPACITY & STORAGE
| Bottles | 46 bottles |
| Cabinet | Stainless Steel |
| Shelf Type | Wood |
| Shelf Qty | 6 |
| Interior Light | Yes |
ELECTRICAL
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 2.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
COOLING & PERFORMANCE
| Defrost Type | Automatic |
| Compressor Warranty | 5 Years |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.23 oz. |
| High Side PSI | 150.0 |
| Low Side PSI | 50.0 |
| Sound Level | 34.3 dB |
CERTIFICATIONS & WARRANTY
| Parts & Labor Warranty | 1 Year |
FEATURES & FINISH
| Door | Glass |
| Weight | 112.0 lbs. (51 kg) |
| Number of Zones | 2 |
| Door Swing | RHD |
| Reversible | Yes |
| Level Legs | 2 |
