Summit Compact All-Freezer, White (FS24L)

SKU: FS24L

Dimensions: 19.63 H x 18.5 W x 17.63 D

About This Product

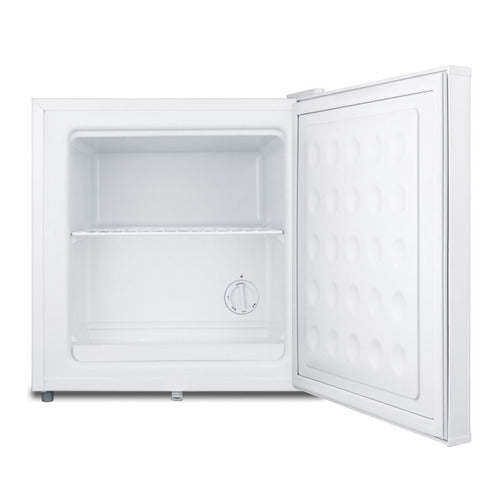

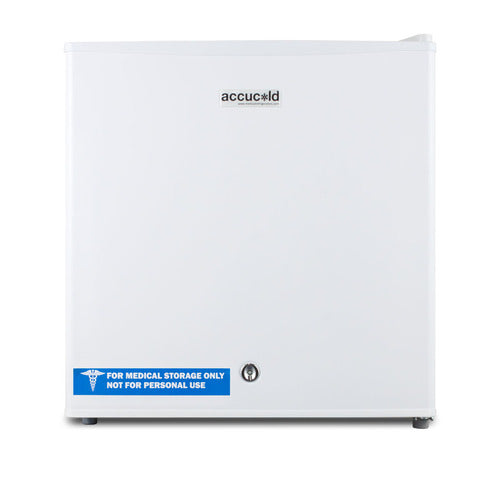

The Summit FS24L is a compact all-freezer. It delivers frozen storage in a small footprint for apartments, dorms, offices and extra-capacity needs. The cabinet measures 19.63 in. H x 18.5 in. W x 17.63 in. D, offers 1.4 cu.ft. of capacity and uses manual defrost.

It has a white cabinet finish. It operates on 115 V AC/60 Hz and draws 0.8 amps. A lock helps keep the contents secure. It is backed by a 1-year manufacturer parts and labor warranty.

Planning a multi-unit project? Request a quote and our team will confirm pricing, availability and freight to your site.

Key Features

Compact size
Factory installed lock
Manual defrost
One-piece interior liner
Removable shelf
Reversible door
Adjustable thermostat
Flat door liner
100% CFC Free
CARB Compliant

Specs & Details

Dimensions: 19.63 H x 18.5 W x 17.63 D

OVERVIEW

Brand	Summit
Model	FS24L
Category	Compact Freezers

DIMENSIONS

Nominal Height	20.0" (51 cm)
Height of Cabinet	19.63" (50 cm)
Height to Hinge Cap	20.0" (51 cm)
Nominal Width	19.0" (48 cm)
Width	18.5" (47 cm)
Nominal Depth	18.0" (46 cm)
Depth	17.63" (45 cm)
Depth with door at 90°	34.5" (88 cm)
Interior Height	14.38" (37 cm)
Interior Width	13.5" (34 cm)
Interior Depth	13.25" (34 cm)
Compressor Step Height	8.5" (22 cm)
Compressor Step Width	13.5" (34 cm)
Compressor Step Depth	6.0" (15 cm)

CAPACITY & STORAGE

Capacity	1.4 cu.ft. (40 L)
Cabinet	White
Shelf Type	Wire
Shelf Qty	1

ELECTRICAL

US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	0.8
Voltage/Frequency	115 V AC/60 Hz

COOLING & PERFORMANCE

Defrost Type	Manual
Compressor Warranty	5 Years
Thermostat Type	Dial
Refrigerant Type	R600a
Refrigerant Amount	0.8 oz.
High Side PSI	110.0
Low Side PSI	70.0

CERTIFICATIONS & WARRANTY

Parts & Labor Warranty

1 Year

FEATURES & FINISH

Door	White
Weight	31.0 lbs. (14 kg)
Door Swing	RHD
Reversible	Yes
Level Legs	2
