Summit Compact All-Freezer, White (FS24LMED2)

SKU: FS24LMED2

Dimensions: 21.75 H x 18.5 W x 17.63 D

About This Product

The Summit FS24LMED2 is a compact all-freezer. It is built for laboratory and life science cold storage. The cabinet measures 21.75 in. H x 18.5 in. W x 17.63 in. D, offers 1.4 cu.ft. of capacity and uses manual defrost.

It has a white cabinet finish. A lock helps keep the contents secure. It is backed by a 2-year manufacturer parts and labor warranty.

Planning a multi-unit project? Request a quote and our team will confirm pricing, availability and freight to your site.

Key Features

Reliable temperature stability
Digital thermostat
High/low temperature alarm
NIST calibrated temperature display
Buffered temperature probe

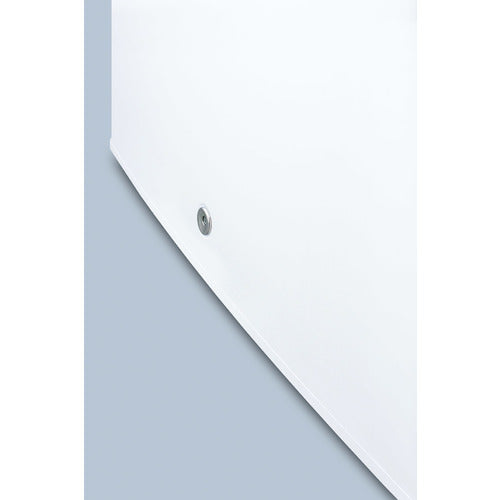

Factory installed lock
Manual defrost
Hospital grade cord and plug
3/8" access port
Removable shelf
Flat door liner
Fully finished white cabinet

Specs & Details

Dimensions: 21.75 H x 18.5 W x 17.63 D

OVERVIEW

Brand	Summit
Model	FS24LMED2
Category	Lab & Life Science Cold Storage

DIMENSIONS

Nominal Height	22.0" (56 cm)
Height of Cabinet	21.75" (55 cm)
Nominal Width	19.0" (48 cm)
Width	18.5" (47 cm)
Nominal Depth	18.0" (46 cm)
Depth	17.63" (45 cm)
Depth with door at 90°	34.5" (88 cm)
Interior Height	14.38" (37 cm)
Interior Width	13.5" (34 cm)
Interior Depth	13.25" (34 cm)
Compressor Step Height	8.5" (22 cm)
Compressor Step Width	13.5" (34 cm)
Compressor Step Depth	6.0" (15 cm)

CAPACITY & STORAGE

Capacity	1.4 cu.ft. (40 L)
Cabinet	White
Shelf Type	Wire
Shelf Qty	1

ELECTRICAL

US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	1.0

COOLING & PERFORMANCE

Defrost Type	Manual
Compressor Warranty	5 Years
Thermostat Type	Digital
Refrigerant Type	R600a
Refrigerant Amount	0.8 oz.
High Side PSI	110.0
Low Side PSI	70.0
Temperature Range	-20º to -15ºC

CERTIFICATIONS & WARRANTY

Parts & Labor Warranty

2 Years

FEATURES & FINISH

Door	White
Weight	40.0 lbs. (18 kg)
Door Swing	RHD
Reversible	Factory Reversible
Level Legs	2
