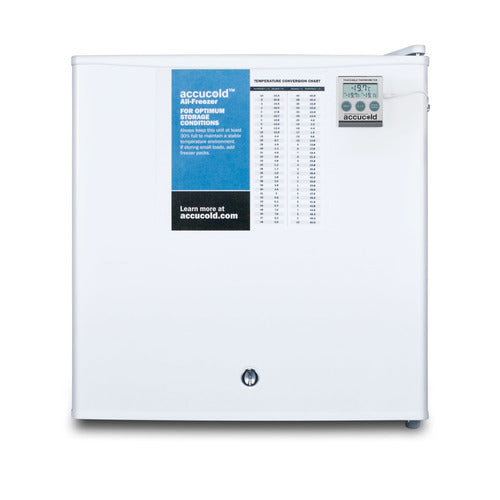

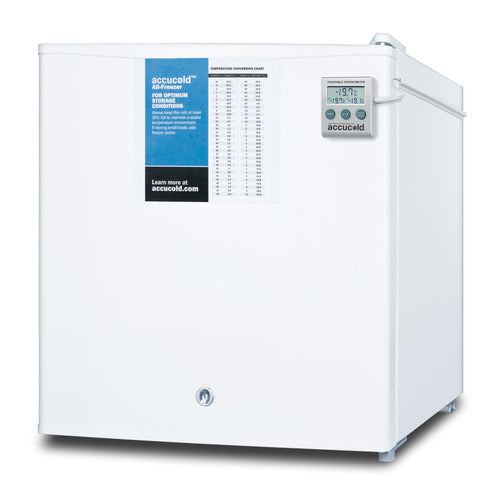

Summit Compact All-Freezer, White (FS24LPLUS2)
SKU: FS24LPLUS2
Dimensions: 19.63 H x 18.5 W x 17.63 D
About This Product
The Summit FS24LPLUS2 is a compact all-freezer. It is designed for medical, pharmacy and clinical storage where stable temperatures matter. The cabinet measures 19.63 in. H x 18.5 in. W x 17.63 in. D, offers 1.4 cu.ft. of capacity and uses manual defrost.
It has a white cabinet finish. It operates on 115 V AC/60 Hz and draws 1 amps. A lock helps keep the contents secure. It is backed by a 1-year manufacturer parts and labor warranty.
Planning a multi-unit project? Request a quote and our team will confirm pricing, availability and freight to your site.
Key Features
- Compact dimensions

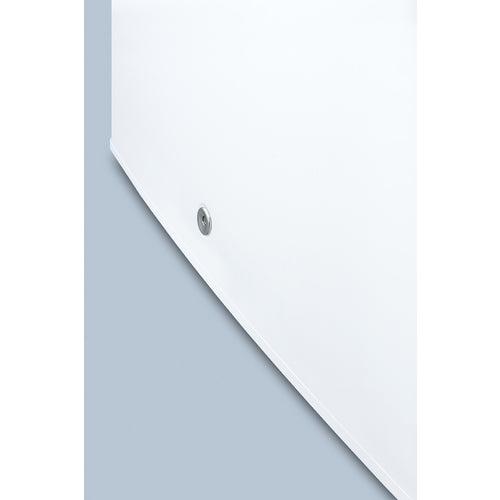

- Factory installed lock

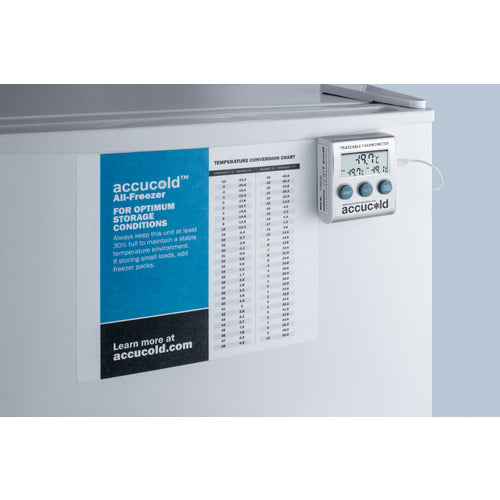

- NIST calibrated thermometer
- Buffered temperature probe
- Manual defrost
- -20° capable

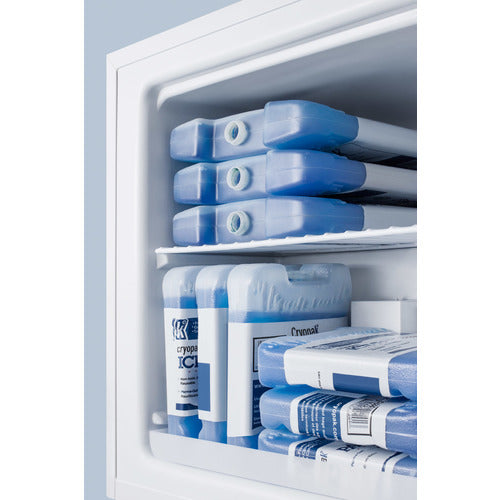

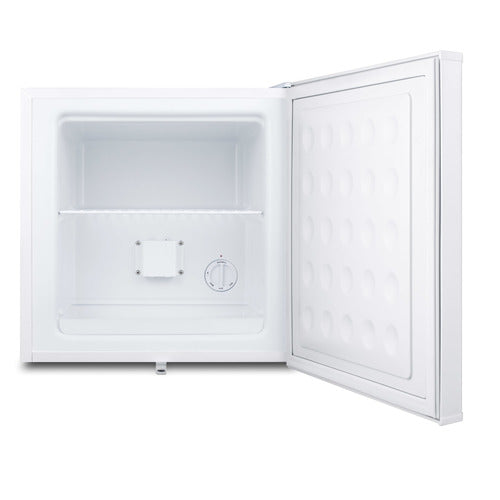

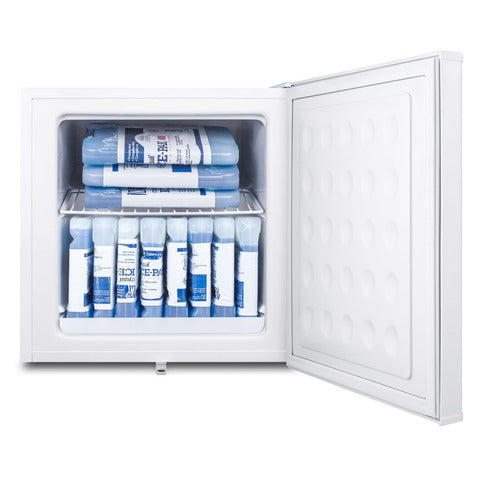

- Removable shelf
- One-piece interior liner

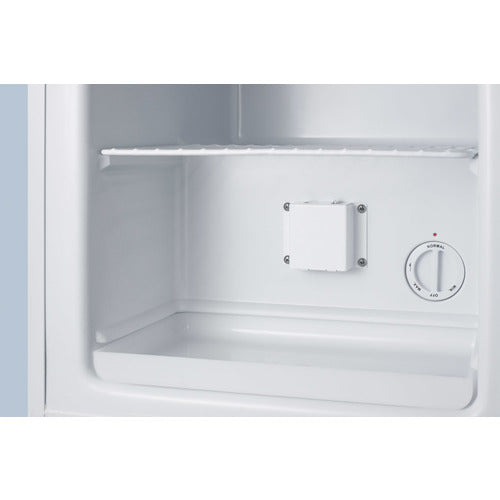

- Adjustable thermostat
- Flat door liner
- Approved for use in the USA and Canada
- 100% CFC Free
Specs & Details
Dimensions: 19.63 H x 18.5 W x 17.63 D
OVERVIEW
| Brand | Summit |
| Model | FS24LPLUS2 |
| Category | Medical & Pharmacy Refrigerators |
DIMENSIONS
| Nominal Height | 20.0" (51 cm) |
| Height of Cabinet | 19.63" (50 cm) |
| Height to Hinge Cap | 20.0" (51 cm) |
| Nominal Width | 19.0" (48 cm) |
| Width | 18.5" (47 cm) |
| Nominal Depth | 18.0" (46 cm) |
| Depth | 17.63" (45 cm) |
| Depth with door at 90° | 34.5" (88 cm) |
| Interior Height | 14.38" (37 cm) |
| Interior Width | 13.5" (34 cm) |
| Interior Depth | 13.25" (34 cm) |
| Compressor Step Height | 8.5" (22 cm) |
| Compressor Step Width | 13.5" (34 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
CAPACITY & STORAGE
| Capacity | 1.4 cu.ft. (40 L) |
| Cabinet | White |
| Shelf Type | Wire |
| Shelf Qty | 1 |
ELECTRICAL
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
COOLING & PERFORMANCE
| Defrost Type | Manual |
| Compressor Warranty | 5 Years |
| Thermostat Type | Dial |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.8 oz. |
| High Side PSI | 110.0 |
| Low Side PSI | 70.0 |
CERTIFICATIONS & WARRANTY
| Parts & Labor Warranty | 1 Year |
FEATURES & FINISH
| Door | White |
| Weight | 35.0 lbs. (16 kg) |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Level Legs | 2 |
