Summit Compact All-Freezer, White (FS30L7PLUS2)
SKU: FS30L7PLUS2
Dimensions: 24.5 H x 18.5 W x 17.75 D
About This Product
The Summit FS30L7PLUS2 is a compact all-freezer. It is designed for medical, pharmacy and clinical storage where stable temperatures matter. The cabinet measures 24.5 in. H x 18.5 in. W x 17.75 in. D, offers 1.8 cu.ft. of capacity and uses manual defrost.
It has a white cabinet finish. It operates on 115 V AC/60 Hz and draws 0.8 amps. A lock helps keep the contents secure. It is backed by a 1-year manufacturer parts and labor warranty.
Planning a multi-unit project? Request a quote and our team will confirm pricing, availability and freight to your site.
Key Features
- Commercially approved
- Compact dimensions
- Manual defrost
- -20ºC capable

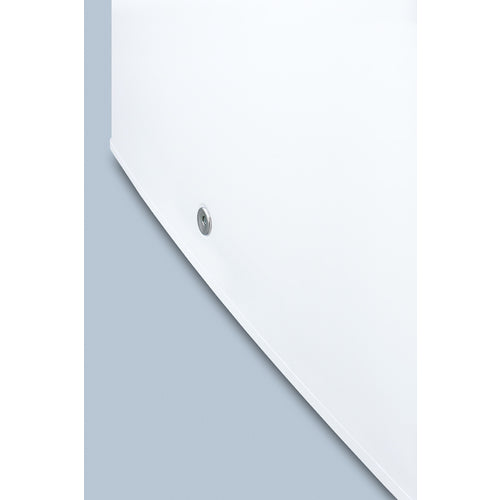

- Factory installed lock

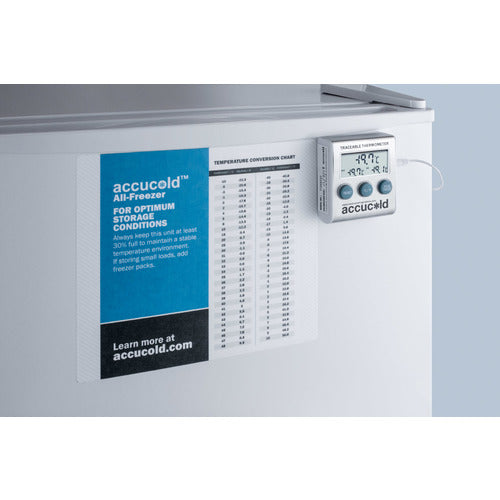

- NIST calibrated thermometer

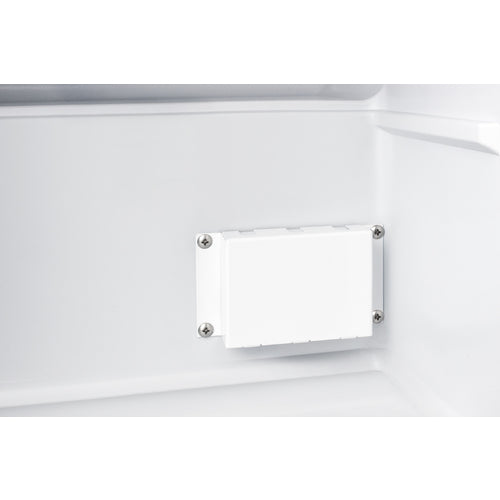

- Buffered temperature probe

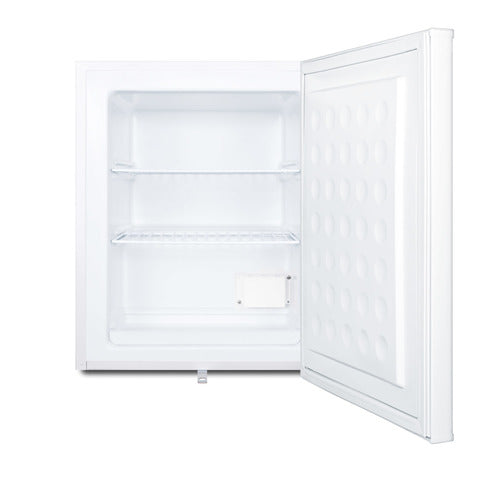

- Removable shelves
- Adjustable thermostat
- Flat door liner
- One piece interior liner
- Magnetic door gasket
Specs & Details
Dimensions: 24.5 H x 18.5 W x 17.75 D
OVERVIEW
| Brand | Summit |
| Model | FS30L7PLUS2 |
| Category | Medical & Pharmacy Refrigerators |
DIMENSIONS
| Nominal Height | 25.0" (64 cm) |
| Height of Cabinet | 24.5" (62 cm) |
| Height to Hinge Cap | 24.63" (63 cm) |
| Nominal Width | 19.0" (48 cm) |
| Width | 18.5" (47 cm) |
| Nominal Depth | 18.0" (46 cm) |
| Depth | 17.75" (45 cm) |
| Depth with door at 90° | 34.5" (88 cm) |
| Interior Height | 18.63" (47 cm) |
| Interior Width | 13.38" (34 cm) |
| Interior Depth | 13.0" (33 cm) |
| Compressor Step Height | 8.0" (20 cm) |
| Compressor Step Width | 13.38" (34 cm) |
| Compressor Step Depth | 5.75" (15 cm) |
CAPACITY & STORAGE
| Capacity | 1.8 cu.ft. (51 L) |
| Cabinet | White |
| Shelf Type | Wire |
| Shelf Qty | 2 |
ELECTRICAL
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 0.8 |
| Voltage/Frequency | 115 V AC/60 Hz |
COOLING & PERFORMANCE
| Defrost Type | Manual |
| Compressor Warranty | 5 Years |
| Thermostat Type | Dial |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.8 oz. |
CERTIFICATIONS & WARRANTY
| Sanitation | ETL-S |
| Parts & Labor Warranty | 1 Year |
FEATURES & FINISH
| Door | White |
| Weight | 50.0 lbs. (23 kg) |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Level Legs | 2 |
