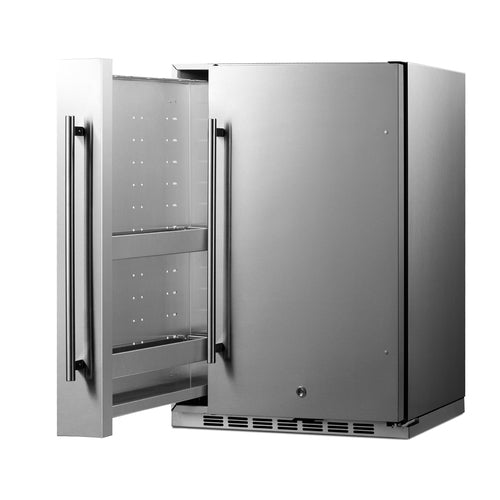

Summit Shallow Depth 24" Wide Outdoor Built-In All-Refrigerator With Slide-Out Storage Compartment, Stainless Steel (SPR196OS24)
SKU: SPR196OS24
Dimensions: 34.25 H x 23.75 W x 17.25 D
About This Product
The Summit SPR196OS24 is a shallow depth 24" wide outdoor built-in all-refrigerator with slide-out storage compartment. It is rated for outdoor use, making it a good fit for patios, pool areas and outdoor kitchens. The cabinet measures 34.25 in. H x 23.75 in. W x 17.25 in. D, offers 3.13 cu.ft. of capacity and uses automatic defrost.
It has a stainless steel cabinet finish. It operates on 115 V AC/60 Hz and draws 1.3 amps. A lock helps keep the contents secure. It is backed by a 1-year manufacturer parts and labor warranty.
Planning a multi-unit project? Request a quote and our team will confirm pricing, availability and freight to your site.
Key Features
- All-refrigerator with extra storage
- Weatherproof design
- 17.25" shallow depth
- Complete stainless steel construction
- Pull-out side compartment
- Vinyl outdoor cover
- Factory installed lock
- Professional handles
- Stainless steel shelves (side compartment)
- 3 peg hooks (side compartment)
- Wine glass storage (side compartment)
- Automatic defrost
Specs & Details
Dimensions: 34.25 H x 23.75 W x 17.25 D
OVERVIEW
| Brand | Summit |
| Model | SPR196OS24 |
| Category | Outdoor Refrigerators |
DIMENSIONS
| Nominal Height | 35.0" (89 cm) |
| Height of Cabinet | 34.25" (87 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.75" (60 cm) |
| Nominal Depth | 18.0" (46 cm) |
| Depth | 17.25" (44 cm) |
| Depth with Handle | 19.0" (48 cm) |
| Depth with door at 90° | 35.0" (89 cm) |
| Interior Height 1 | 29.0" (74 cm) |
| Interior Width 1 | 4.25" (11 cm) |
| Interior Depth 1 | 12.75" (32 cm) |
| Interior Height | 29.0" (74 cm) |
| Interior Width | 16.0" (41 cm) |
| Interior Depth | 12.75" (32 cm) |
| Compressor Step Height | 7.0" (18 cm) |
| Compressor Step Width | 16.0" (41 cm) |
| Compressor Step Depth | 6.25" (16 cm) |
CAPACITY & STORAGE
| Capacity | 3.13 cu.ft. (89 L) |
| Cabinet | Stainless Steel |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Interior Light | Yes |
ELECTRICAL
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Energy Usage/Year | 259.0kWh/year |
| Amps | 1.3 |
| Voltage/Frequency | 115 V AC/60 Hz |
COOLING & PERFORMANCE
| Defrost Type | Automatic |
| Compressor Warranty | 5 Years |
| Thermostat Type | Dial |
| Fan Type | Interior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.88oz. |
| High Side PSI | 320.0 |
| Low Side PSI | 120.0 |
| Temperature Range | 34 to 50ºF |
| Sound Level | 33.4 dB |
CERTIFICATIONS & WARRANTY
| Parts & Labor Warranty | 1 Year |
FEATURES & FINISH
| Door | Stainless Steel |
| Door Swing | RHD |
| Reversible | No |
| Level Legs Qty | 4 |
