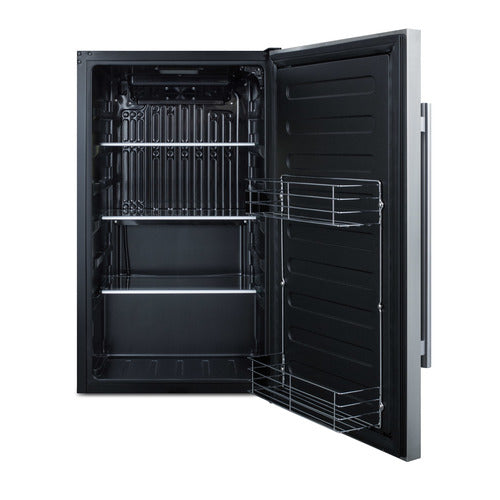

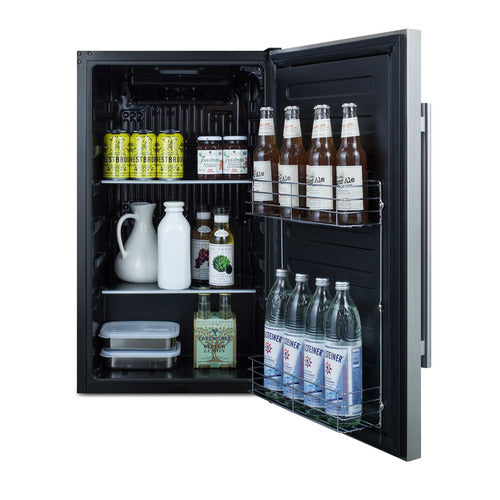

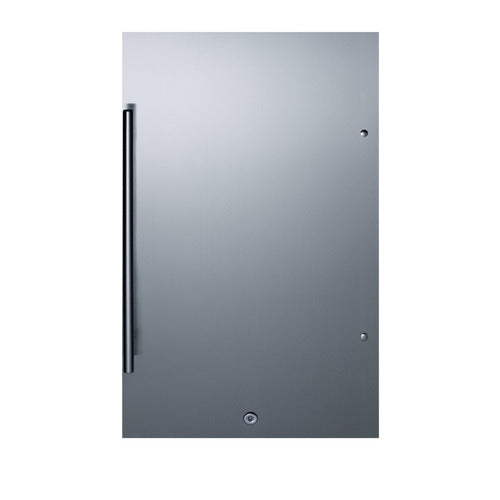

Summit Shallow Depth Outdoor Built-In All-Refrigerator, ADA Compliant, Black (SPR196OSADA)
SKU: SPR196OSADA
Dimensions: 32.5 H x 19 W x 17.25 D
About This Product
The Summit SPR196OSADA is a shallow depth outdoor built-in all-refrigerator, ADA compliant. It is rated for outdoor use, making it a good fit for patios, pool areas and outdoor kitchens. The cabinet measures 32.5 in. H x 19 in. W x 17.25 in. D, offers 3.13 cu.ft. of capacity and uses automatic defrost.
The black cabinet is paired with a stainless steel door. It operates on 115 V AC/60 Hz and draws 1.3 amps. It meets ADA height requirements for accessible installations. It is ENERGY STAR certified for lower operating costs. A lock helps keep the contents secure. It is backed by a 1-year manufacturer parts and labor warranty.
Planning a multi-unit project? Request a quote and our team will confirm pricing, availability and freight to your site.
Key Features
- ADA compatible height
- Weatherproof design
- 17.25" shallow depth
- ENERGY STAR certified
- Commercially approved
- Stainless steel door
- Automatic defrost
- Reversible door
- Factory installed lock
- Professional handle
- Adjustable shelves
- Door racks
Specs & Details
Dimensions: 32.5 H x 19 W x 17.25 D
OVERVIEW
| Brand | Summit |
| Model | SPR196OSADA |
| Category | Outdoor Refrigerators |
DIMENSIONS
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.5" (83 cm) |
| Nominal Width | 19.0" (48 cm) |
| Width | 19.0" (48 cm) |
| Nominal Depth | 18.0" (46 cm) |
| Depth | 17.25" (44 cm) |
| Depth with Handle | 19.0" (48 cm) |
| Depth with door at 90° | 35.0" (89 cm) |
| Interior Height | 29.0" (74 cm) |
| Interior Width | 16.0" (41 cm) |
| Interior Depth | 12.75" (32 cm) |
| Compressor Step Height | 7.0" (18 cm) |
| Compressor Step Width | 16.0" (41 cm) |
| Compressor Step Depth | 6.25" (16 cm) |
CAPACITY & STORAGE
| Capacity | 3.13 cu.ft. (89 L) |
| Cabinet | Black |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Interior Light | Yes |
ELECTRICAL
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Energy Usage/Year | 259.0kWh/year |
| Amps | 1.3 |
| Voltage/Frequency | 115 V AC/60 Hz |
COOLING & PERFORMANCE
| Defrost Type | Automatic |
| Compressor Warranty | 5 Years |
| Thermostat Type | Dial |
| Fan Type | Interior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.88oz. |
| High Side PSI | 320.0 |
| Low Side PSI | 120.0 |
| Temperature Range | 34 to 50ºF |
| Sound Level | 33.4 dB |
CERTIFICATIONS & WARRANTY
| Sanitation | ETL-S |
| Parts & Labor Warranty | 1 Year |
FEATURES & FINISH
| Door | Stainless Steel |
| Weight | 70.0 lbs. (32 kg) |
| Door Swing | RHD |
| Reversible | Yes |
| Level Legs Qty | 2 |
