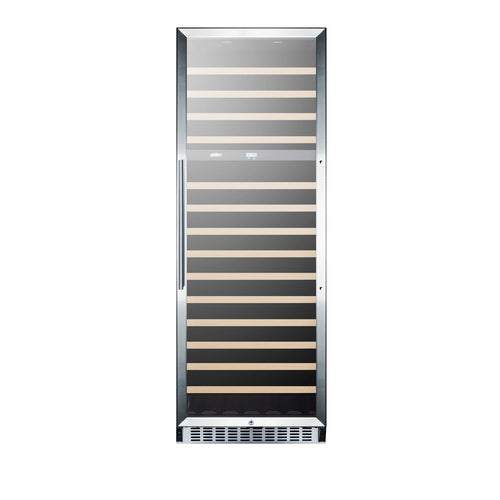

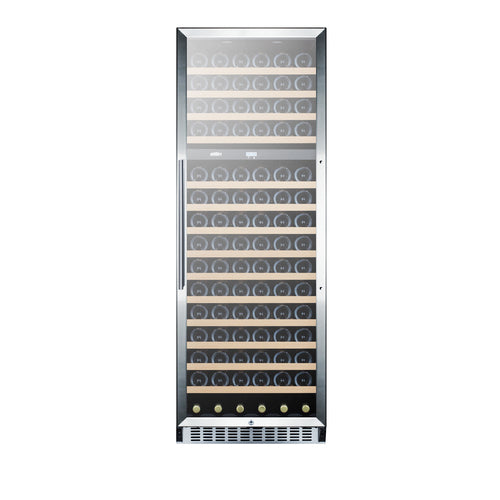

Summit Wine Cellar, 24" Wide, Black (SWC1966)
SKU: SWC1966
Dimensions: 69.75 H x 23.63 W x 26.63 D
About This Product
The Summit SWC1966 is a 24" wide wine cellar. It stores wine at steady cellar temperatures for homes, restaurants and hospitality spaces. The cabinet measures 69.75 in. H x 23.63 in. W x 26.63 in. D, offers 15.9 cu.ft. of capacity and uses automatic defrost.
The black cabinet is paired with a glass door. It operates on 115 V AC/60 Hz and draws 1.7 amps. A lock helps keep the contents secure. It is backed by a 1-year manufacturer parts and labor warranty.
Planning a multi-unit project? Request a quote and our team will confirm pricing, availability and freight to your site.
Key Features
- Large capacity
- Double pane tempered glass door
- Two temperature zones
- Commercial design
- Digital thermostats
- LED lighting
- Slide-out wooden shelves
- Factory installed lock
- Reversible door
- Fully finished black cabinet
- Professional handle
- Automatic defrost
Specs & Details
Dimensions: 69.75 H x 23.63 W x 26.63 D
OVERVIEW
| Brand | Summit |
| Model | SWC1966 |
| Category | Wine Coolers & Cellars |
DIMENSIONS
| Nominal Height | 70.0" (178 cm) |
| Height of Cabinet | 69.75" (177 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.63" (60 cm) |
| Nominal Depth | 27.0" (69 cm) |
| Depth | 26.63" (68 cm) |
| Depth with Handle | 27.75" (70 cm) |
| Depth with door at 90° | 48.75" (124 cm) |
CAPACITY & STORAGE
| Capacity | 15.9 cu.ft. (450 L) |
| Bottles | 160 bottles |
| Cabinet | Black |
| Shelf Type | Wood |
| Shelf Qty | 14 |
| Interior Light | Yes |
ELECTRICAL
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.7 |
| Voltage/Frequency | 115 V AC/60 Hz |
COOLING & PERFORMANCE
| Defrost Type | Automatic |
| Compressor Warranty | 5 Years |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.91 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Temperature Range | 41°F to 55°F (upper zone); 55°F to 72°F (lower zone) |
| Sound Level | 33.7 dB |
CERTIFICATIONS & WARRANTY
| Parts & Labor Warranty | 1 Year |
FEATURES & FINISH
| Door | Glass |
| Weight | 187.0 lbs. (85 kg) |
| Number of Zones | 2 |
| Door Swing | RHD |
| Reversible | Yes |
| Sabbath Mode | Yes |
