VTech E-Smart W960 Wireless PTAC Thermostat with Occupancy Sensor, Space Gray

SKU: 80-T107-02

Images are for reference only. Please verify the model number and written specifications on your quote or order confirmation. Ordering information

About This Product

The VTech E-Smart W960 is a battery-powered wireless thermostat for PTAC and VTAC guest rooms. A small controller card mounts on the PTAC chassis and talks to the thermostat over ZigBee 3.0, so the thermostat can go anywhere in the room with no new wiring or electrician. Built-in occupancy sensing lets the W960 act as a stand-alone energy management system, which VTech says can cut heating and cooling energy use by up to 30%.

Outfitting multiple rooms? Request a quote and our team will confirm pricing, availability and lead time for your property.

Key Highlights

Wireless (ZigBee 3.0) – no wiring needed at the thermostat
Occupancy sensing up to 9 m / 120° for stand-alone energy savings
Works with major PTAC / VTAC / heat pump brands
Antibacterial coating tested to inhibit 99.9% of bacteria growth
3-year limited warranty

Features

1.3" OLED display with 4 touch keys
Runs on 4 AAA alkaline batteries – about 24 months battery life
Controller card mounts directly to the PTAC chassis with the included wiring harness
Set up and relocate quickly with the E-Smart configuration app (Android 8.0 or higher)
USB-C diagnostic connection
Compatible PTAC brands (per VTech install guides): Amana, Frigidaire, GE Zoneline, Gree, Hotpoint, Infiniti, Midea and Seasons

In the Box

W960 wireless thermostat
Controller
Wiring harness
Deco plate

Compatible Parts & Accessories

Specs & Details

OVERVIEW

Brand	VTech
Model	E-Smart W960 (Space Gray)
Part Number	80-T107-02
Type	Wireless thermostat with PTAC controller
HVAC System	PTAC / VTAC / Heat Pump
Warranty	3-year limited

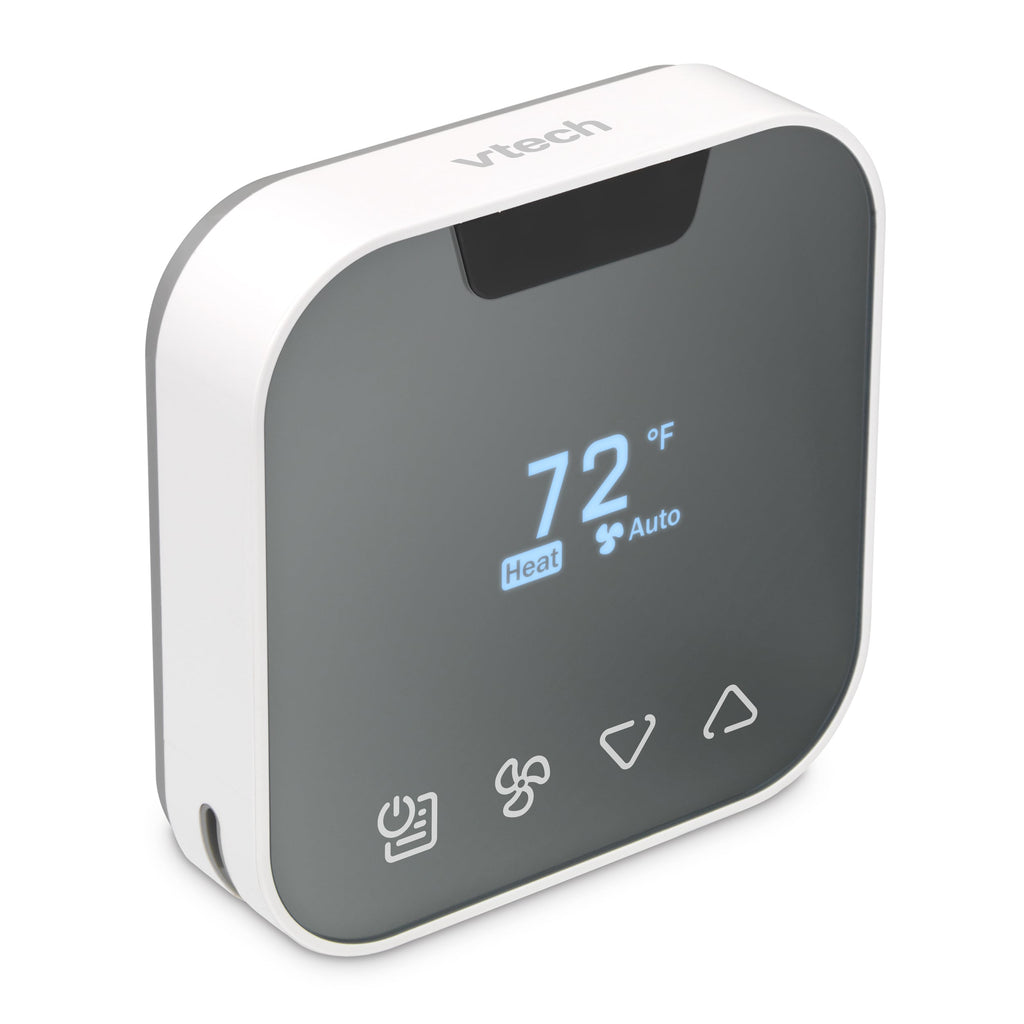

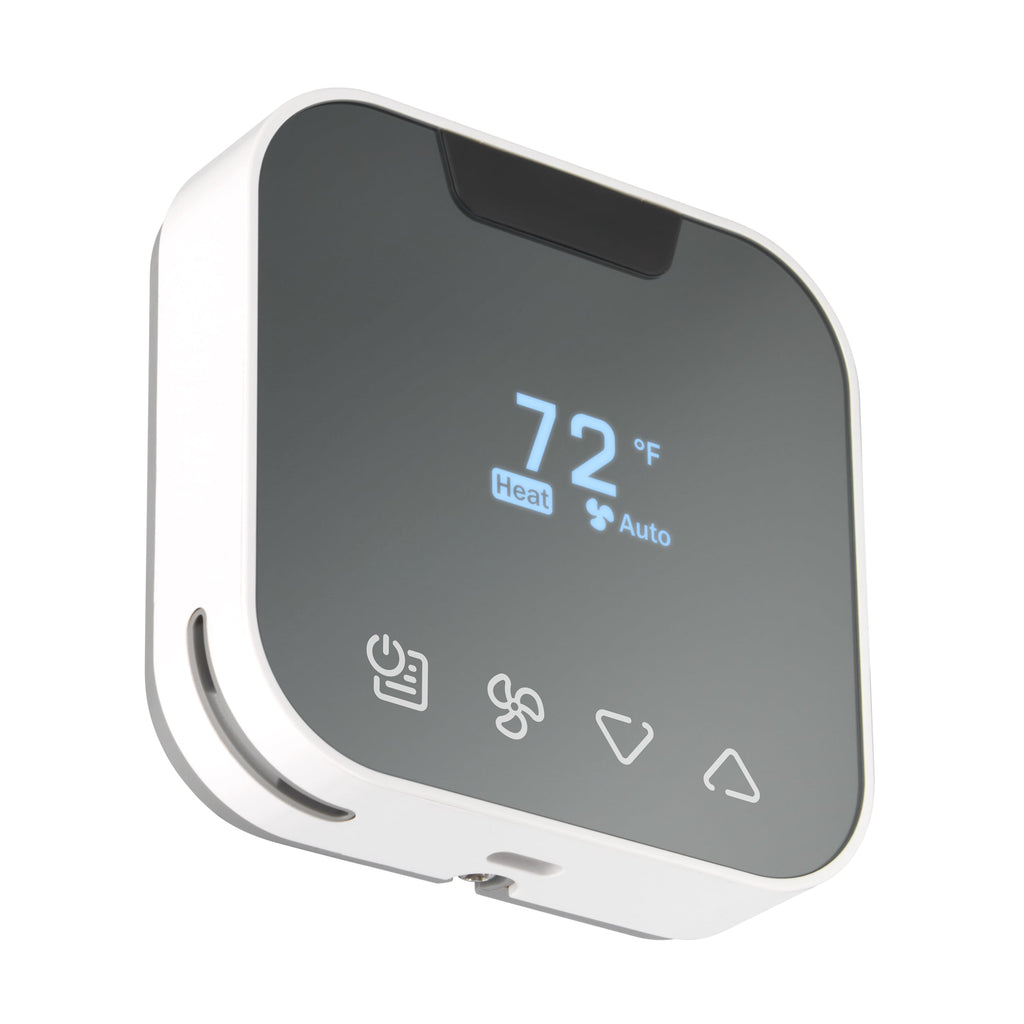

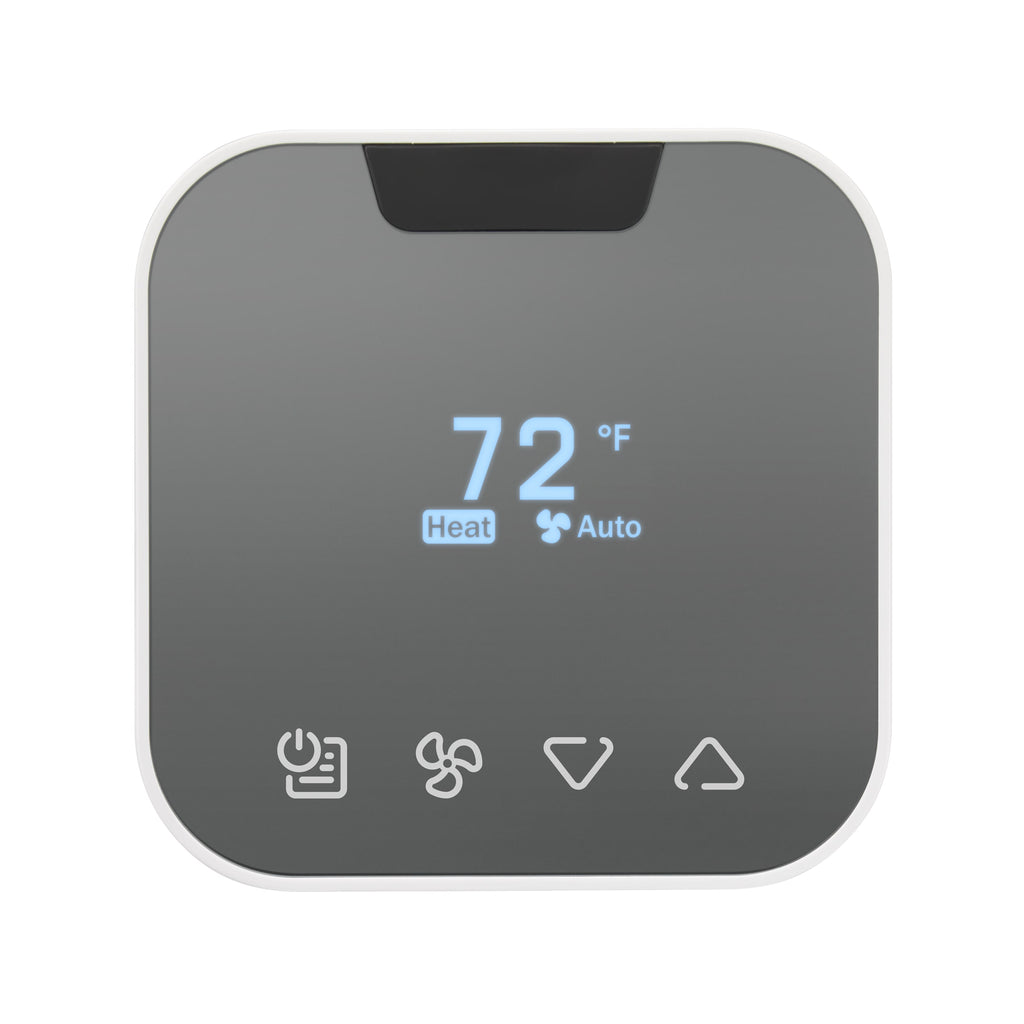

THERMOSTAT

Dimensions	3.4 x 3.4 x 0.9 in (8.6 x 8.6 x 2.3 cm)
Mounting	Surface mount
Power	4 x AAA alkaline batteries
Battery Life	24 months
Display	1.3" OLED (128 x 64)
Keys	4 touch keys
LED Indicator	1, red
Temperature Range	33–99°F (±1°F) / 1–37°C (±0.5°C)
Occupancy Sensing	Up to 9 m, 120° detection angle
Diagnostic Port	USB Type-C
Wireless	ZigBee 3.0, 2.4 GHz
Setup App	Android 8.0 or higher
Approvals	UL 62368-1; FCC Part 15B, 15.247, 15.249

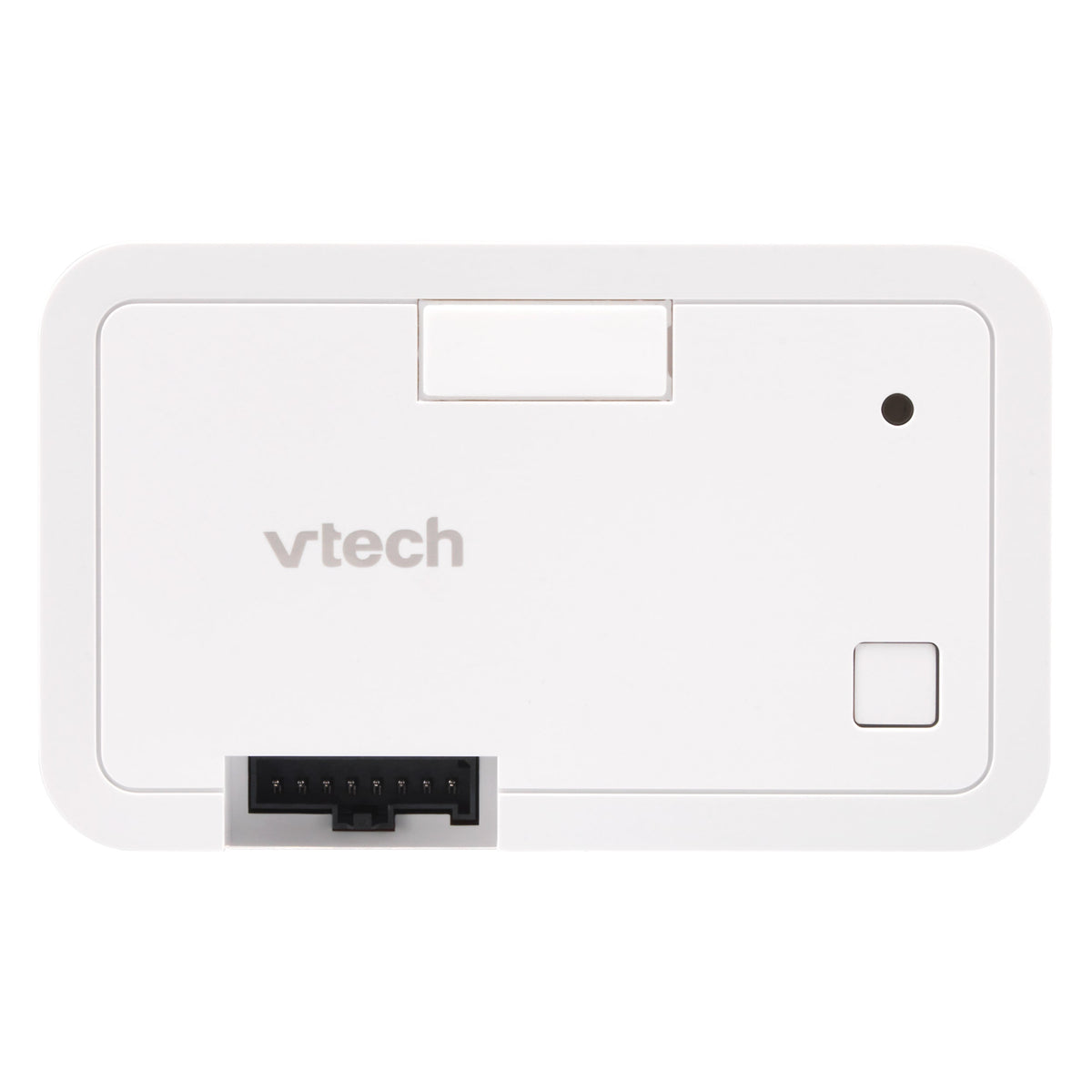

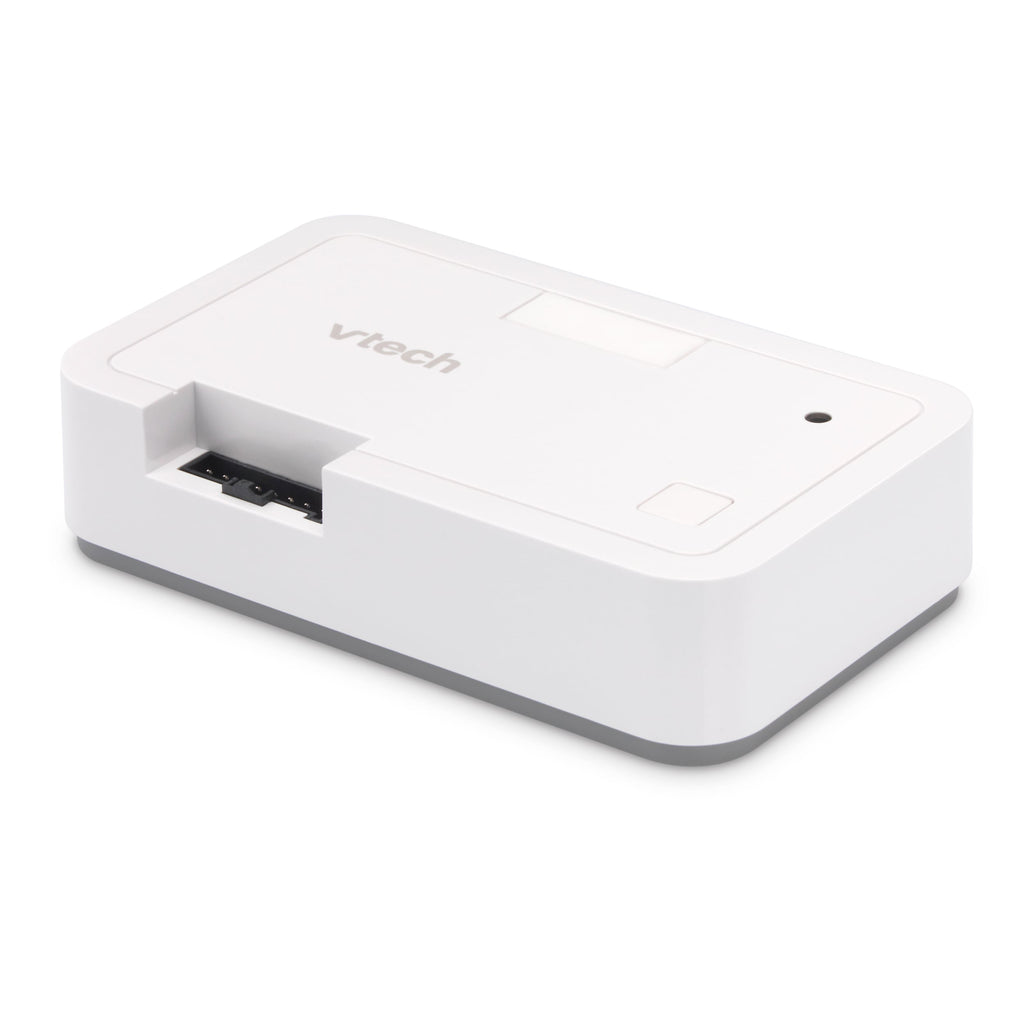

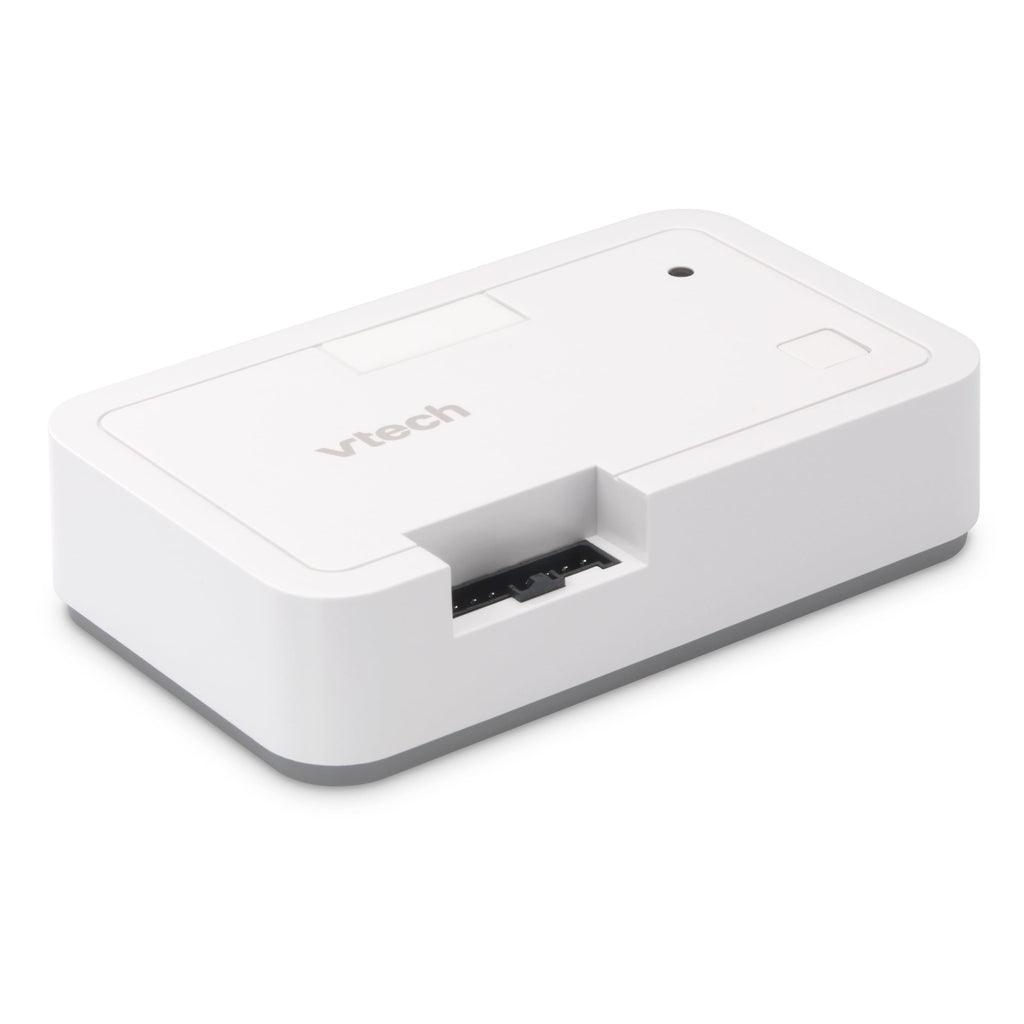

CONTROLLER

Dimensions	3.9 x 2.4 x 1 in (10 x 6 x 2.4 cm)
Mounting	Double-sided tape (on PTAC chassis)
Power	24 VAC, 50/60 Hz, 0.5 A with C (common) wire
Recommended Wire	24 gauge
Output	0.5 A max @ 24 VAC
Keys	1 pair button
LED Indicator	1, dual color
Wireless	ZigBee 3.0, 2.4 GHz
Approvals	UL 60730-1, UL 60730-2-9; FCC Part 15B, 15.247, 15.249
