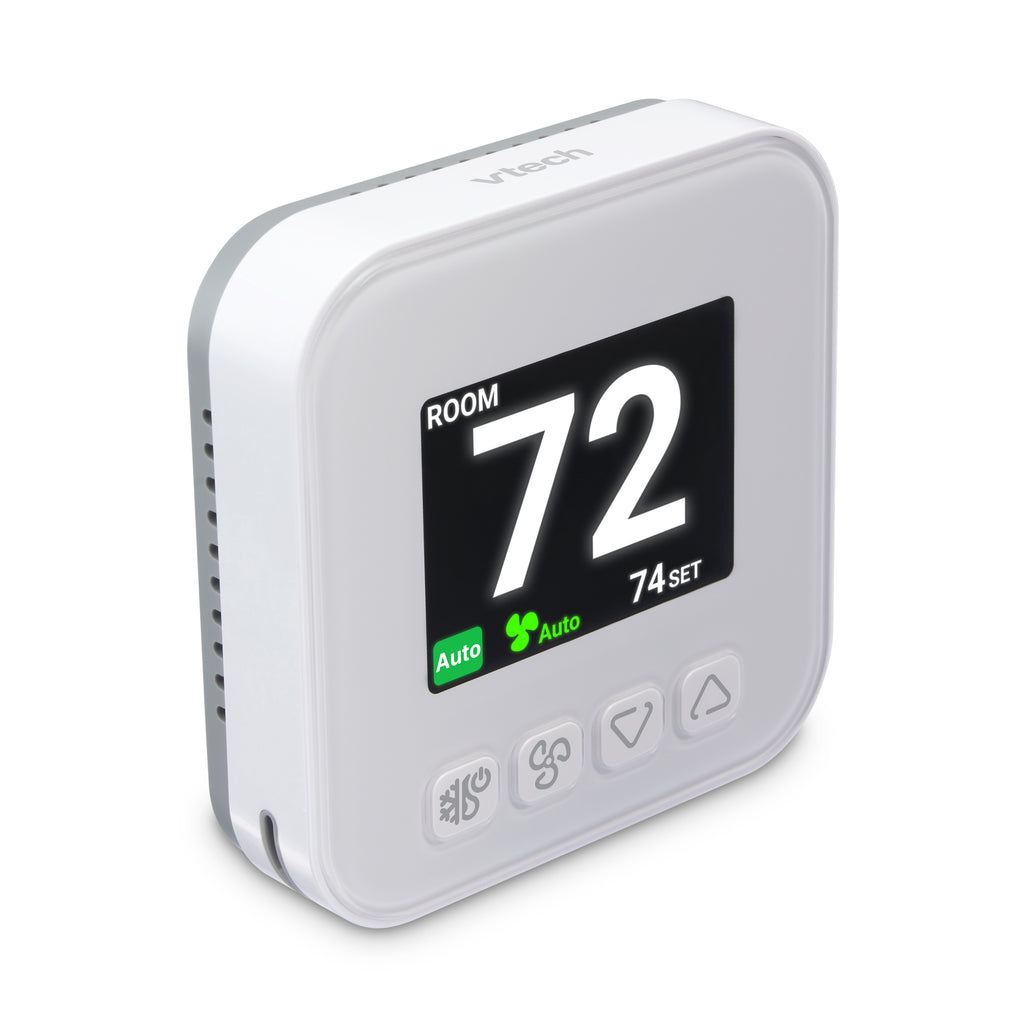

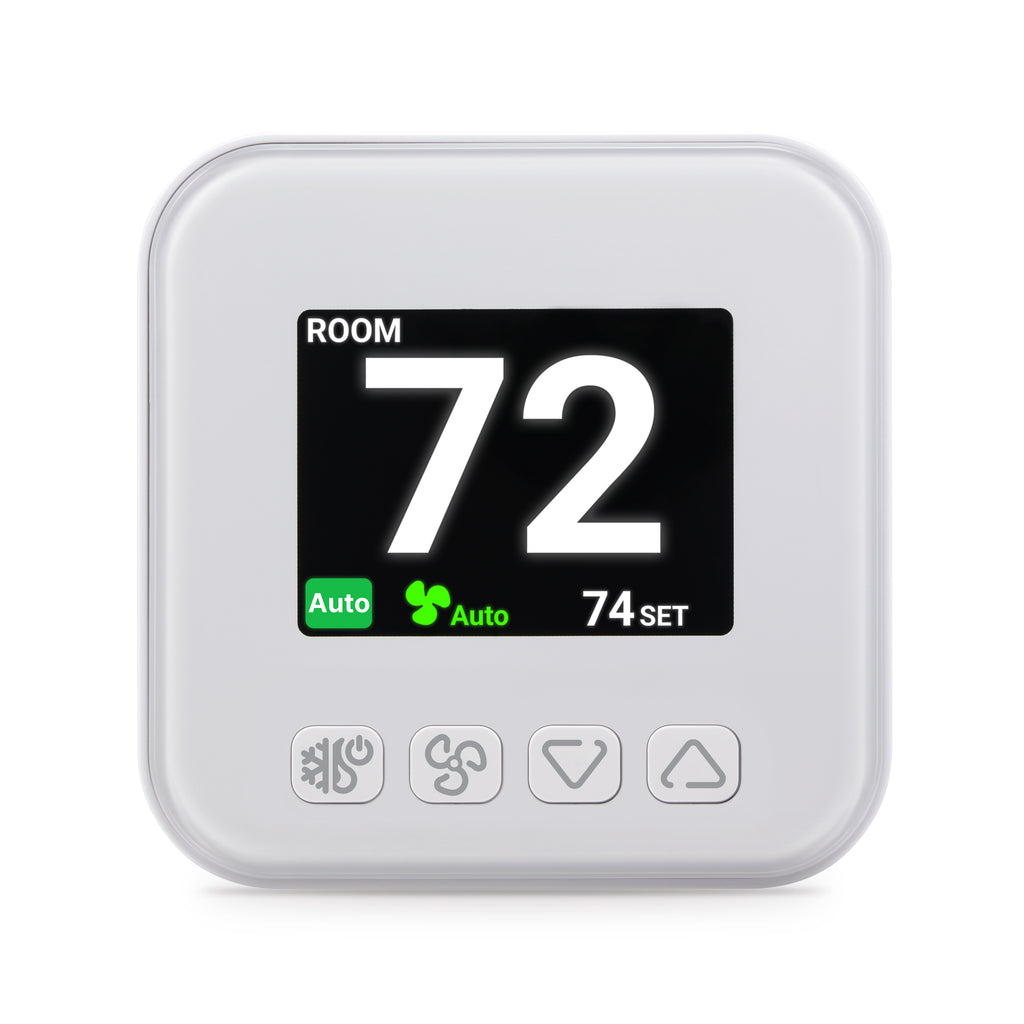

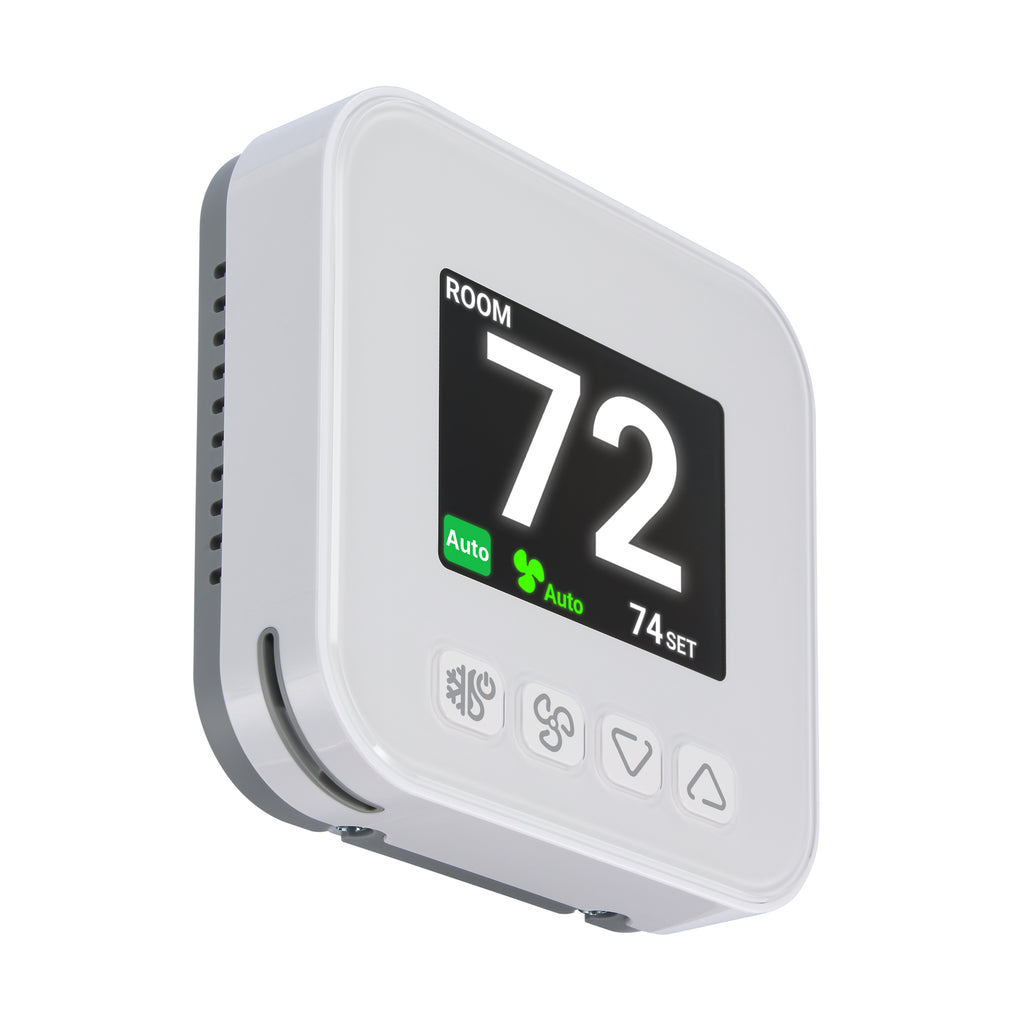

VTech T961NN50 Universal Wired Thermostat, 24V, 2.8" Display, White
SKU: 80-T122-01
Images are for reference only. Please verify the model number and written specifications on your quote or order confirmation. Ordering information
About This Product
The VTech T961NN50 is a universal 24V wired thermostat for hotel guest rooms. It works with PTAC, VTAC, heat pump and conventional gas or electric HVAC systems, and lets you set minimum and maximum guest set points so rooms are not over-heated or over-cooled. A large 2.8" color display and four physical keys keep it simple for guests.
Outfitting multiple rooms? Request a quote and our team will confirm pricing, availability and lead time for your property.
Key Highlights
- Universal 24V wired thermostat – PTAC, VTAC, heat pump and conventional HVAC
- Large 2.8" dimmable color display
- Heat, Cool, Auto changeover and Off modes
- Guest temperature limits to cut energy use
- 3-year limited warranty
Features
- Optional 7-day, 5-1-1, 5-2 or non-programmable schedules
- Fast, secure setup with the free EC Tool Pro app (Android 8.0+ / iOS 15+)
- Filter change reminders
- Mounts on the wall or a junction box
- Supports gas or electric systems on a single 24V transformer (C-wire required)
- Antibacterial plastics tested to inhibit 99.9% of bacteria growth
In the Box
- T961NN50 thermostat
- Mounting plate
- Deco plate
- Hardware
Compatible Parts & Accessories
Specs & Details
OVERVIEW
| Brand | VTech |
| Model | T961NN50 (White) |
| Part Number | 80-T122-01 |
| Type | Universal 24V wired thermostat |
| HVAC System | PTAC / VTAC / Heat Pump / Conventional |
| Fuel Types | Gas, electric |
| Warranty | 3-year limited |
THERMOSTAT
| Dimensions | 3.9 x 3.9 x 1 in (9.9 x 9.9 x 2.26 cm) |
| Mounting | Surface mount or junction box |
| Power | C-wire, 24 VAC 50/60 Hz, 0.5 A |
| Display | 2.8" TFT color (240 x 320) |
| Backlight | Always on or dimming, 4 brightness levels |
| Keys | 4 hard keys |
| Modes | Auto, Cool, Heat, Off |
| Temperature Range | 33–99°F (±1°F) / 1–37°C (±0.5°C), configurable |
| Terminals | R, C, G/GL, W2/O/B, W1/AUX, Y/Y1, Y2/GH |
| Max Stages | PTAC/VTAC: 2H/1C, 2-speed fan; Heat pump: 3H/2C; Conventional: 2H/2C |
| Recommended Wire | 18–24 gauge |
| Programming | 7-day, 5-1-1, 5-2 or non-programmable (EC Tool Pro app) |
| Filter Reminder | Yes |
| Approvals | FCC Part 15B, 15.247, 15.249; UL 60730-1, UL 60730-2-9, UL 62368-1; CAN/CSA-C22.2; RoHS; REACH |
Specifications from VTech; subject to change by the manufacturer.
